Open WIDE 2.0 Chassis
- In stock, ready to ship
Aero, agile, up to 66mm* tires — the fastest bike for the worst gravel. A fast rider position combined with monster tire clearance (55–66mm recommended, 700c).
- U-Turn AC/DC+ aero cargo fork standard on all versions.
- 975g frame weight (raw ready-to-paint, ±3%).
- OPEN BAR cockpit — integrated handlebar/stem, 10 bar-size options from 380–430mm width.
- More relaxed geometry than the UP|UPPER 2.0, ideal for riders who sit a little more upright.

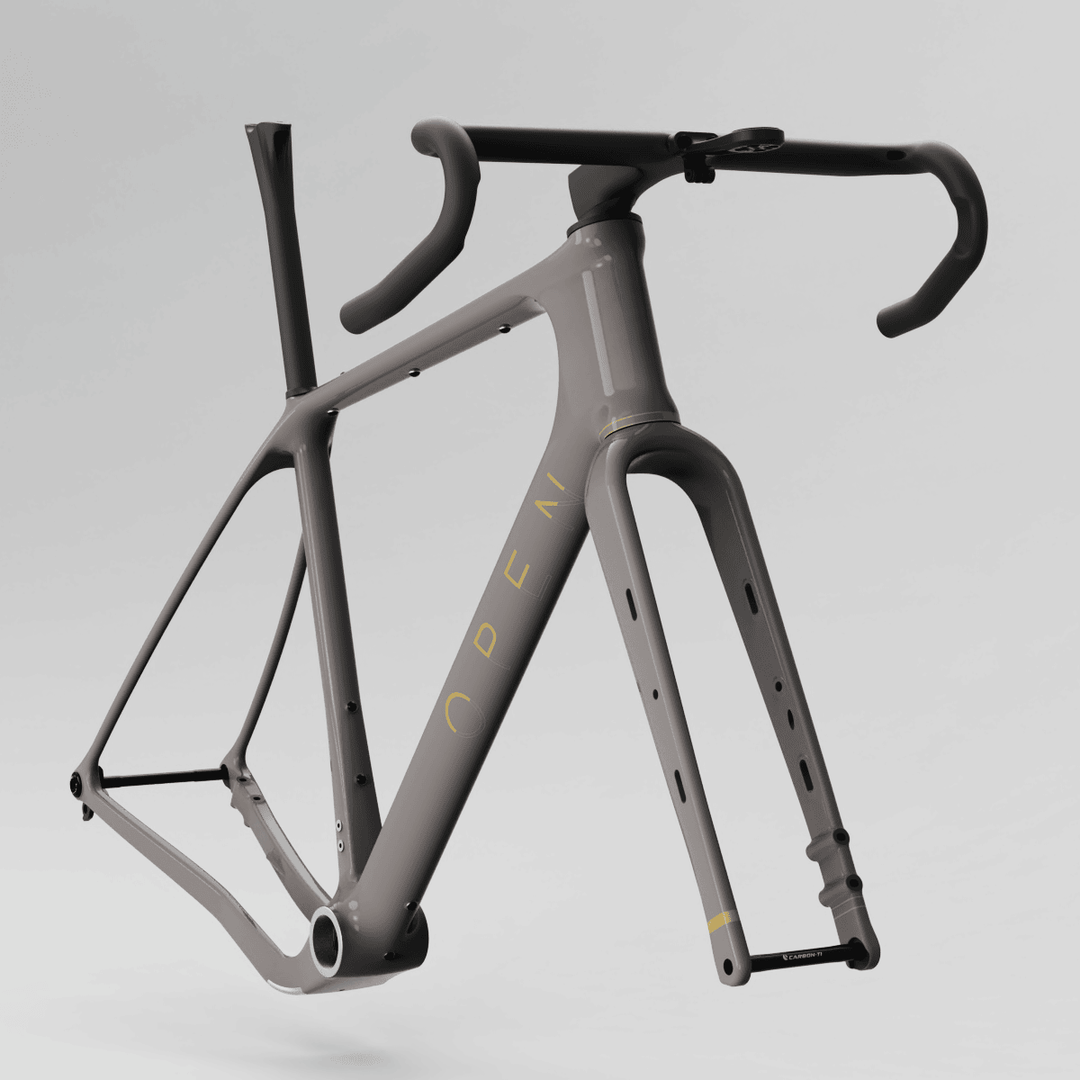

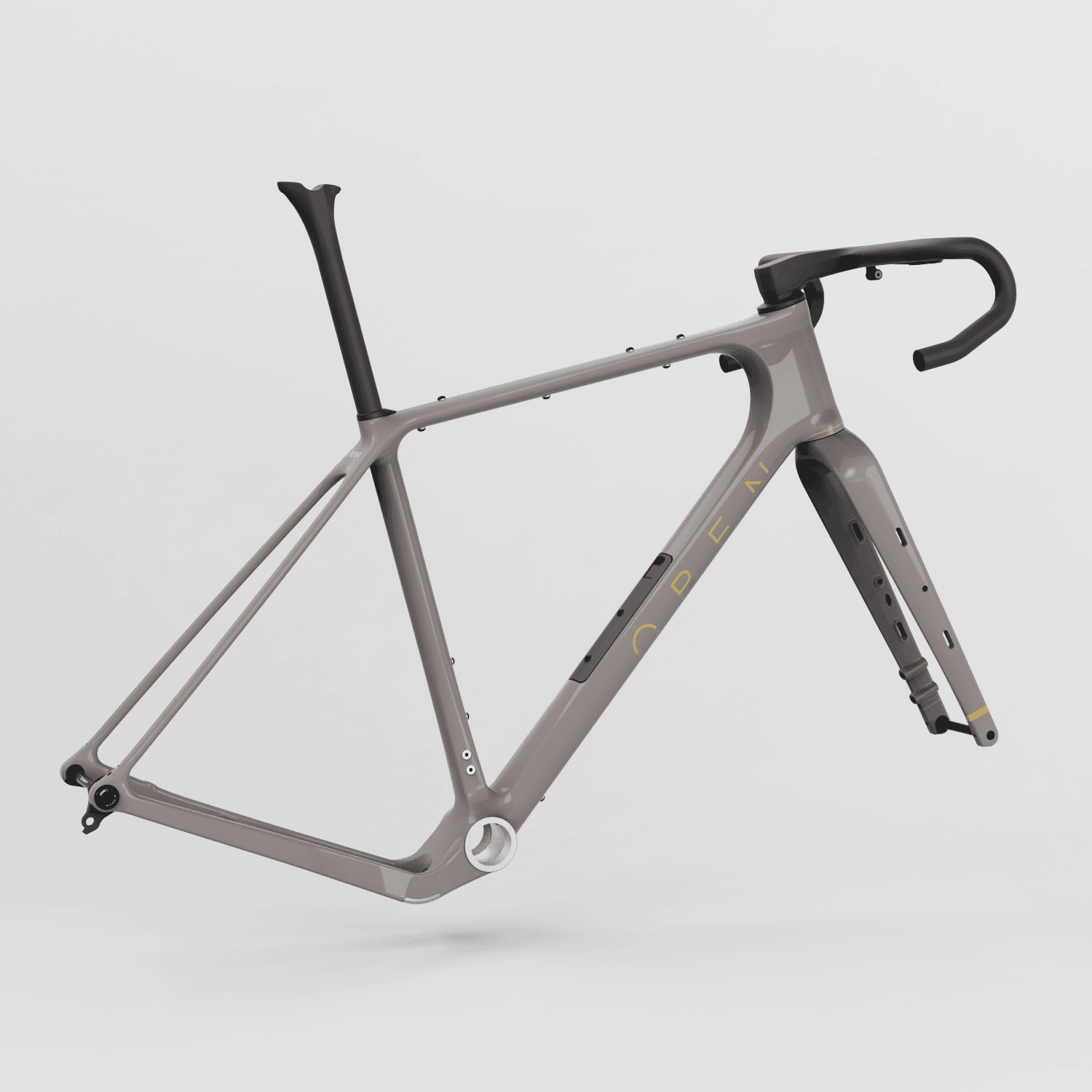

- Chassis includes: frame, fork, headset, seatpost, and integrated handlebar/stem.
Geometry
| Spec | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 540 | 565 | 590 | 615 | 640 |
| Reach | 349 | 361 | 374 | 386 | 398 |
| Head tube angle | 69.0° | 70.5° | 70.5° | 71.5° | 71.5° |
| Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Top tube length | 487 | 508 | 528 | 548 | 567 |
| BB drop | 96 | 91 | 88 | 87 | 86 |
| Wheelbase | 1029 | 1032 | 1055 | 1058 | 1079 |
| Standover height | 718 | 750 | 781 | 804 | 819 |
| Approx. rider height | < 5'5 (< 165cm) | 5'3-5'8 (160-171cm) | 5'6-5'11 (169-180cm) | 5'10-6'3 (178-191cm) | > 6'2 (> 188cm) |
Measurements in mm unless noted. Every size has its own frame geometry and fork offset, tuned for the WIDE 2.0's more relaxed, stable handling. Source: OPEN Cycle.
OPEN BAR Cockpit Geometry
Bar/stem size codes (e.g. 380A) refer to lever width + stem-length range — use with the frame geometry above to choose your cockpit.
| Spec | 380A | 380B | 380C | 380D | 400A | 400B | 420A | 420B | 420C | 430A |
|---|---|---|---|---|---|---|---|---|---|---|
| Bar lever width (mm) | 380 | 380 | 380 | 380 | 400 | 400 | 420 | 420 | 420 | 430 |
| Bar flared width (mm) | 425 | 425 | 425 | 425 | 445 | 445 | 465 | 465 | 465 | 475 |
| Stem length - min (mm) | 60 | 75 | 95 | 115 | 70 | 85 | 80 | 95 | 115 | 90 |
| Stem length - max (mm) | 75 | 90 | 110 | 130 | 85 | 100 | 95 | 110 | 130 | 105 |
| Bar reach (mm) | 78 | 78 | 78 | 78 | 78 | 78 | 78 | 78 | 78 | 78 |
| Classic drop (mm) | 109 | 109 | 109 | 109 | 109 | 109 | 109 | 109 | 109 | 109 |
Source: OPEN Cycle.
