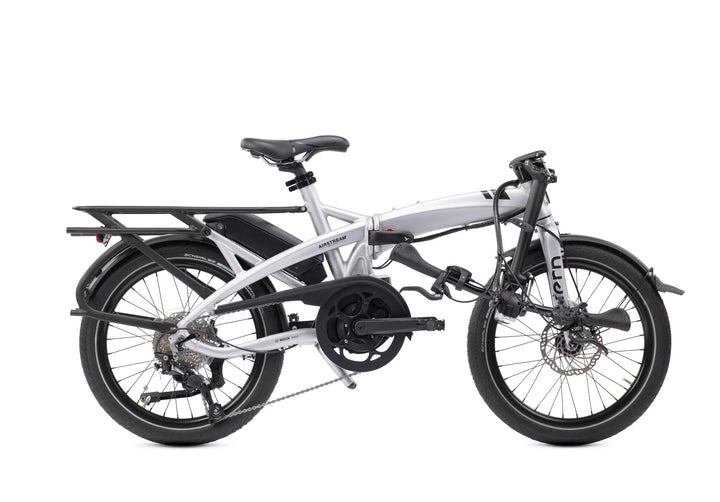

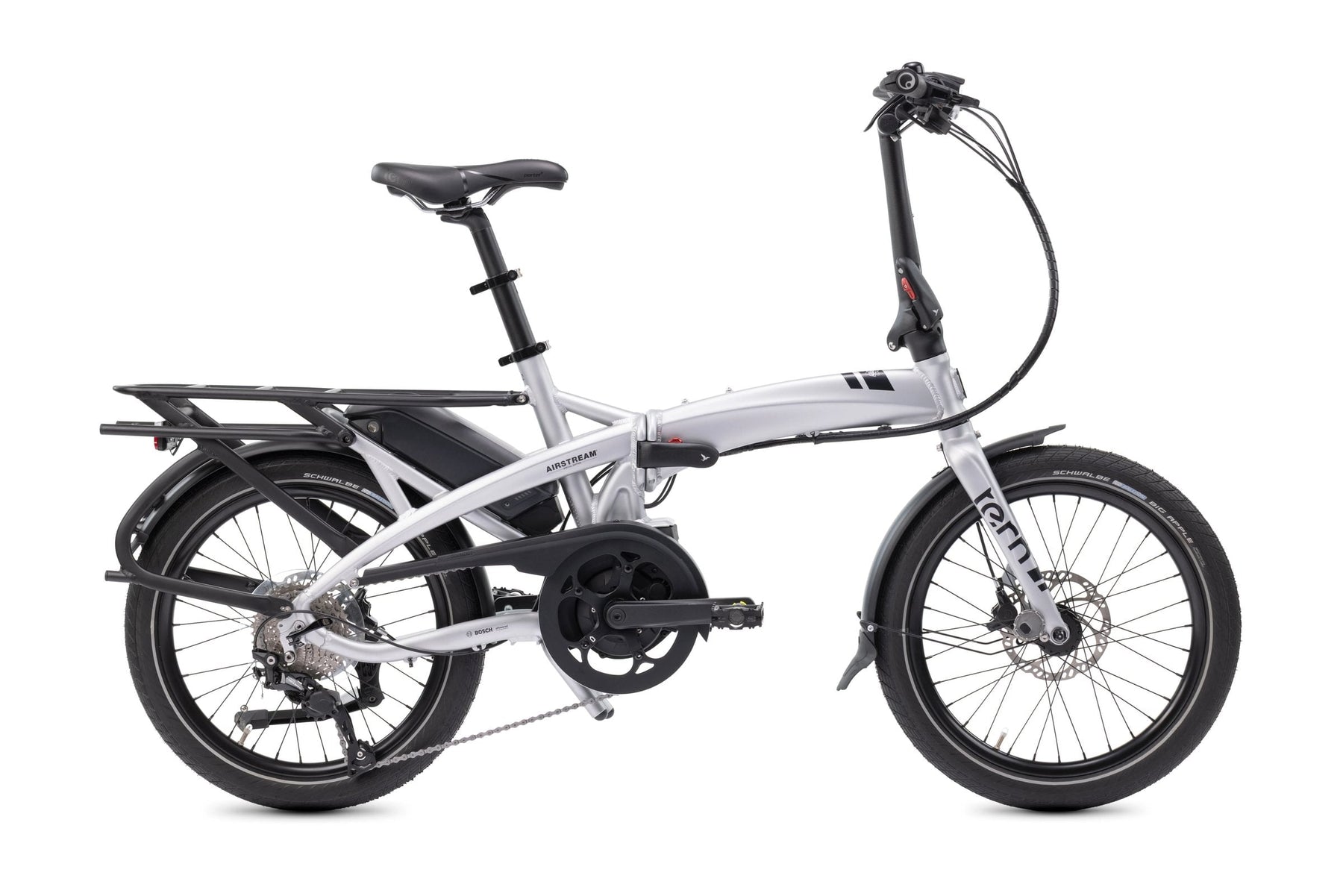

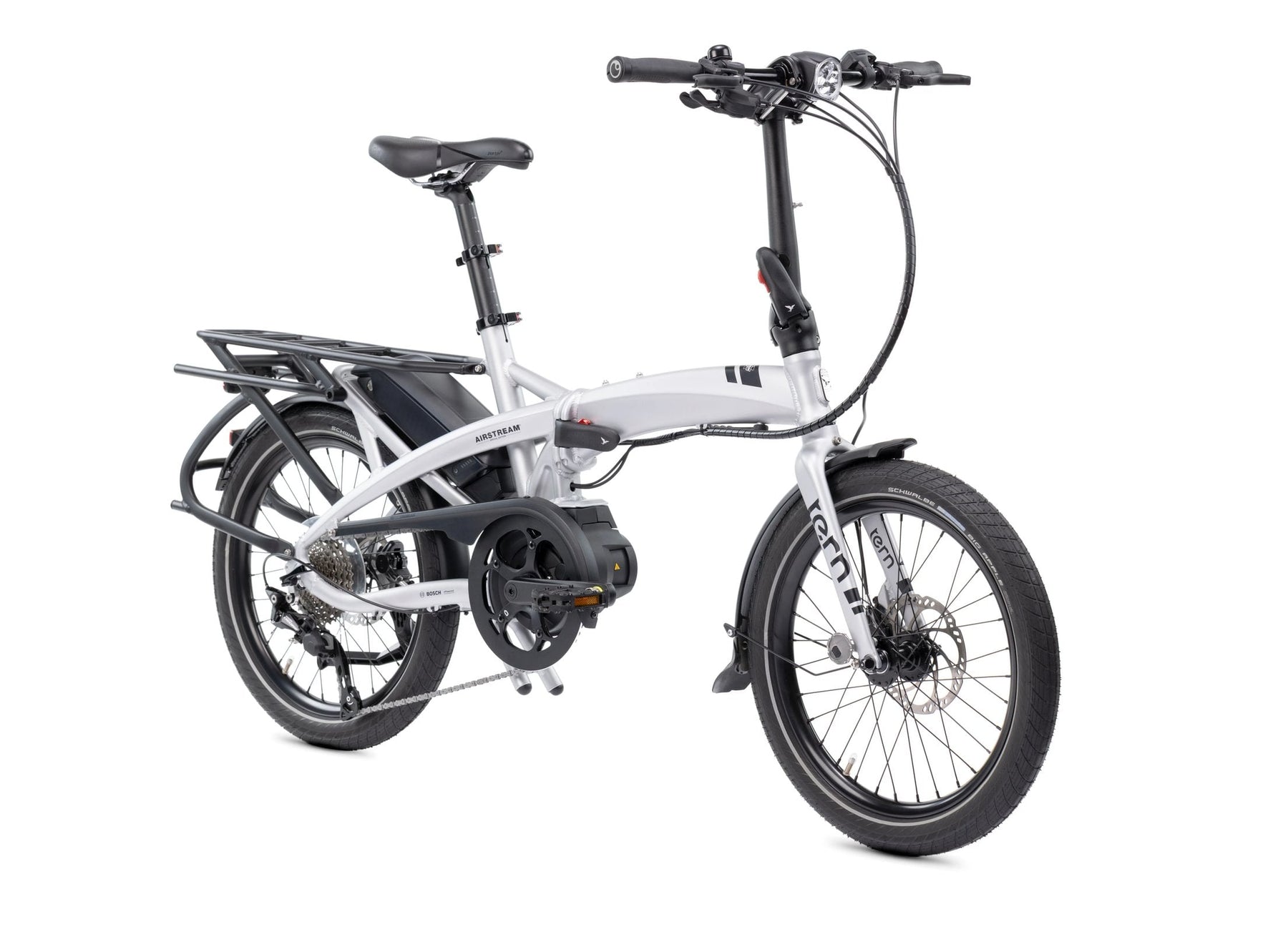

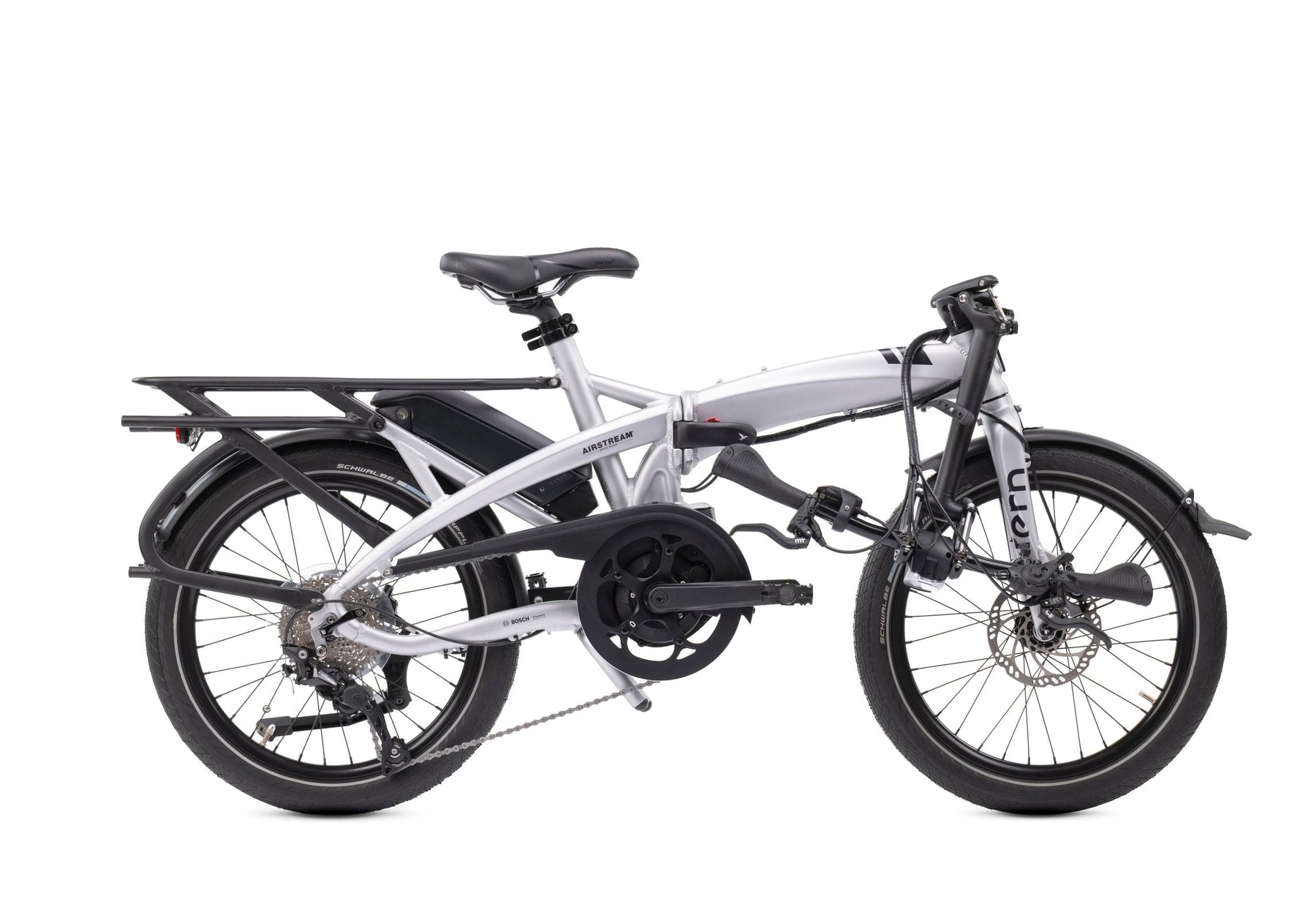

Airstream x Tern Vektron S10 Overview
The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the trailer for your next roadtrip, so you can explore further.
Folds Up for Easy Storage: One of the biggest benefits of the Tern Vektron is that it folds down quickly and easily. This means you can store it in small spaces in your Airstream or unfolded on a Fiamma rack.
Electric Boost for Easier Rides: The Vektron has an electric motor that helps you pedal, so riding is easier and less tiring, especially on hills or longer. It makes getting around while camping much more enjoyable without breaking a sweat.
Comfortable and Adjustable: The bike is designed to fit a wide range of riders, thanks to its adjustable handlebars and seat post. Whether you’re tall or short, you can find a comfortable riding position. Plus, the ride is smooth and stable, even at higher speeds.
Carries Your Stuff: Despite being a folding bike, the Vektron is strong and can carry your essentials, like a backpack, groceries, or even a small child on the back. It’s practical for everyday use during RV season.
Low Maintenance: The Tern Vektron is built with quality components that are durable and require less maintenance, so you spend more time riding and less time worrying about repairs.
Fun and Convenient: Lastly, riding the Vektron is simply fun! The electric boost makes it feel like you have superpowers when you’re cycling, and its portability means you can take it with you almost anywhere.
- A folding electric bike that doesn't ride like one!
- Upgraded to the Bosch BES2 Performance electric drivetrain for 300% more assistance and 65 Nm of torque

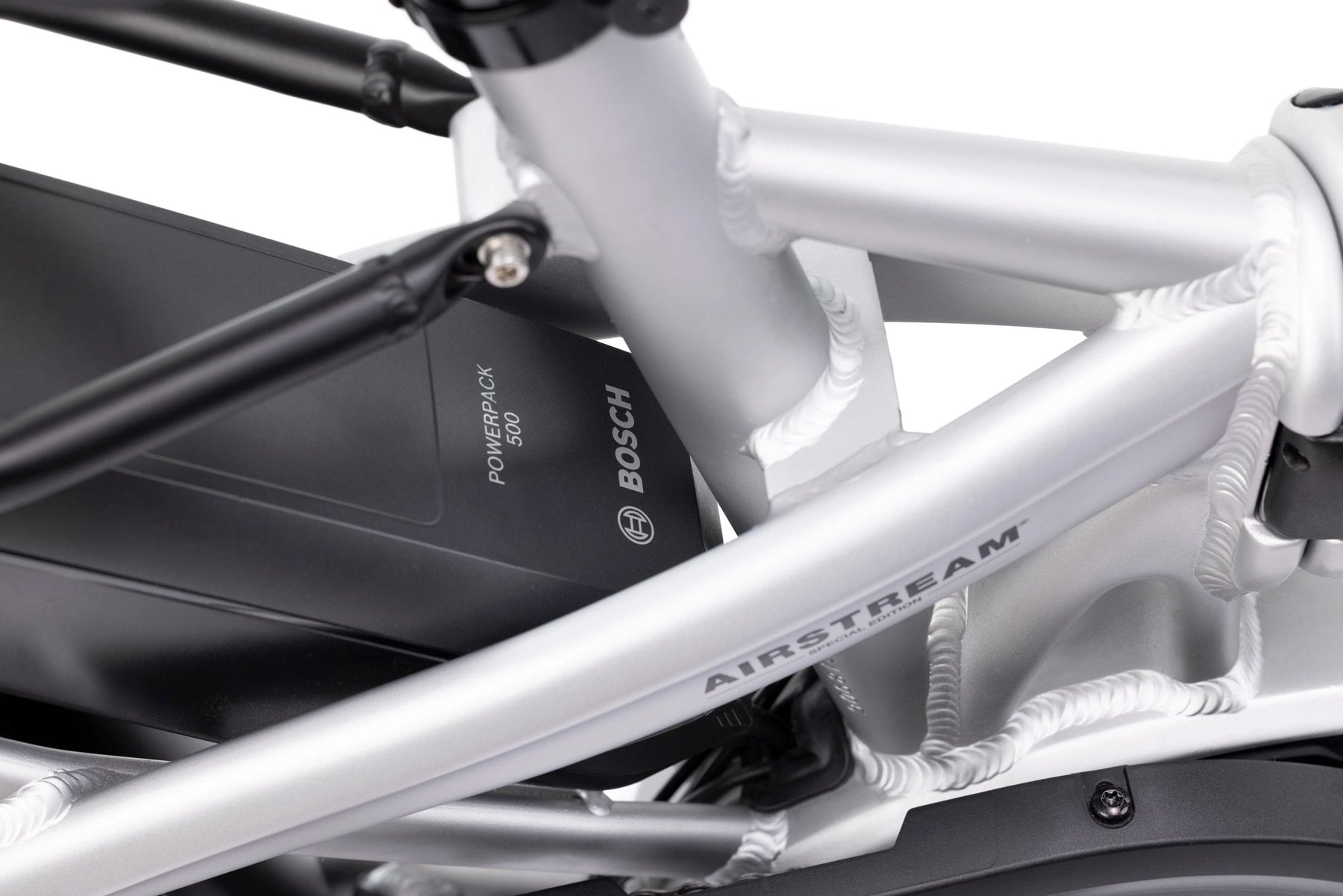

- Updated frame with a reclining battery for a lower center of gravity and better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBEPrüftechnik
- Integrated Atlas Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
- Fits easily on buses, subways and taxis for electric multi-modal commuting
- UL 2849 certified Bosch battery/motor system & third-party tested in compliance with EN 15194, meeting strict eBike safety standards
Note: We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
Component Specifications
Sourced from Tern's published specifications for the Vektron S10 platform that underpins this Airstream collaboration edition. Tern builds the Vektron in one universal frame size.
Frame & Build
| Frame |

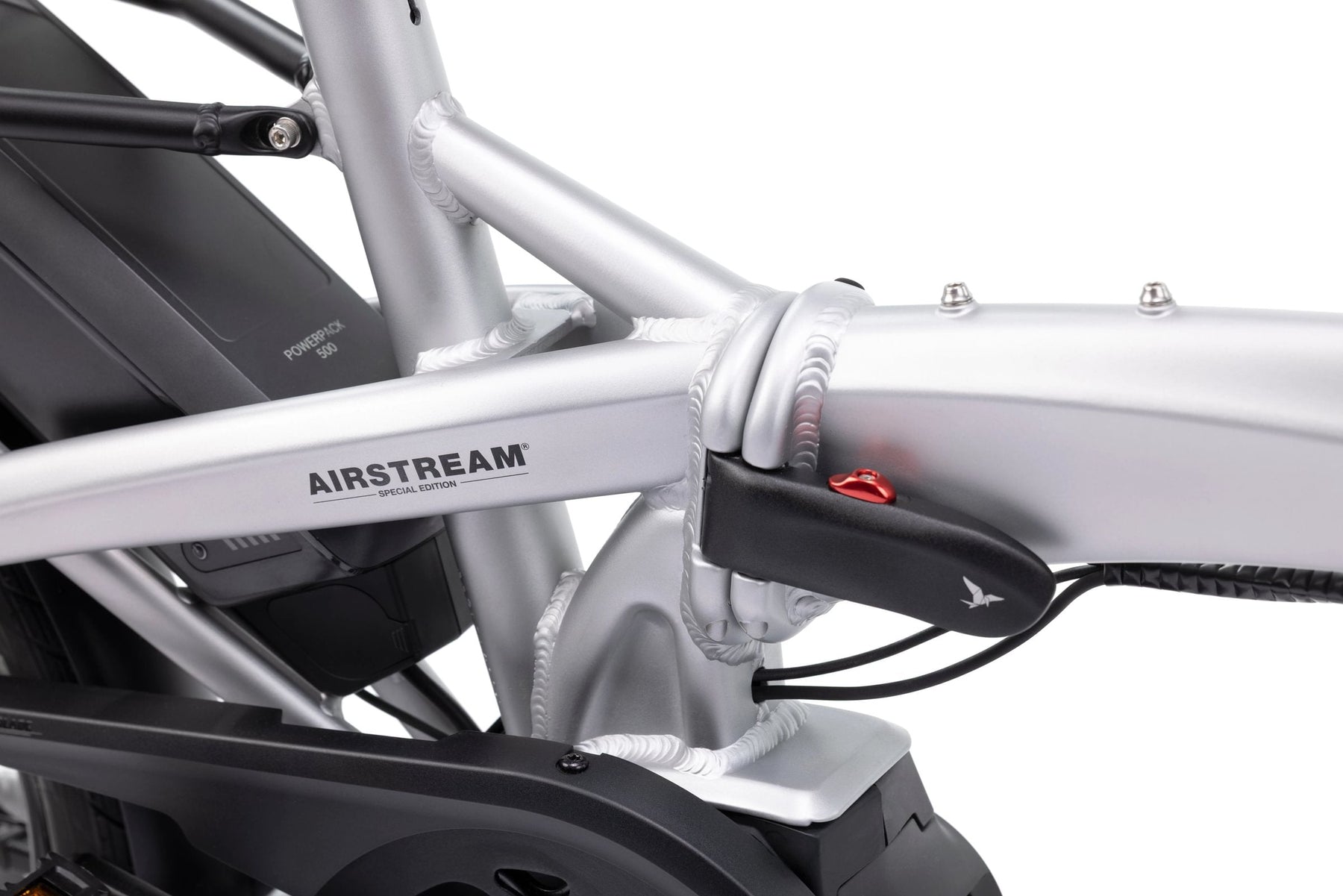

Tern Vektron, hydroformed 7005-AL, OCL+ joint (3 patented technologies) |
| Fork |

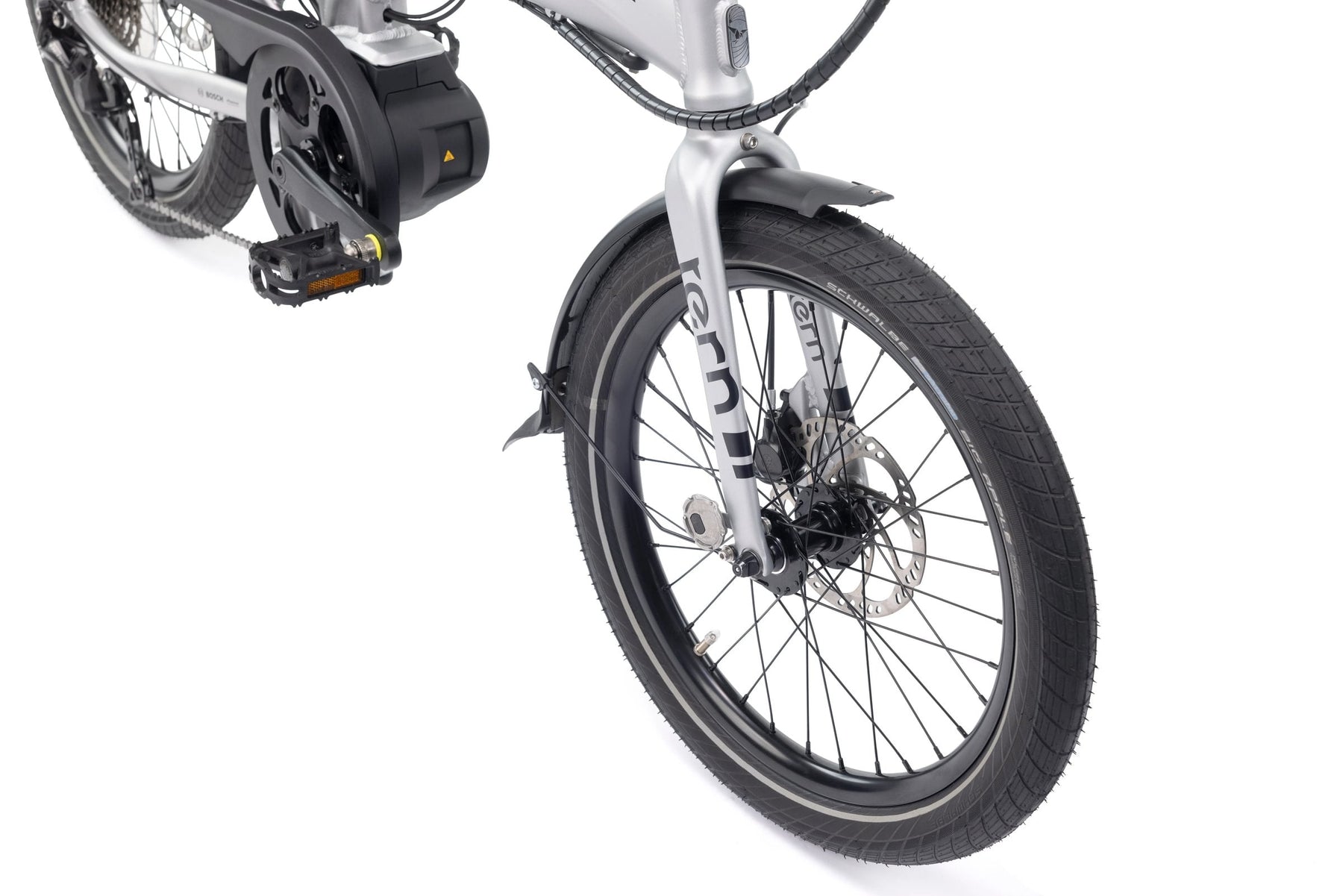

Tern Tarsus, 6061-AL, hydroformed |
| Frame Size |
One size, suggested rider height 147–195 cm (4′10″–6′5″) |
| Weight |
22.1 kg (48.7 lb) |
| Max Gross Vehicle Weight |
125 kg (275.6 lb) |
| Max Rider Weight |
105 kg (231.5 lb) |
Motor & Battery
| Motor |

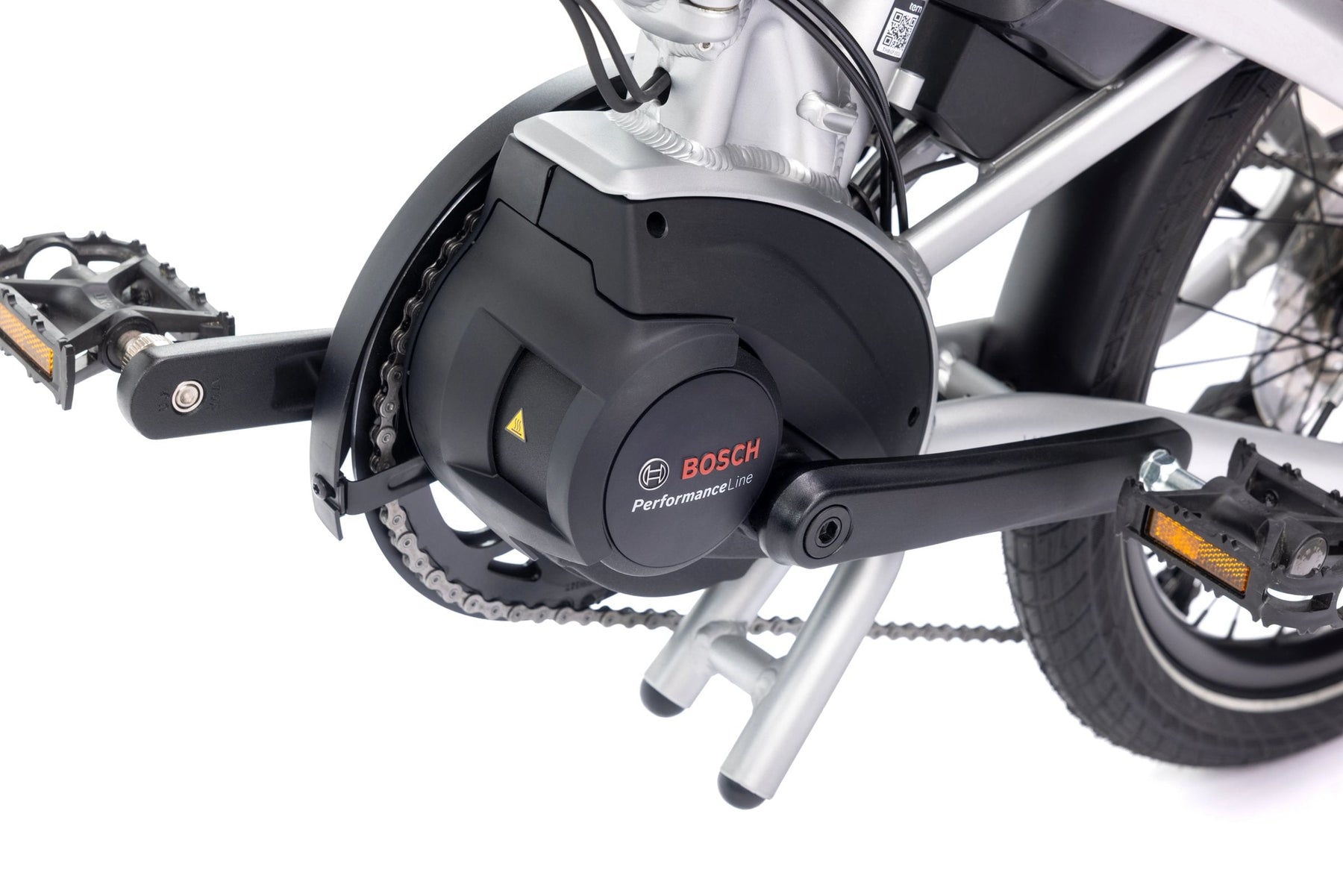

Bosch Performance — 65 Nm torque, 300% assist |
| Battery |
Bosch PowerPack, 400 Wh |
| Range |
53–106 km (34–68 mi) |
| Display |

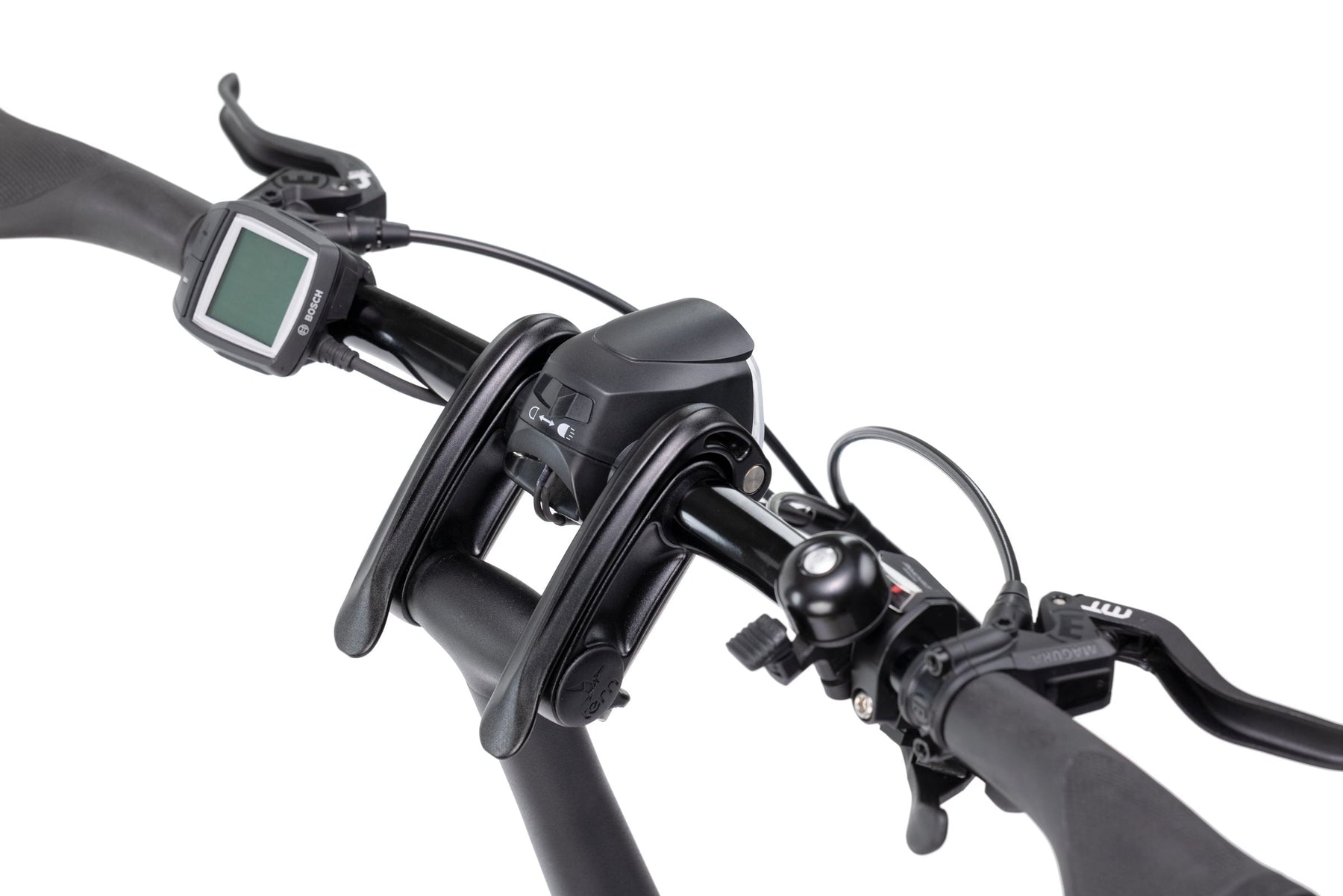

Bosch Purion, 4 selectable assist modes, walk assist |
| Charger |
100–240V, 4A (US spec) |
Drivetrain
| Shifter |
Shimano Deore, 1 x 10-speed |
| Rear Derailleur |
Shimano Deore Shadow+ |
| Cassette |
Shimano, 11–36T, 10-speed |
| Crankset |
Vektron custom, forged 6061-AL |
| Pedals |
MKS EZY |
Brakes
| Front Brake |
Magura MT4, hydraulic disc |
| Rear Brake |
Magura MT4, hydraulic disc |
Wheels & Tires
| Wheel Size |
20-inch (406 mm) |
| Rims |
Kinetix Comp, disc-compatible |
| Tires |
Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex |
| Spokes |
Stainless steel, double-butted |
Cockpit & Accessories
| Stem |
Tern Andros, adjustable, forged construction |
| Handlebar |
Kinetix Comp, double-butted 6061-AL |
| Grips |
Ergon |
| Saddle |
Tern Porter+, patented GripPad design, PrimeGel padding |
| Seatpost |
Tern Telescope, 34.9/30.9 mm, 2014-AL |
| Rack |
Atlas Rack, integrated 8-point mount; compatible with Thule Yepp Maxi & Nexxt Maxi child seats, max load 27 kg |
| Lights |
Tern Valo Direct headlight (190 lumens); Herrmans H-Trace rear light |
Folded Dimensions
| Folded Size (L x W x H) |

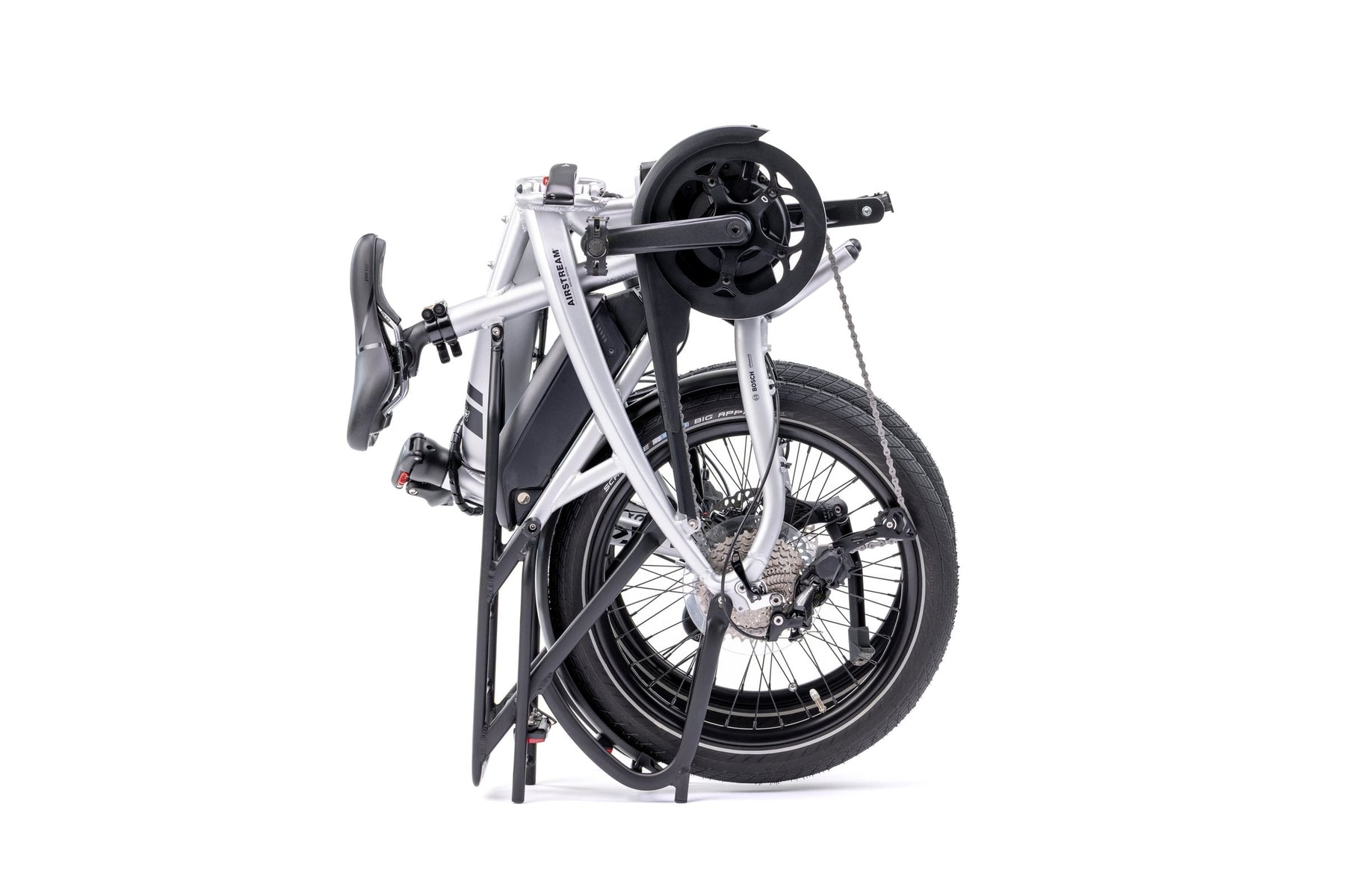

40 x 85.5 x 67.5 cm (15.7 x 33.7 x 26.6 in) |
| Folding Time |
10 seconds |
Geometry
The Vektron is built in a single universal frame size with an adjustable cockpit rather than multiple frame sizes. Tern does not publish a stack/reach/tube-angle geometry chart for this model — folded dimensions and rider height range above are the published fit data. Note: Tern's global spec sheet lists a 25 km/h (EU) max-assist speed; the Bosch Purion unit specified for US-market bikes is governed to 20 mph (28 km/h) per Class 1 e-bike regulations — flagging this regional spec variance for transparency.
