Name: Tern HSD P10e Sport (Gen 3) Electric Bike
Brand: Tern
SKU: 12-91-91
Price: 5499.0 USD
Availability: InStock

Tern HSD P10e Sport (Gen 3) Electric Bike

$5,499.00

Shipping calculated at checkout.

Color

Satin Sky Mist

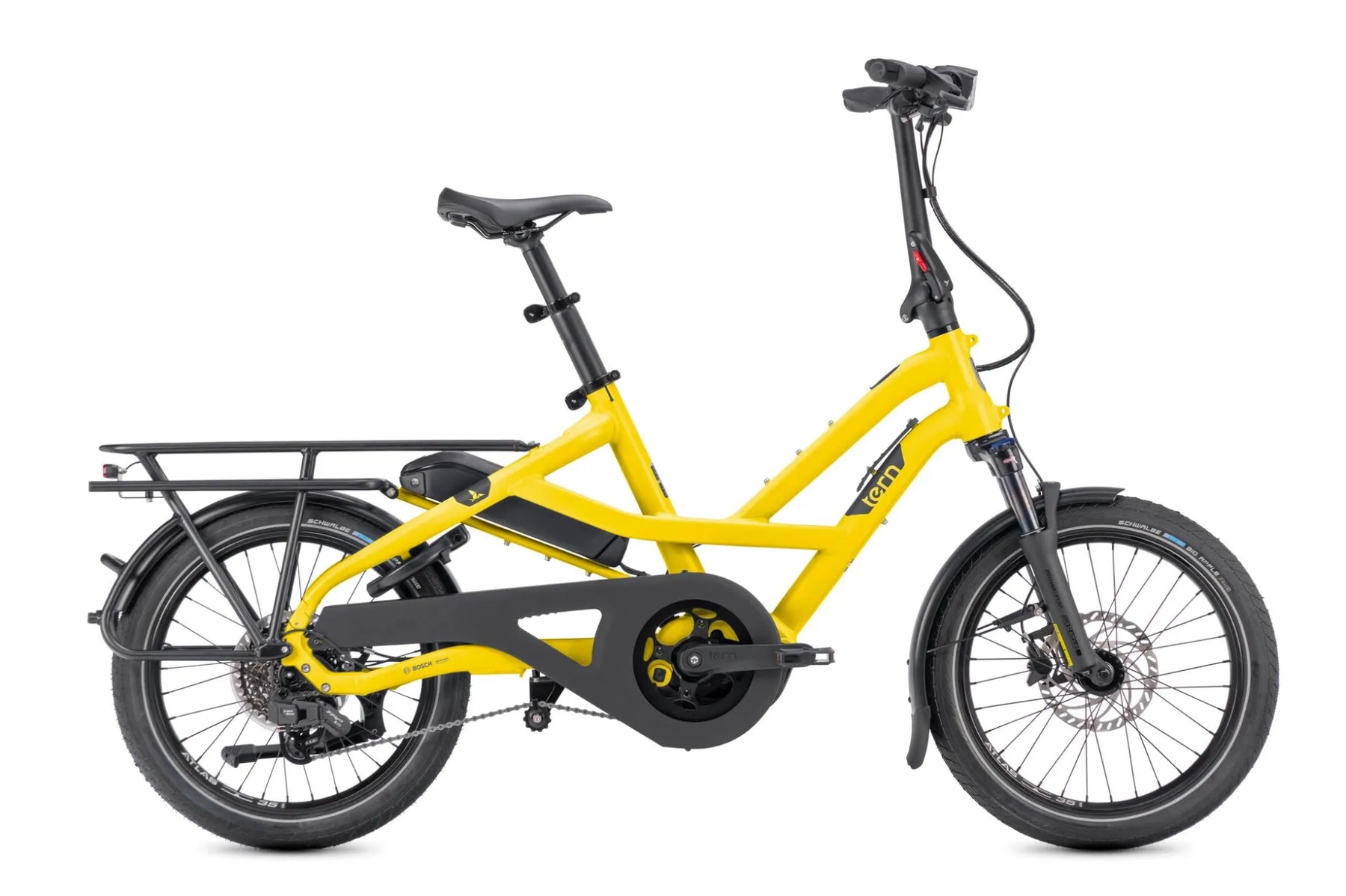

Satin Honey

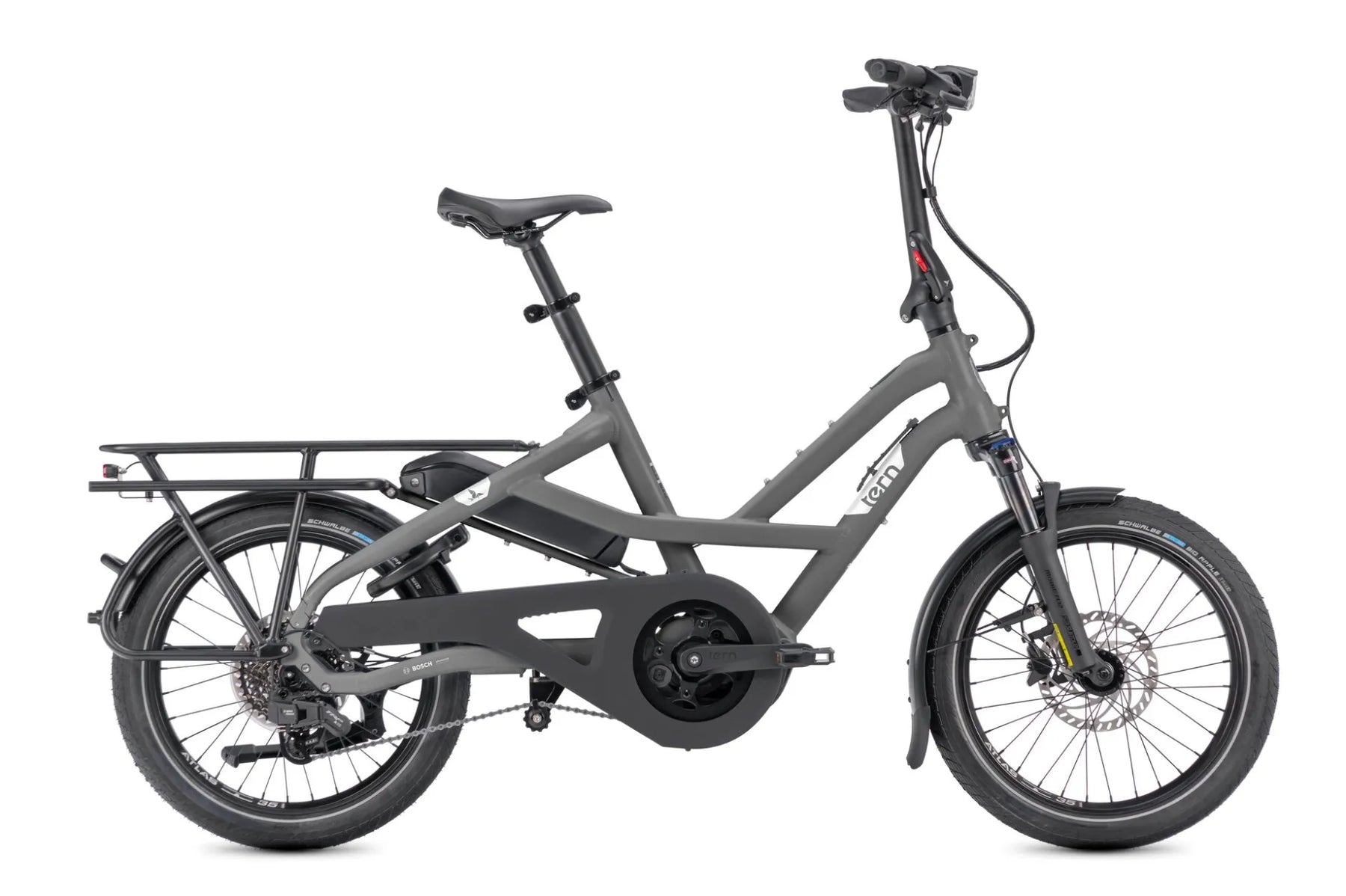

Satin Basalt

In stock, ready to ship
Backordered, shipping soon

What makes it a P10e Sport?

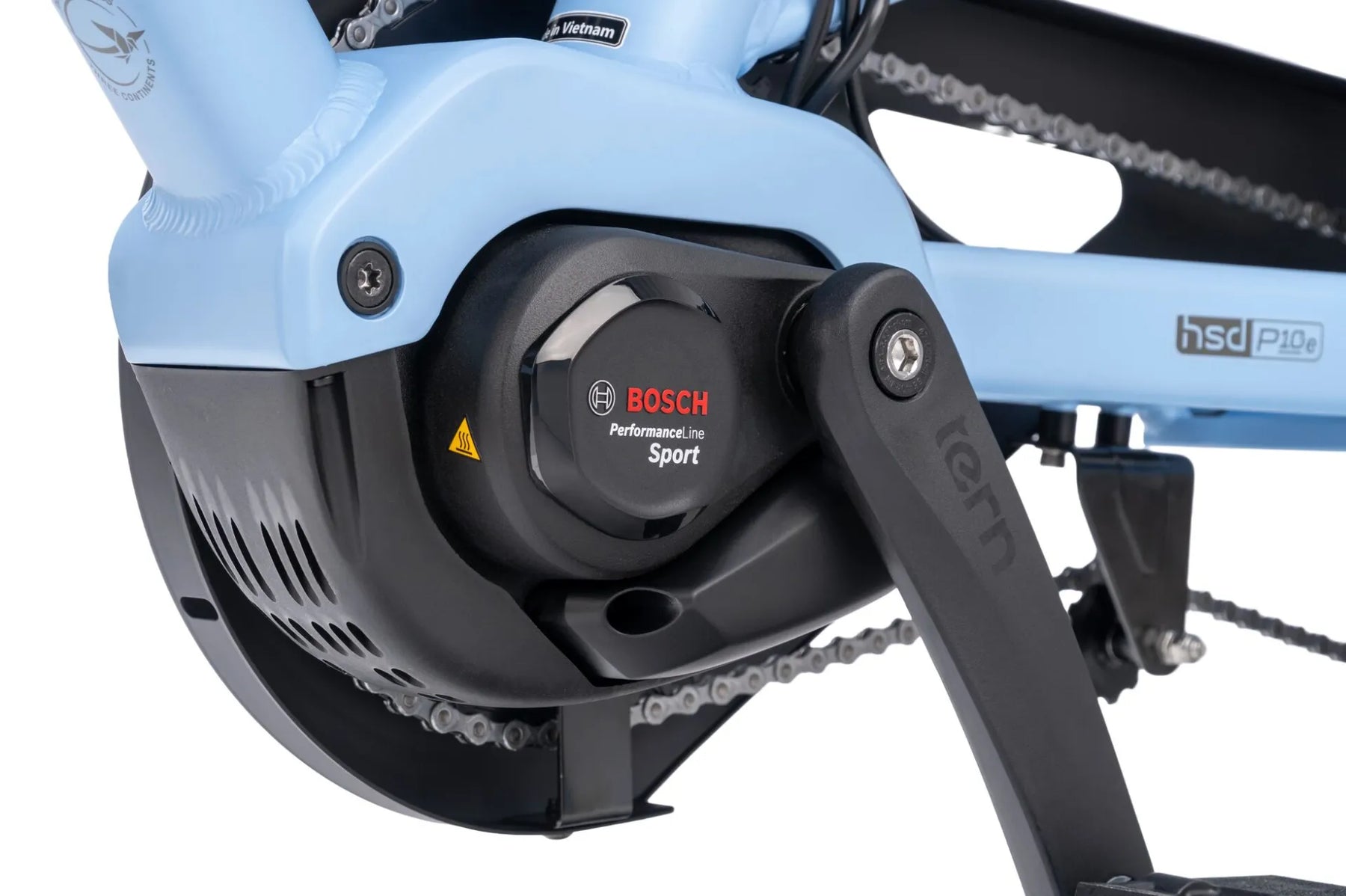

Bosch Performance Sport motor delivers up to 90 Nm of torque and 600% pedal assist with Performance Upgrade 2.0, supporting a max speed of 28 mph (Class 3)
Bosch Smart System delivers a fully connected ride with eBike Lock, ride customization, over-the-air updates, and more

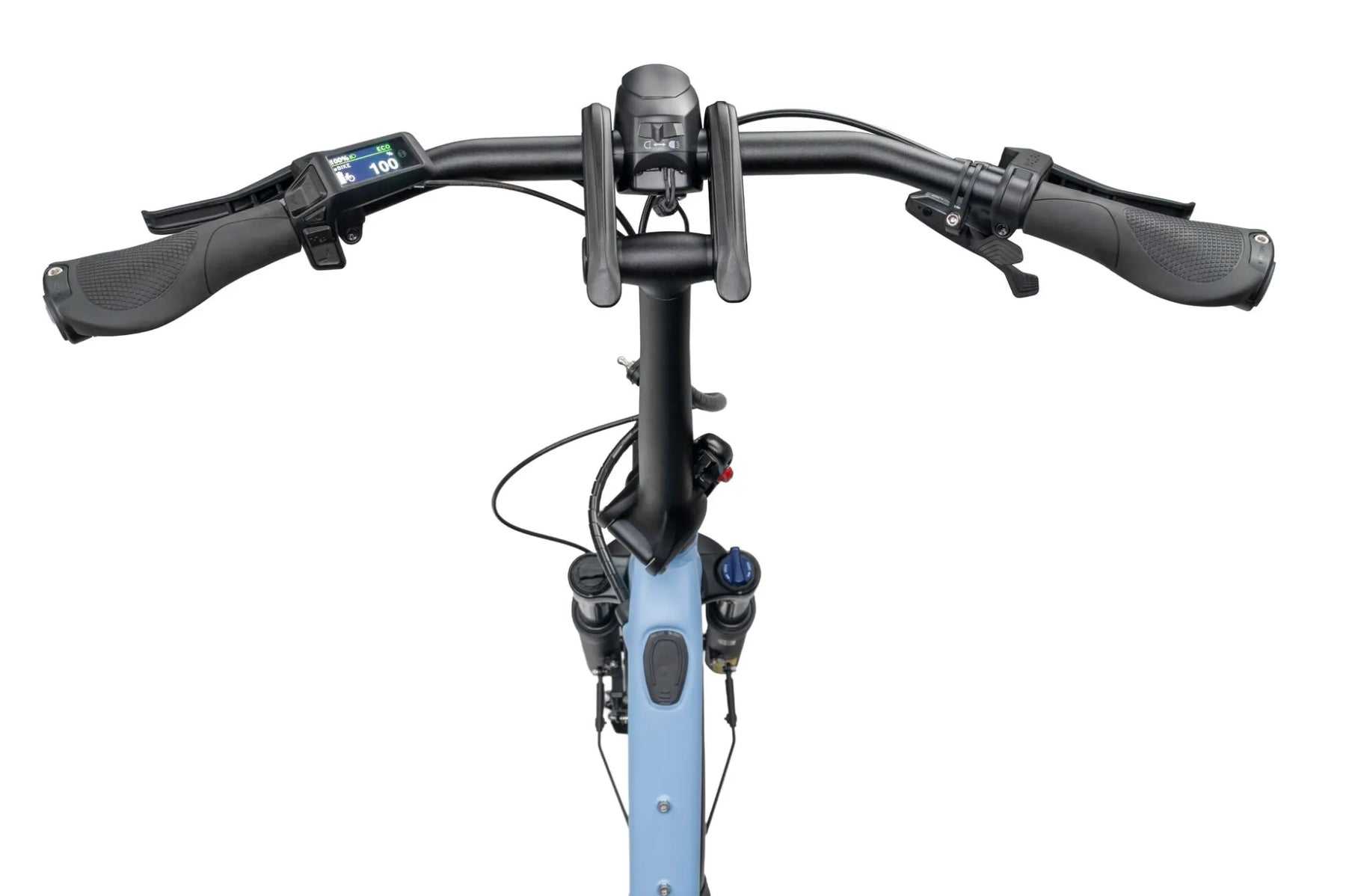

Minimal, compact Purion 200 display lets you control all features with your thumb and keeps the cockpit clutter-free
Bosch eShift automatically shifts for you based on your preferred cadence and starting gear, with a wireless design that reduces maintenance

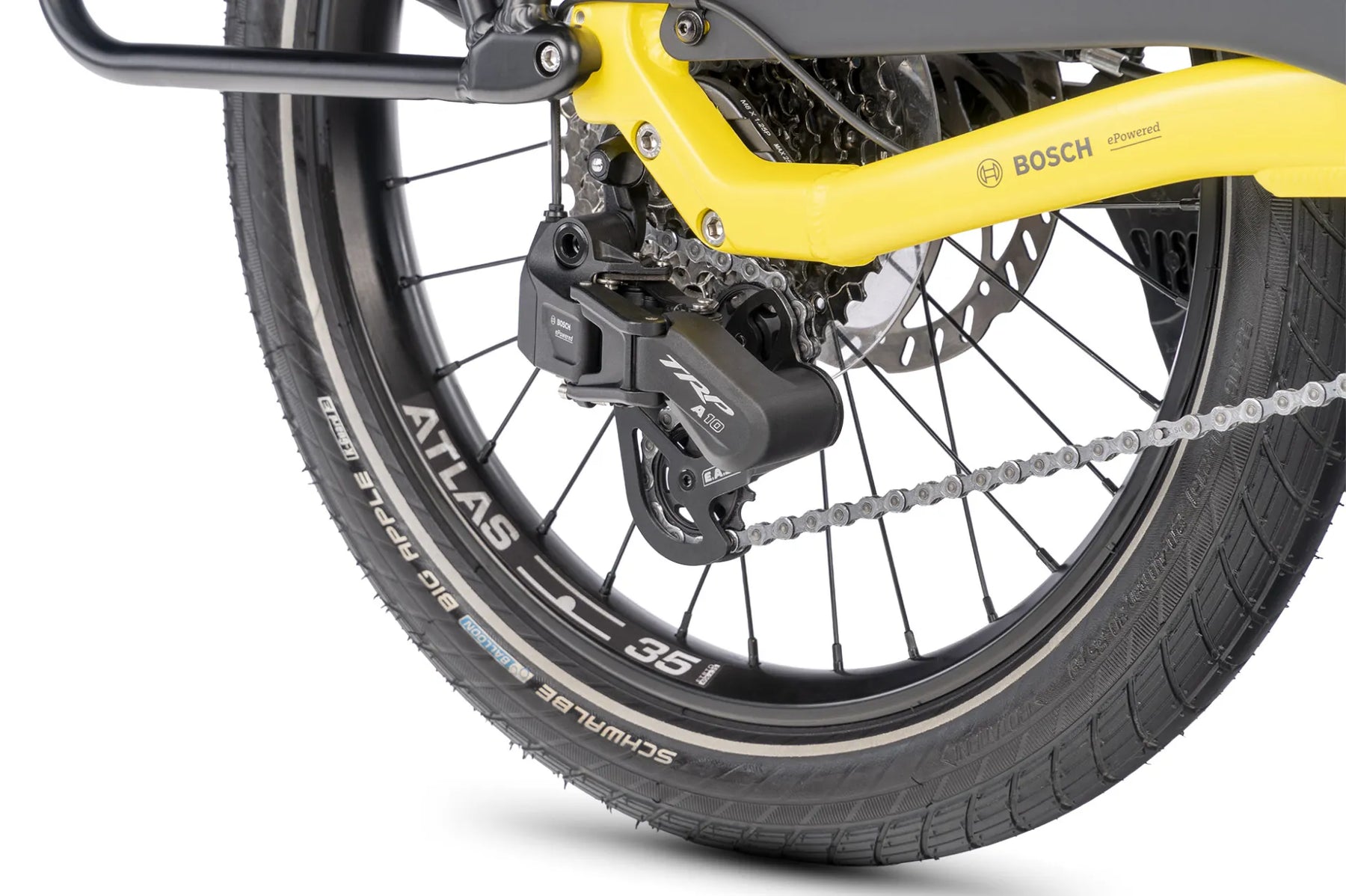

Custom TRP E.A.S.I. A10, 10-speed derailleur

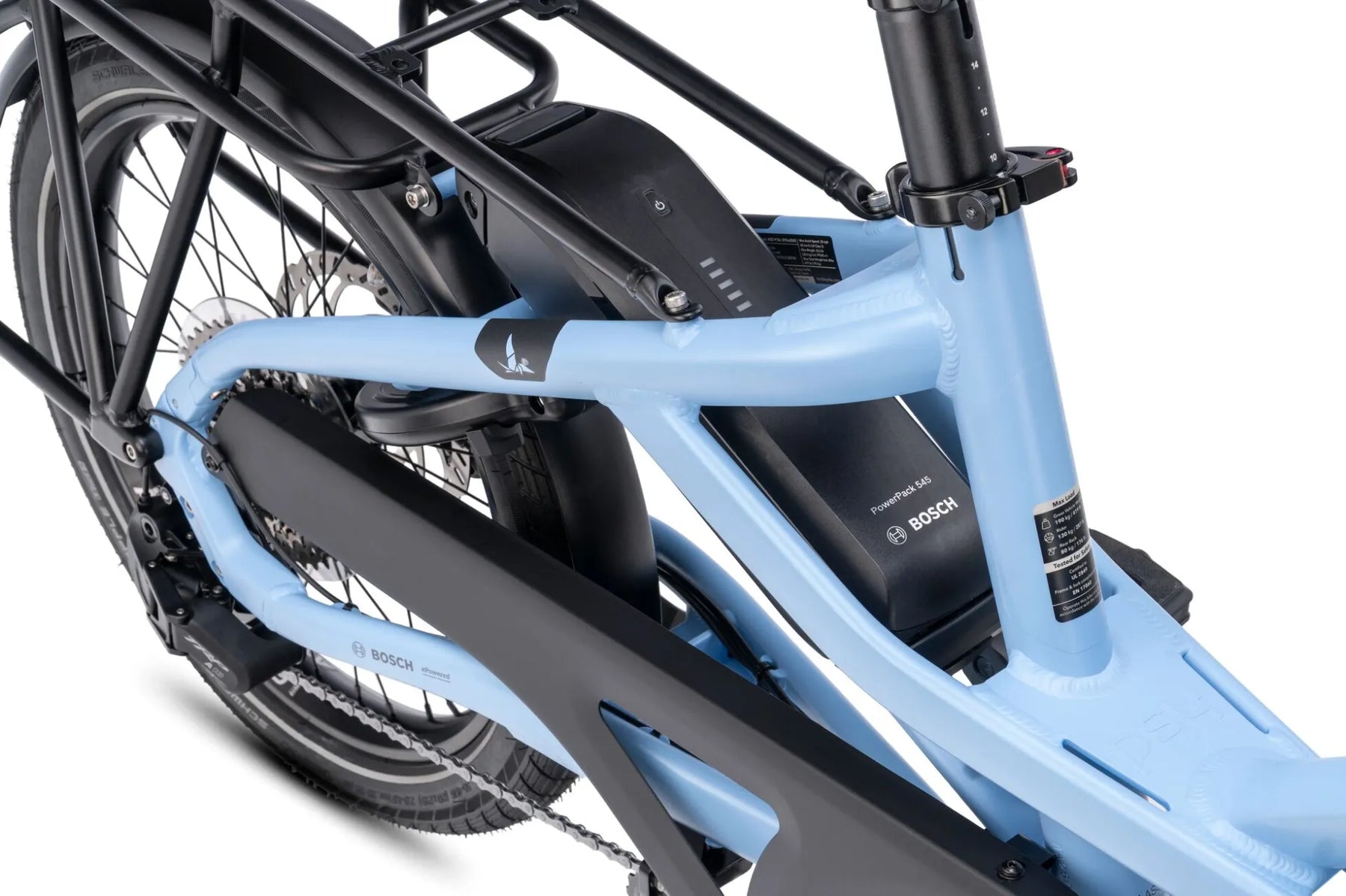

Bosch PowerPack 545 battery provides long range of up to 67 mi (107 km)

HSD Highlights

Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 419 lb (190 kg) with a rear rack load capacity of 176 lb (80 kg)
Optimized frame geometry, a longer wheelbase, and a low center of gravity keep rides stable, even with heavy loads or at higher speeds

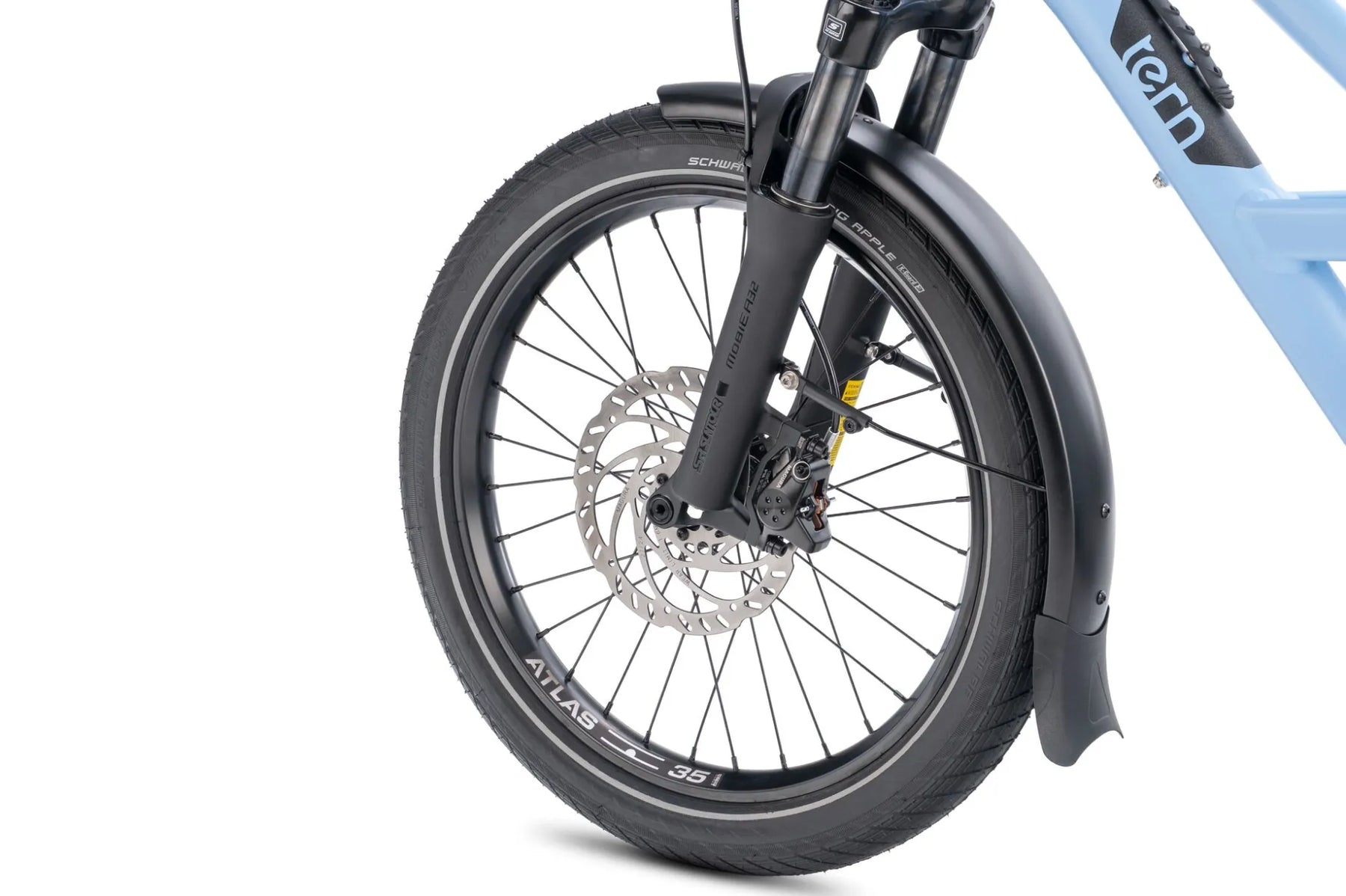

Magura hydraulic disc brakes deliver precise and responsive stopping power
Custom Suntour suspension fork absorbs road shocks for a smoother, more comfortable ride
Easy-sharing cockpit adjusts without tools to fit riders 4'11" - 6'7" (150 - 200 cm) tall and weighing up to 287 lb (130 kg)
Third-party tested and certified to UL 2849 (complete e-bike system) and EN 17860 (frame and fork, 419 lb) for proven cargo e-bike safety and reliability

Component Specifications

Frame & Fork

Frame	Tern HSD, 6061-AL, patented design, EN17860 certified (190 kg)
Fork	Suntour custom for Tern, 32 mm stanchions, thru-axle, EN17860 certified (190 kg)
Frame Size	One size
Bike Weight	28.4 kg (62.6 lb)

Drivetrain & Motor

Motor	Bosch Performance Sport (BDU34), 90 Nm torque, 600% assist w/ Performance Upgrade 2.0, Class 3, max 28 mph
Battery	Bosch PowerPack 545 Wh
Range	56-107 km (35-67 mi)
Display / Control	Bosch Purion 200, Bosch eBike Flow app connectivity, electronic bike lock
Shifter / Derailleur	TRP E.A.S.I. A10 wireless e-shifter w/ Bosch eShift, 10-speed, built for Tern
Cassette	Shimano CUES Linkglide 11-39T, 10-speed
Chain	KMC eGlideS, 10-speed, EPT corrosion-resistant coating
Crankset	Tern HSD
Gear Range	27"-97" (2.18-7.72 m)

Brakes

Front & Rear

Magura hydraulic disc, 180 mm rotor

Wheels & Tires

Wheels	Tern Atlas H cargo wheels, Novatec sealed-bearing thru-axle hubs
Tires	Schwalbe Big Apple, 55-406, puncture protection, Reflex

Capacity & Weight

Max Gross Vehicle Weight	190 kg (418.9 lb)
Max Rider Weight	130 kg (286.6 lb)
Rear Rack Capacity	80 kg (176 lb)
Suggested Rider Height	150-200 cm (4'11"-6'7")

Geometry

Overall Dimensions	174 x 112.5 x 68 cm
Wheelbase	119 cm (46.9 in)
Standover Height	48.5 cm (19.1 in)
Seatpost to Handlebar (Reach)	52-59 cm (20.5-23.2 in)
Saddle to Pedal	68-101 cm (26.8-39.8 in)

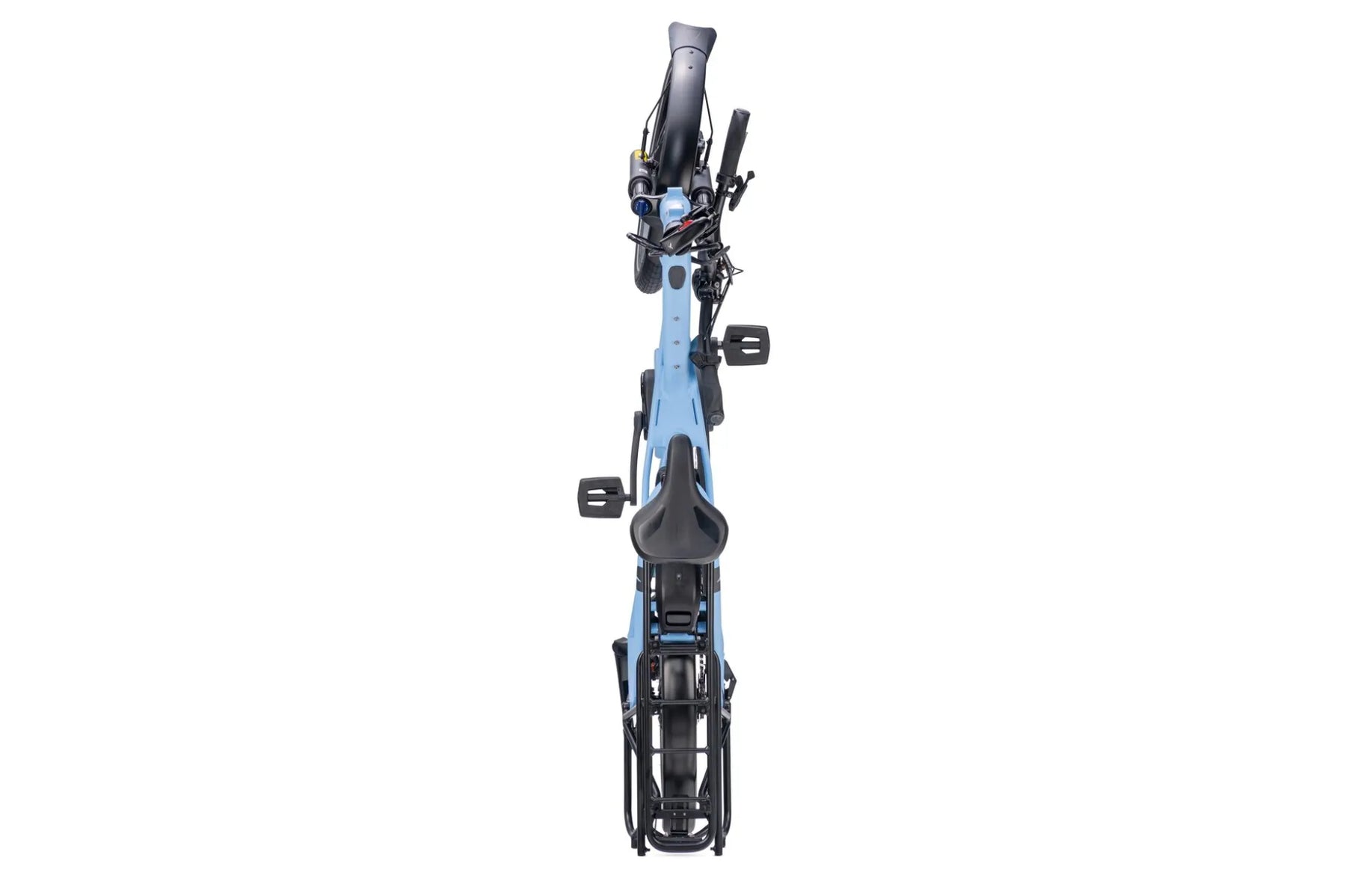

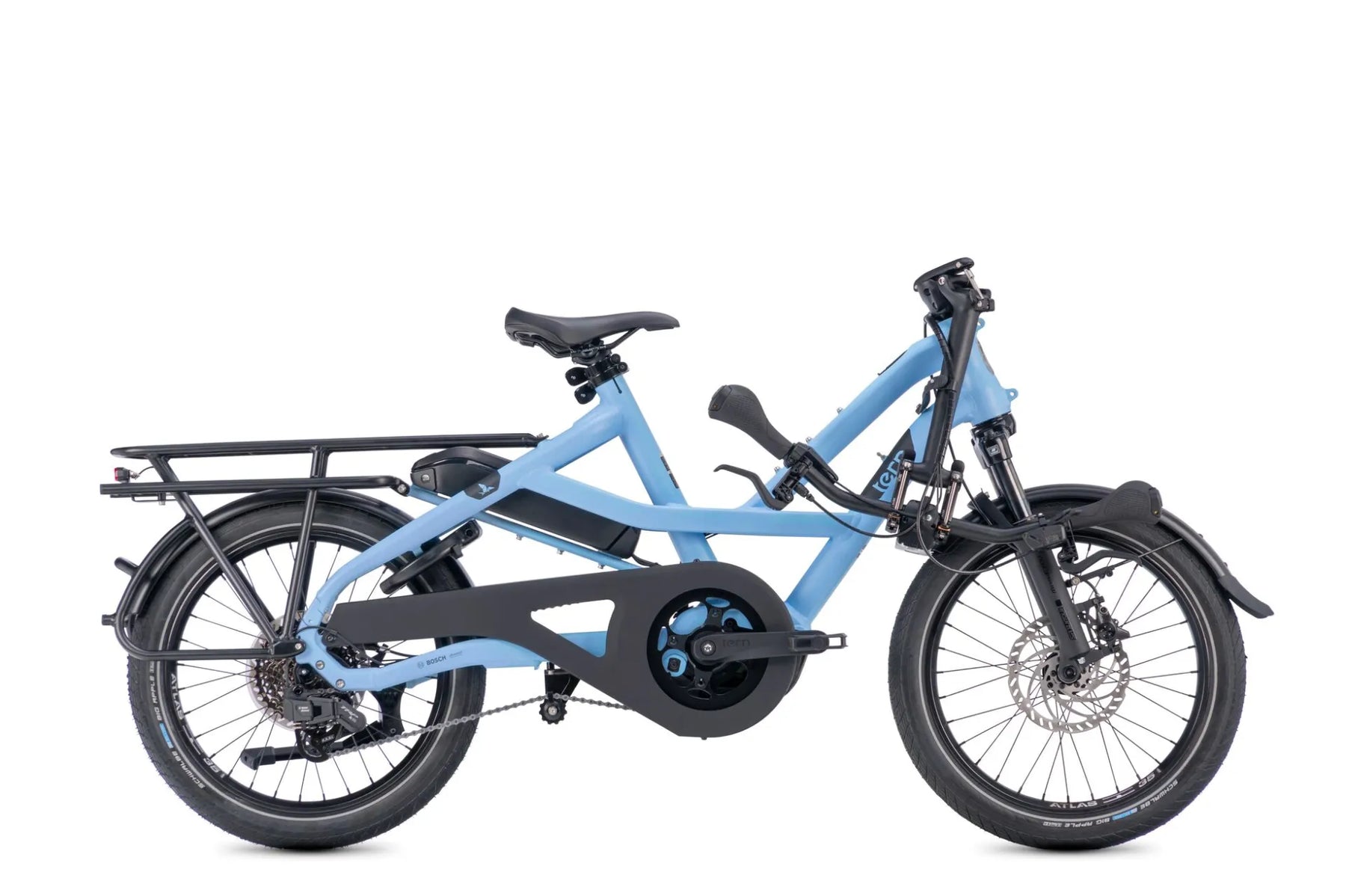

Folded Dimensions	166 x 42 x 87 cm (5-second fold)
