What makes it a P5i?
- Bosch Performance Line motor delivers up to 75 Nm of torque, boosting your pedaling power by up to 340%
- Bosch Smart System delivers a fully connected ride with eBike Lock, ride customization, over-the-air updates, and more
- Minimal, compact Purion 200 display lets you control all features with your thumb and keeps the cockpit clutter-free
- Shimano Nexus 5 internally geared hub with 263% gear range and twist shifter
- Silent, smooth, and virtually maintenance-free Gates Belt Drive
- Bosch PowerPack 545 battery provides long range of up to 67 mi (107 km)
HSD Highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 419 lb (190 kg) with a rear rack load capacity of 176 lb (80 kg)
- Optimized frame geometry, a longer wheelbase, and a low center of gravity keep rides stable, even with heavy loads or at higher speeds
- Magura hydraulic disc brakes deliver precise and responsive stopping power
- Custom Suntour suspension fork absorbs road shocks for a smoother, more comfortable ride
- Easy-sharing cockpit adjusts without tools to fit riders 4'11" - 6'7" (150 - 200 cm) tall and weighing up to 287 lb (130 kg)
- Third-party tested and certified to UL 2849 (complete e-bike system) and EN 17860 (frame and fork, 419 lb) for proven cargo e-bike safety and reliability
Component Specifications
Frame & Fork
| Frame | Tern HSD, 6061-AL, patented design, EN17860 certified (190 kg) |
| Fork | Suntour custom for Tern, 32 mm stanchions, thru-axle |
| Frame Size | One size |
| Bike Weight | 28.1 kg (61.9 lb) |
Drivetrain & Motor
| Motor | Bosch Performance Line (BDU34), 75 Nm torque, 340% assist, max 20 mph (US) |
| Battery | Bosch PowerPack 545 Wh |
| Range | 56-107 km (35-67 mi) |
| Display / Control | Bosch Purion 200, app connectivity, electronic bike lock |
| Transmission | Shimano Nexus 5 internally geared hub with twist shifter |
| Gear Range | 263% (38"-99") |
| Belt Drive | Gates Carbon Drive CDX |
Brakes
| Front & Rear | Magura hydraulic disc, 180 mm rotor |
Wheels & Tires
| Wheels | Tern Atlas H cargo wheels, Novatec front hub |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
Capacity & Weight
| Max Gross Vehicle Weight | 190 kg (418.9 lb) |
| Max Rider Weight | 130 kg (286.6 lb) |
| Rear Rack Capacity | 80 kg (176 lb) |
| Suggested Rider Height | 150-200 cm (4'11"-6'7") |
Geometry
| Overall Dimensions | 174 x 112.5 x 68 cm (68.5 x 44.3 x 26.8 in) |
| Wheelbase | 119 cm (46.9 in) |
| Standover Height | 48.5 cm (19.1 in) |
| Seatpost to Handlebar (Reach) | 52-59 cm (20.5-23.2 in) |
| Saddle to Pedal | 68-101 cm (26.8-39.8 in) |

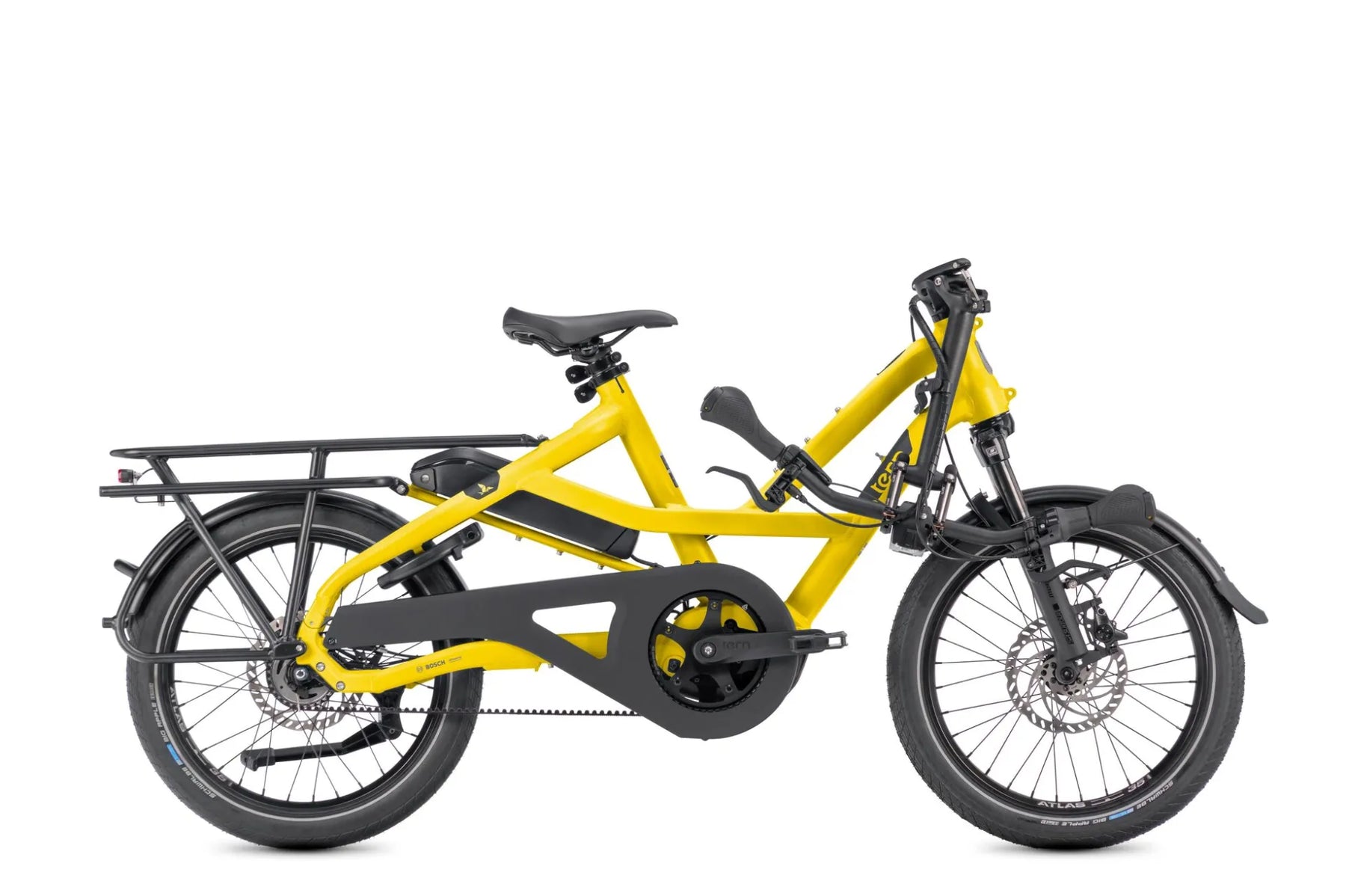

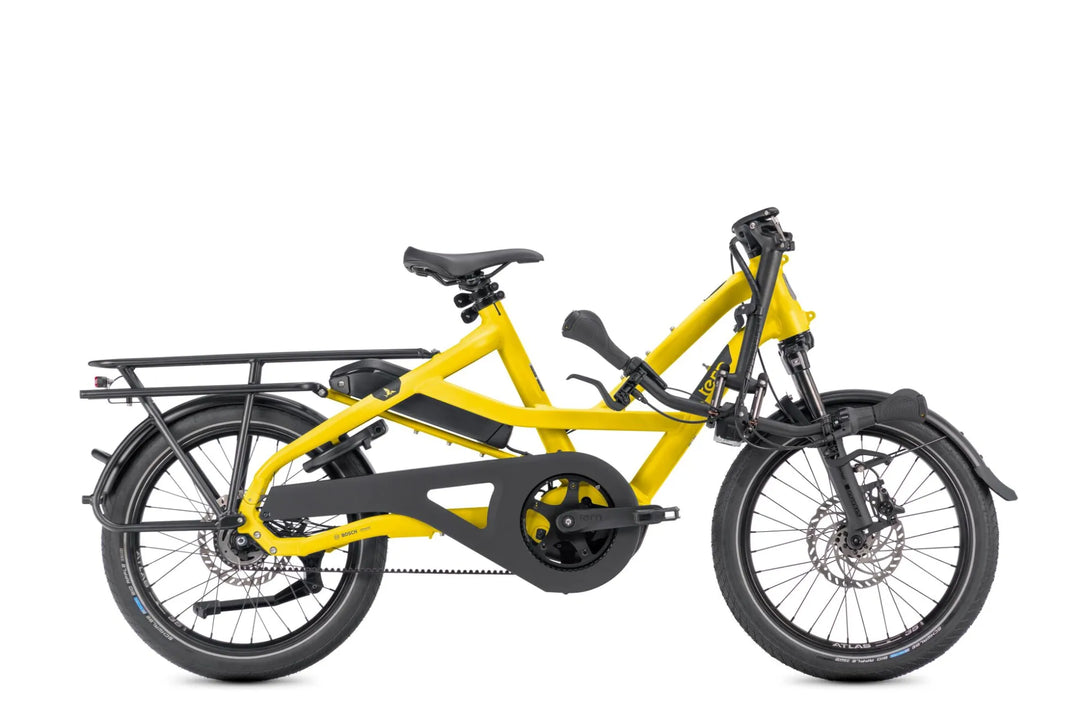

| Folded Dimensions | 166 x 42 x 87 cm (5-second fold) |
