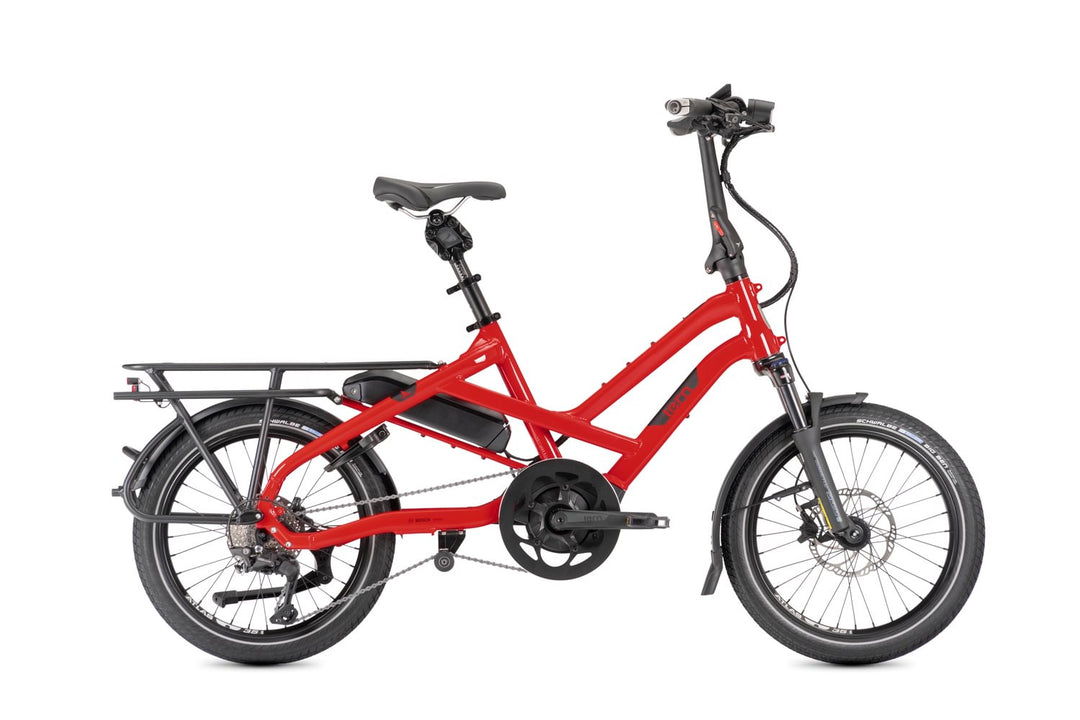

Name: Tern HSD S11 (Gen 2) Electric Bike
Brand: Tern
SKU: 12-91-85
Price: 4499.0 USD
Availability: InStock

$4,499.00

Shipping calculated at checkout.

Color

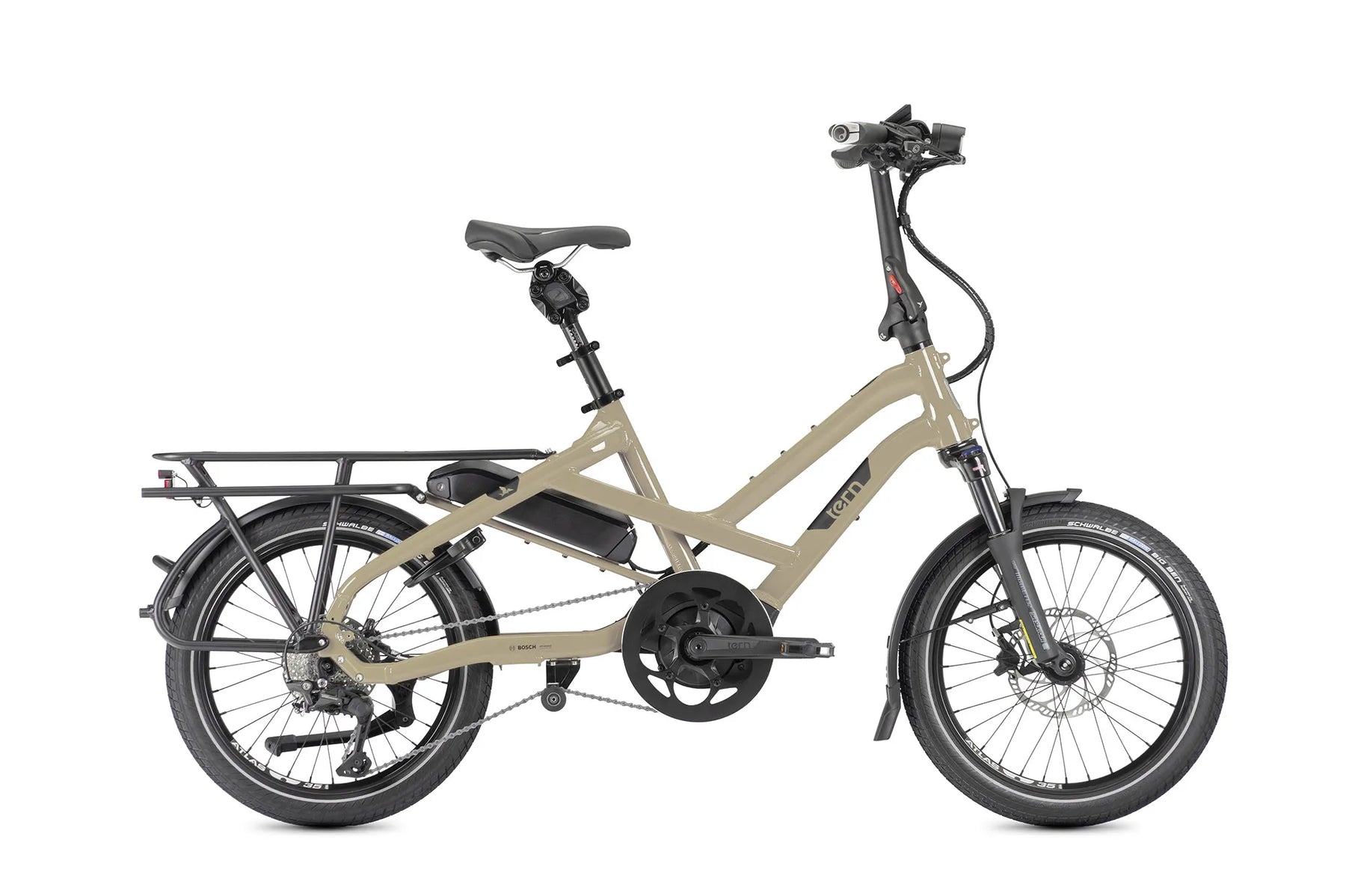

Dune

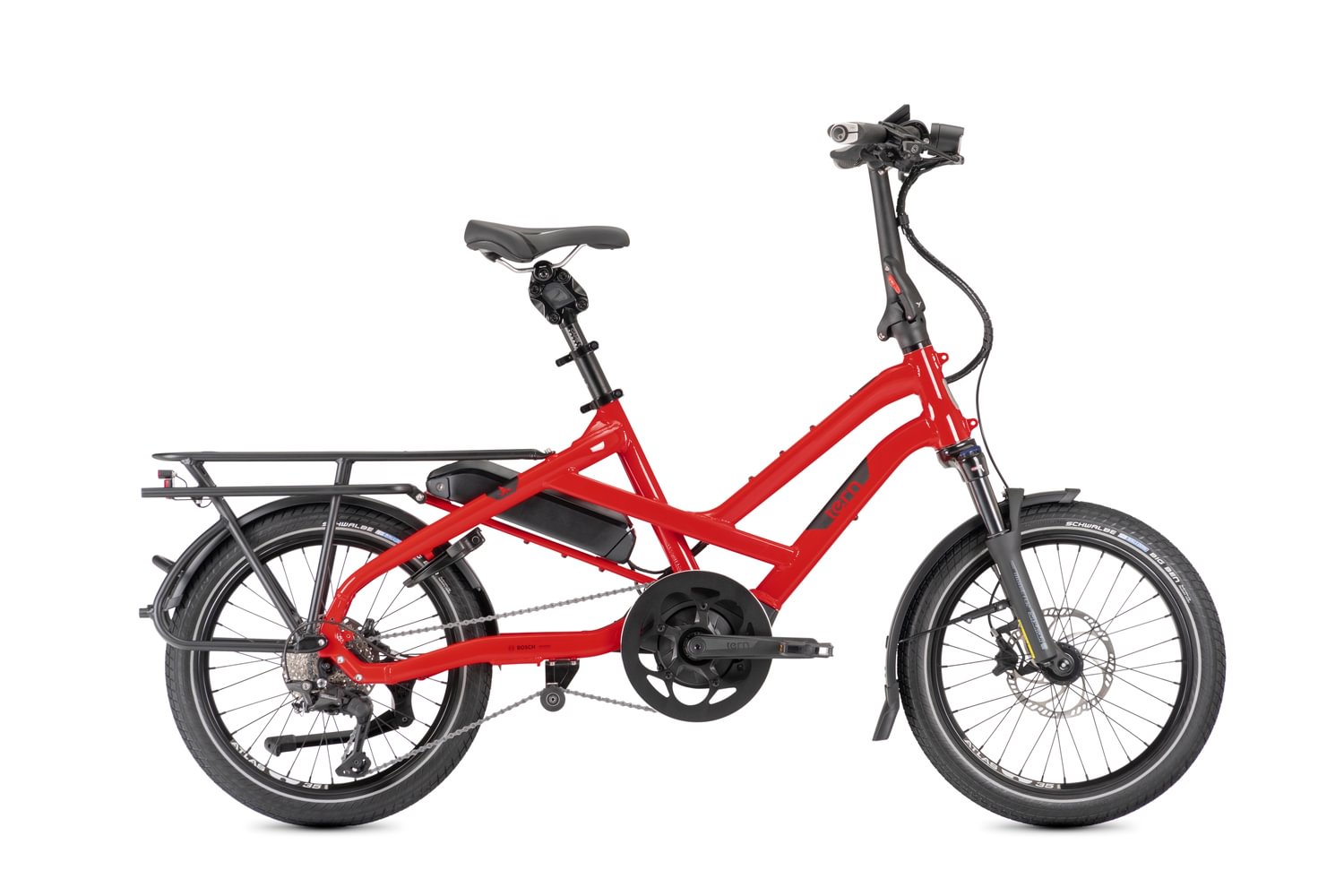

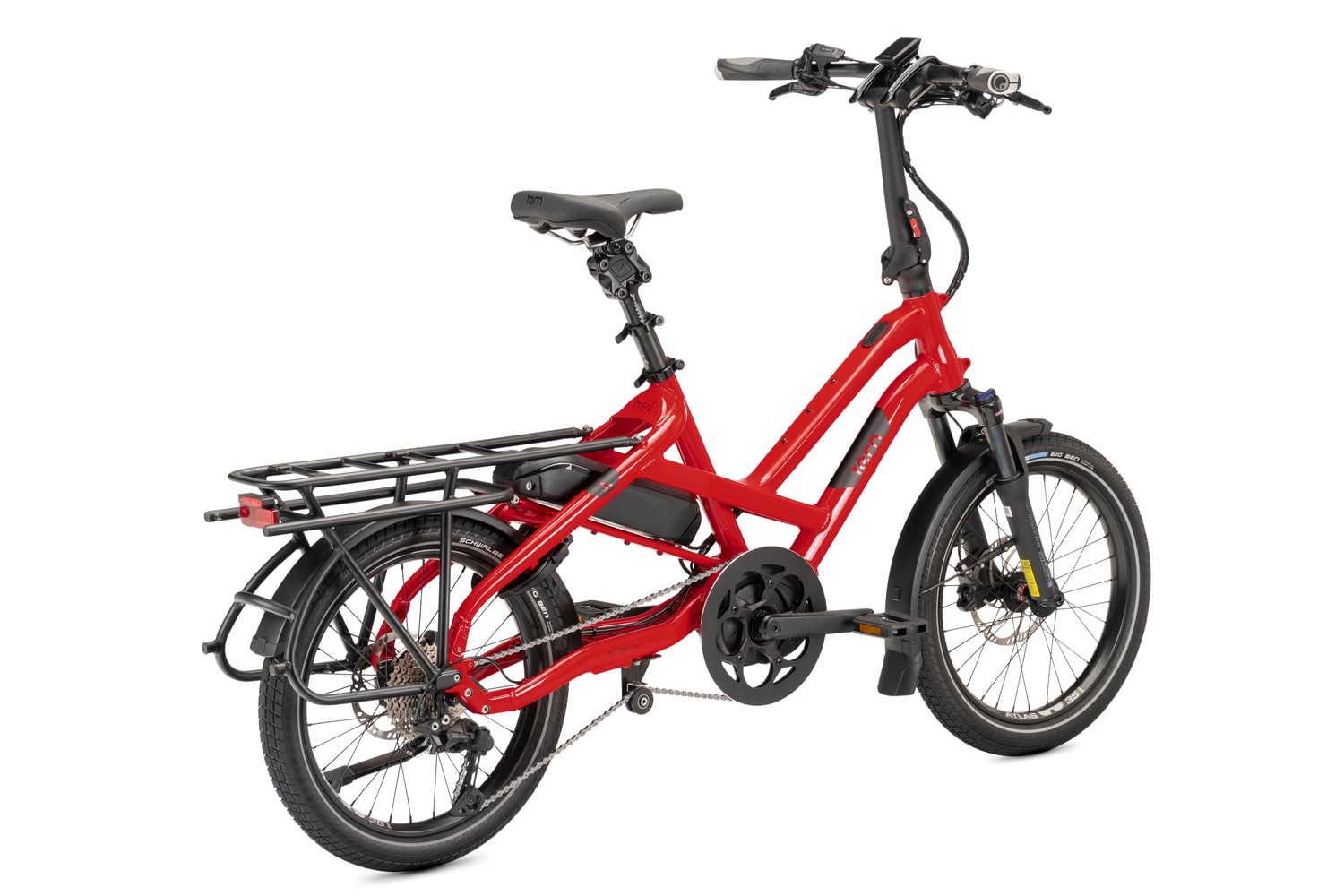

Satin Traffic Red

In stock, ready to ship
Backordered, shipping soon

HSD S11 (Gen 2) Overview

Class 3 Bosch Performance Line Sport motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
Bosch ConnectModule for the Smart System's enhanced theft-protection functions like eBike Alarm and eBike Tracking
Kiox 300 color display that automatically activates eBike Lock when removed from the bike
1x11-speed Shimano Deore groupset
Ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, no matter the weather
Always-on RearStop Brake Light helps you safely signal stops

HSD Highlights

Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more
Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
Fits riders 150 - 195 cm (4'11" - 6'5") with an easily-adjustable cockpit
Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
UL 2849 certified Bosch e-bike system & EN 15194 compliant, European standard for Electrically Power Assisted Cycles (EPACs)

Component Specifications

Frame & Fork

Frame	Tern HSD, 6061-AL, patented design, Tern sliding dropouts
Frame Size	One size
Bike Weight	28.1 kg (61.9 lb)

Drivetrain & Motor

Motor	Bosch Performance Line Sport, Class 3, 75 Nm torque, 340% assist, max 28 mph

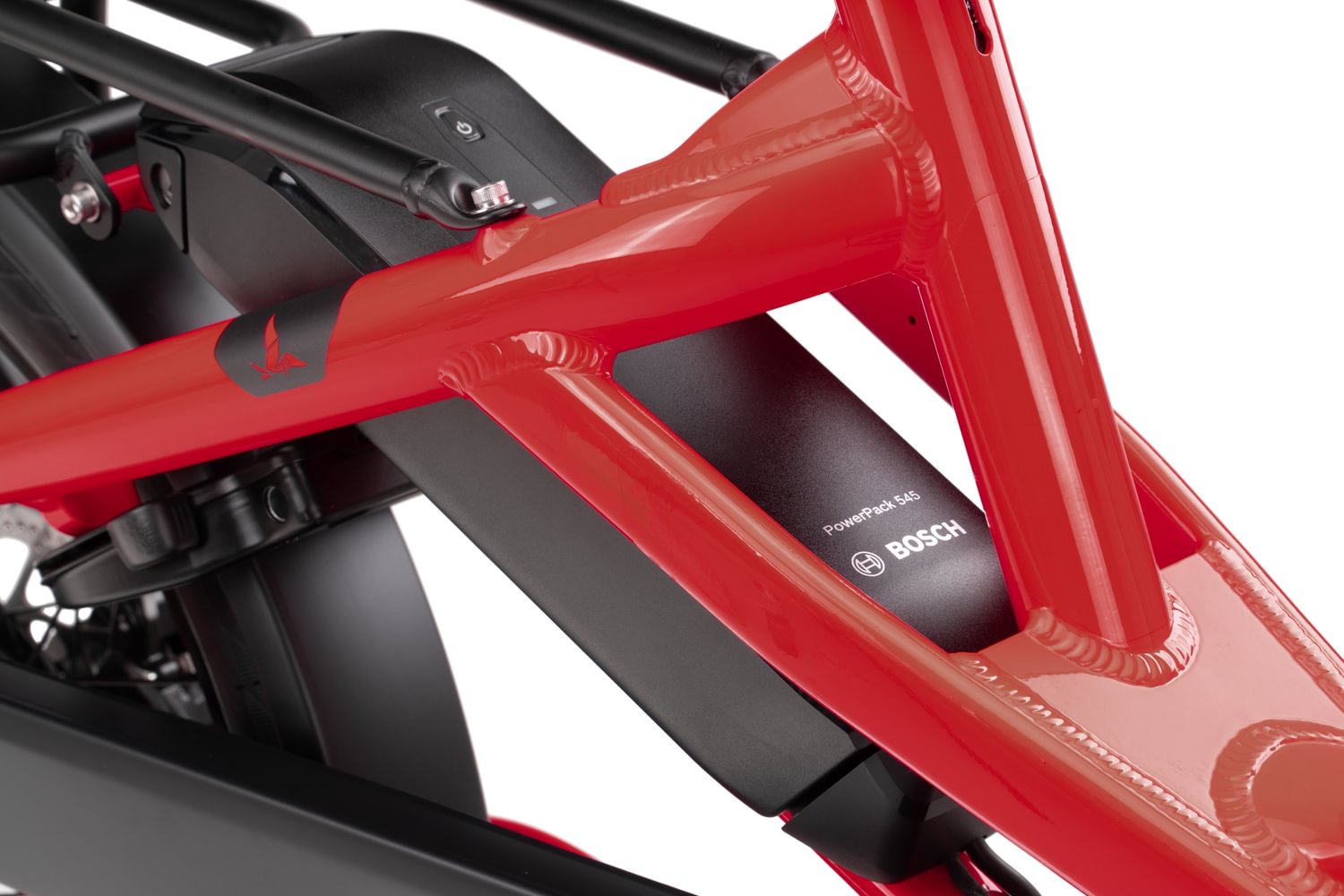

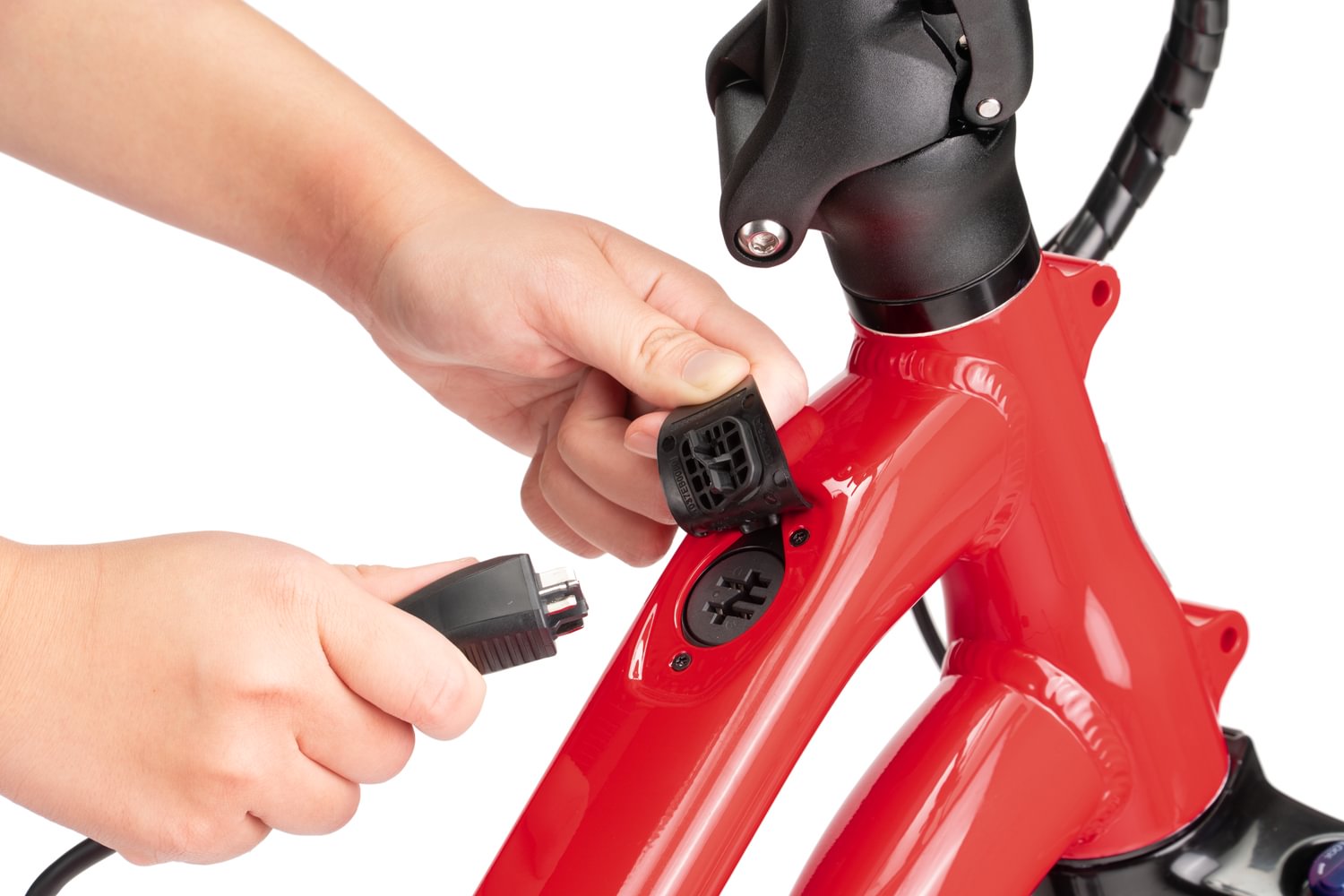

Battery	Bosch PowerPack 545 Wh
Range	51-121 km (32-76 mi)
Display / Control	Bosch Kiox 300 color display, ConnectModule (eBike Alarm, eBike Tracking), eBike Flow App

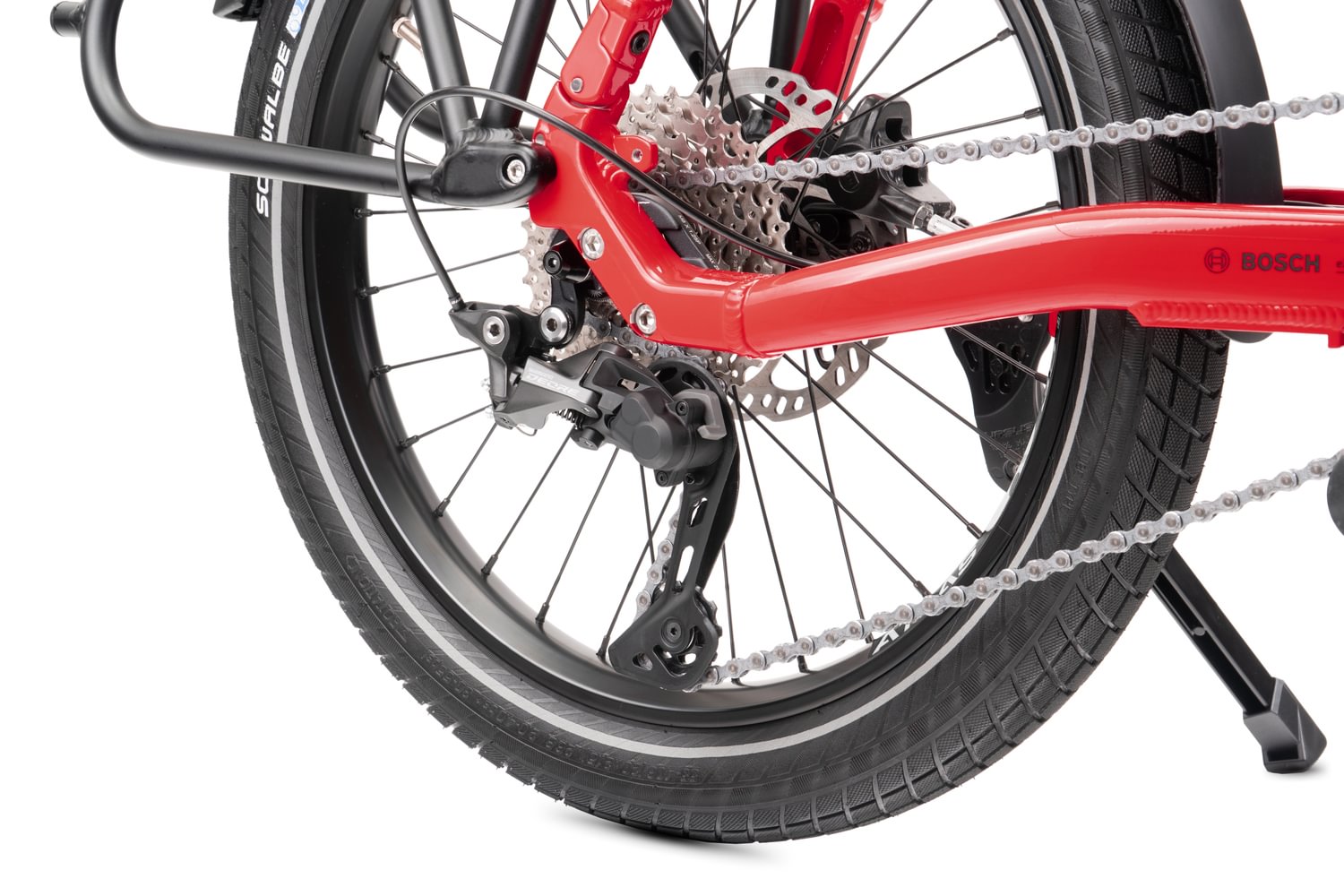

Drivetrain	1x11-speed Shimano Deore
Cassette	11-36T
Gear Range	32"-104" (2.54-8.32 m)

Brakes

Front & Rear

Magura MT4 hydraulic disc (180 mm front, 160 mm rear)

Wheels & Tires

Rims	Tern Atlas H, 35 mm wide, Novatec thru-axle hubs
Tires	Schwalbe Big Ben, 55-406

Lighting & Capacity

Headlight	Ignis, high/low beam
Tail Light	Always-on RearStop Brake Light
Max Gross Vehicle Weight	180 kg (396.8 lb)
Max Rider Weight	120 kg (264.6 lb)

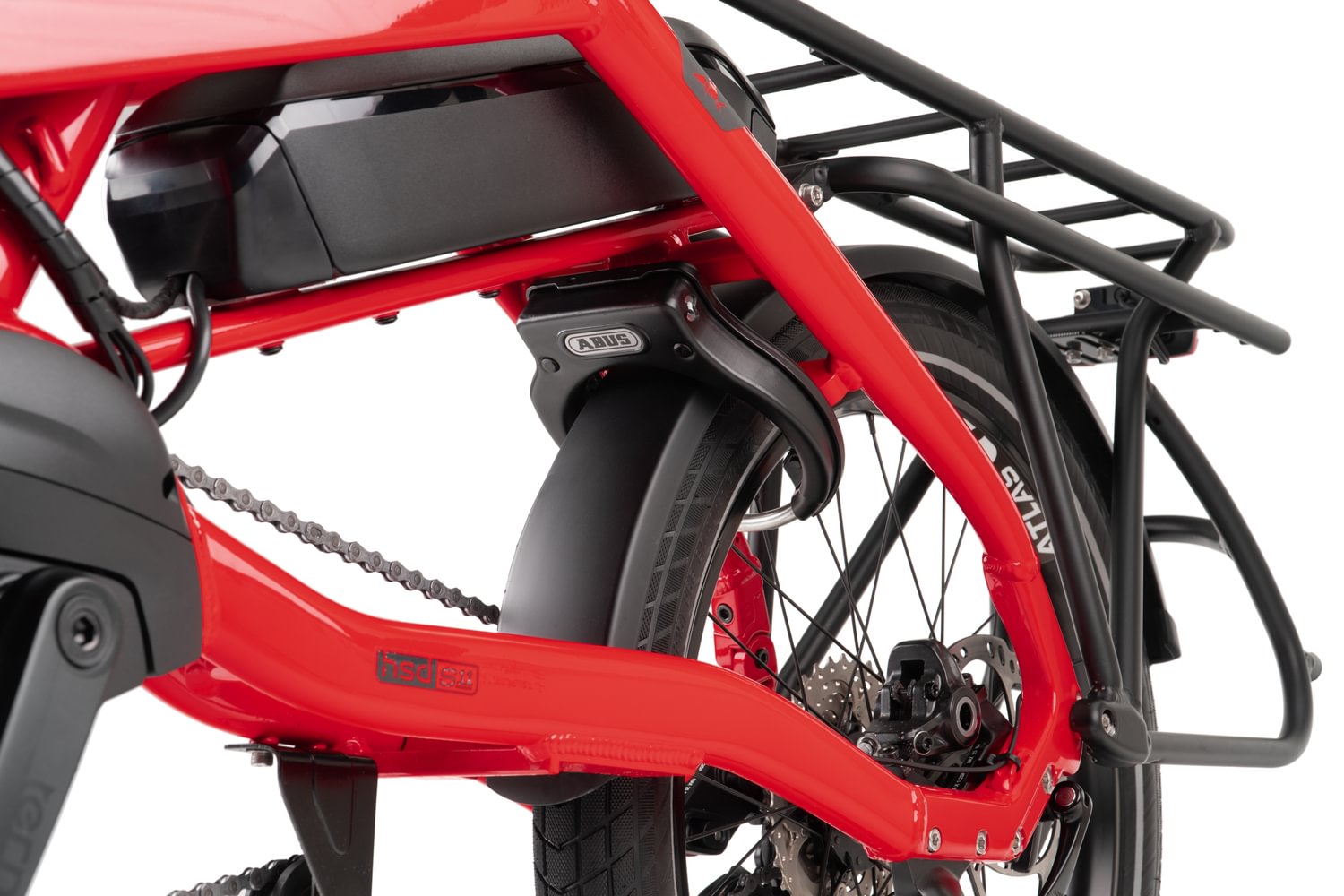

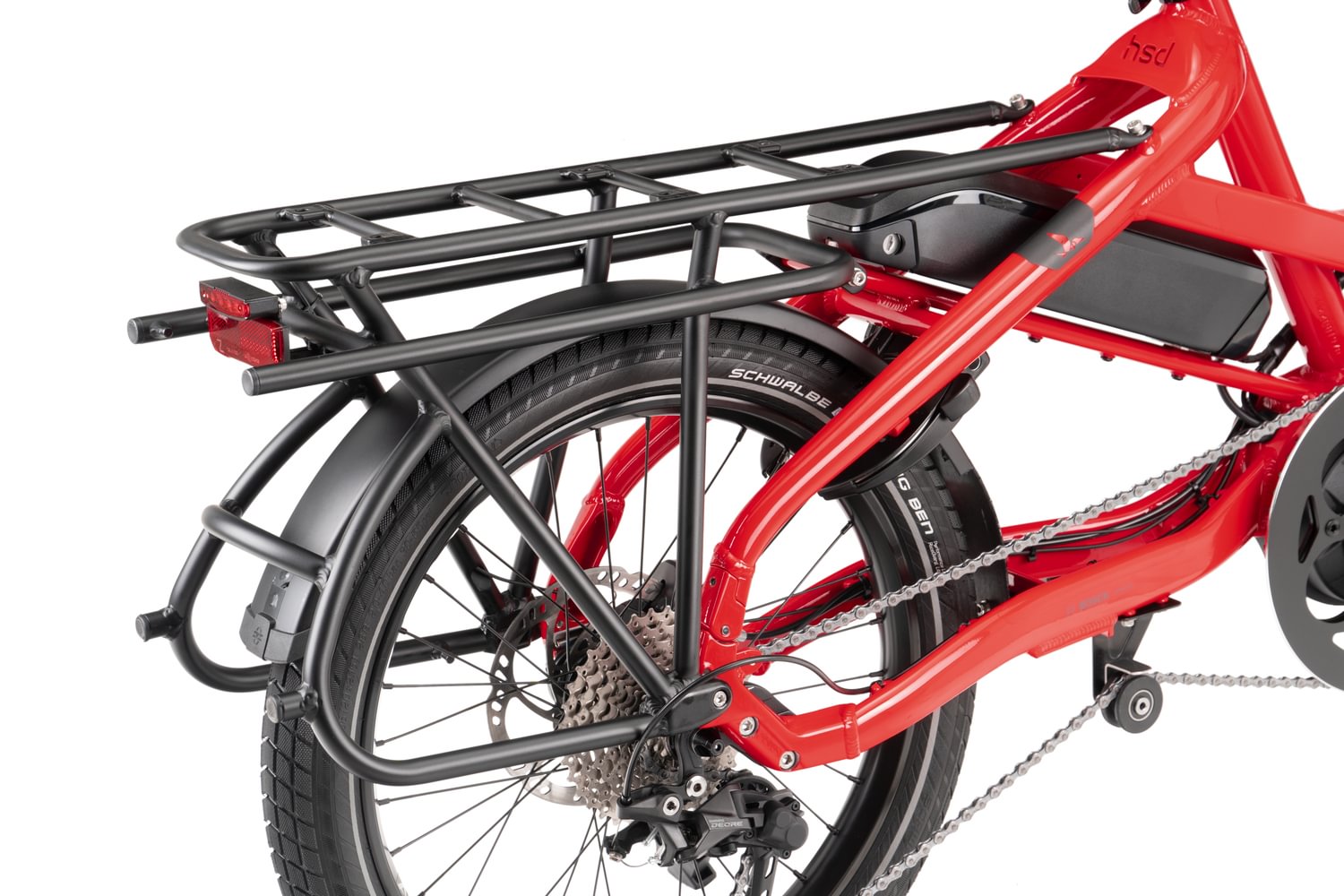

Rear Rack Capacity	80 kg (176 lb)
Suggested Rider Height	150-195 cm (4'11"-6'5")

Geometry

Standover Height	Low-step, one size fits 150-195 cm riders
Seatpost to Handlebar (Reach)	52-62.5 cm (20.5-24.6 in)
Saddle to Pedal	76-110 cm (29.9-43.3 in)

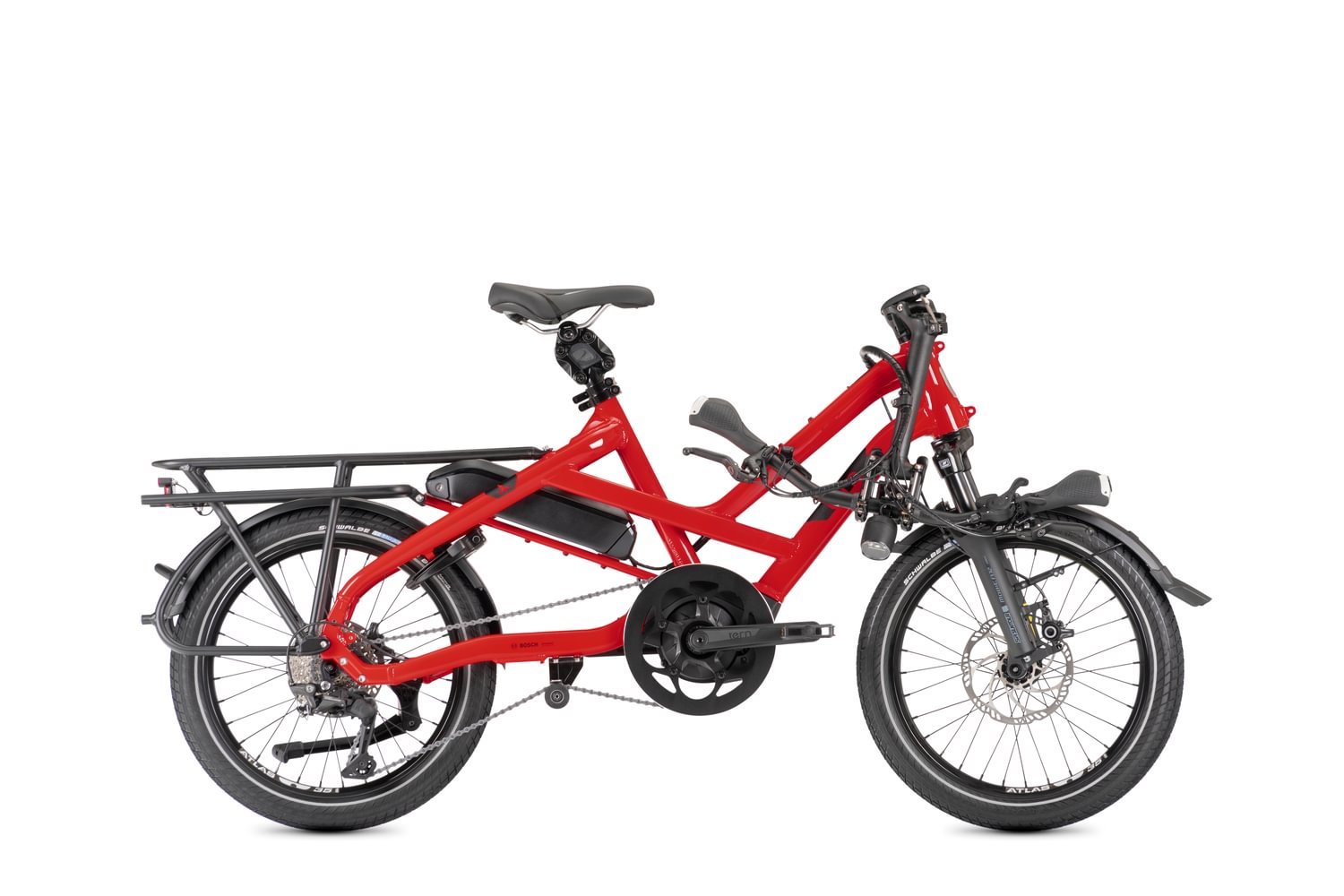

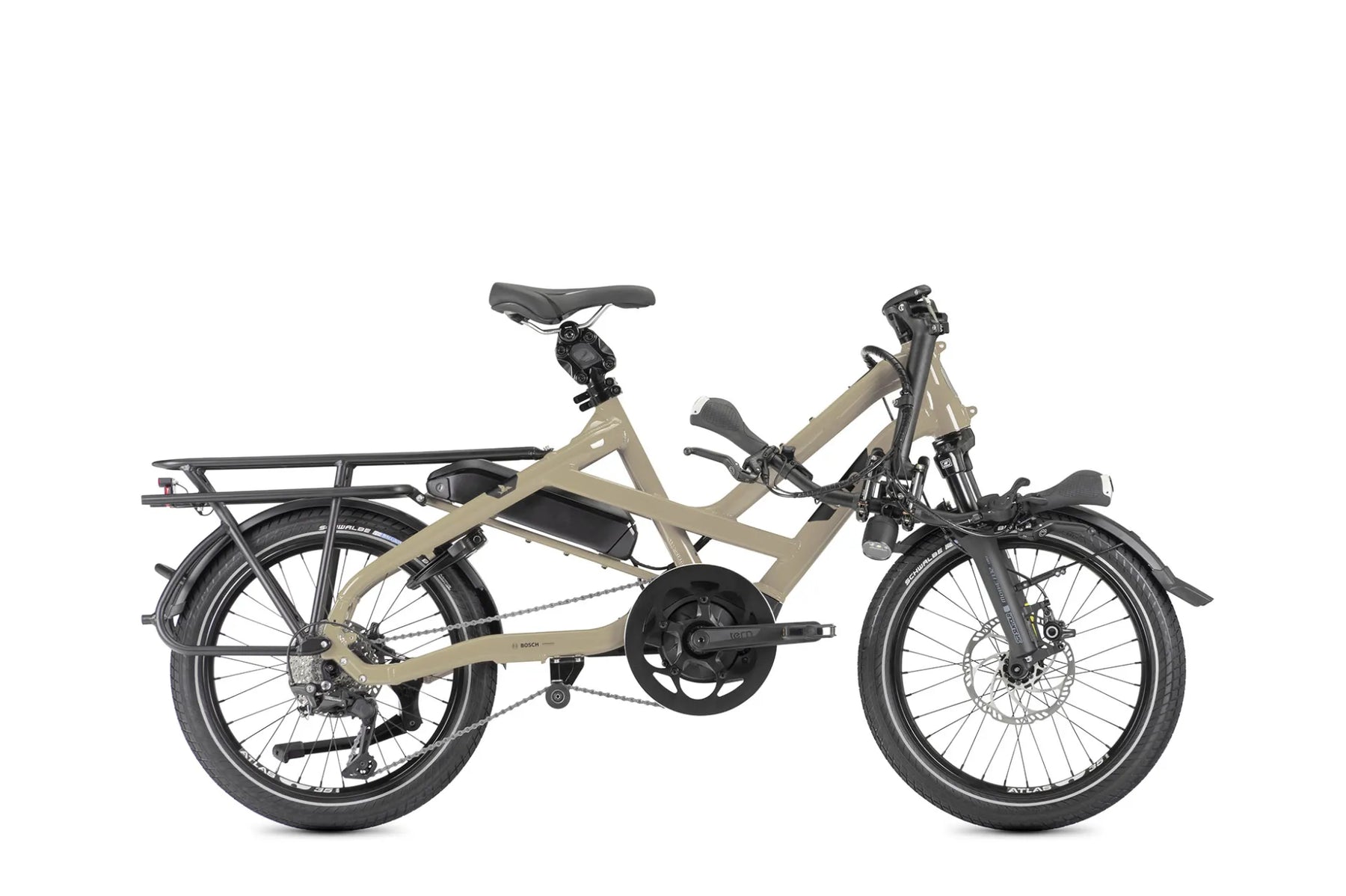

Folded Dimensions	165 x 39.5 x 87 cm (65 x 15.6 x 34.3 in), 5-second fold
