Link D7i Overview
The Link D7i is perfect for getting around in the city, hauling gear, and riding day-in-day-out. Because it’s built around a durable low seven-speed Nexus internal hub, it’s ideal for carrying onto buses or riding in the rain. A rear rack and integrated lighting with an electricity-generating hub is included.
- 7-speed internally geared Shimano hub for versatility and low maintenance
- Andros™ handlebar stem for tool-free riding position adjustments on the fly
- FreeDrive™ chain cover protects your clothes from grease and dirt
- Bomb-proof wheels built with Sapim spokes
- Schwalbe Big Apple tires with Kevlar puncture protection
- Fenders for rainy days

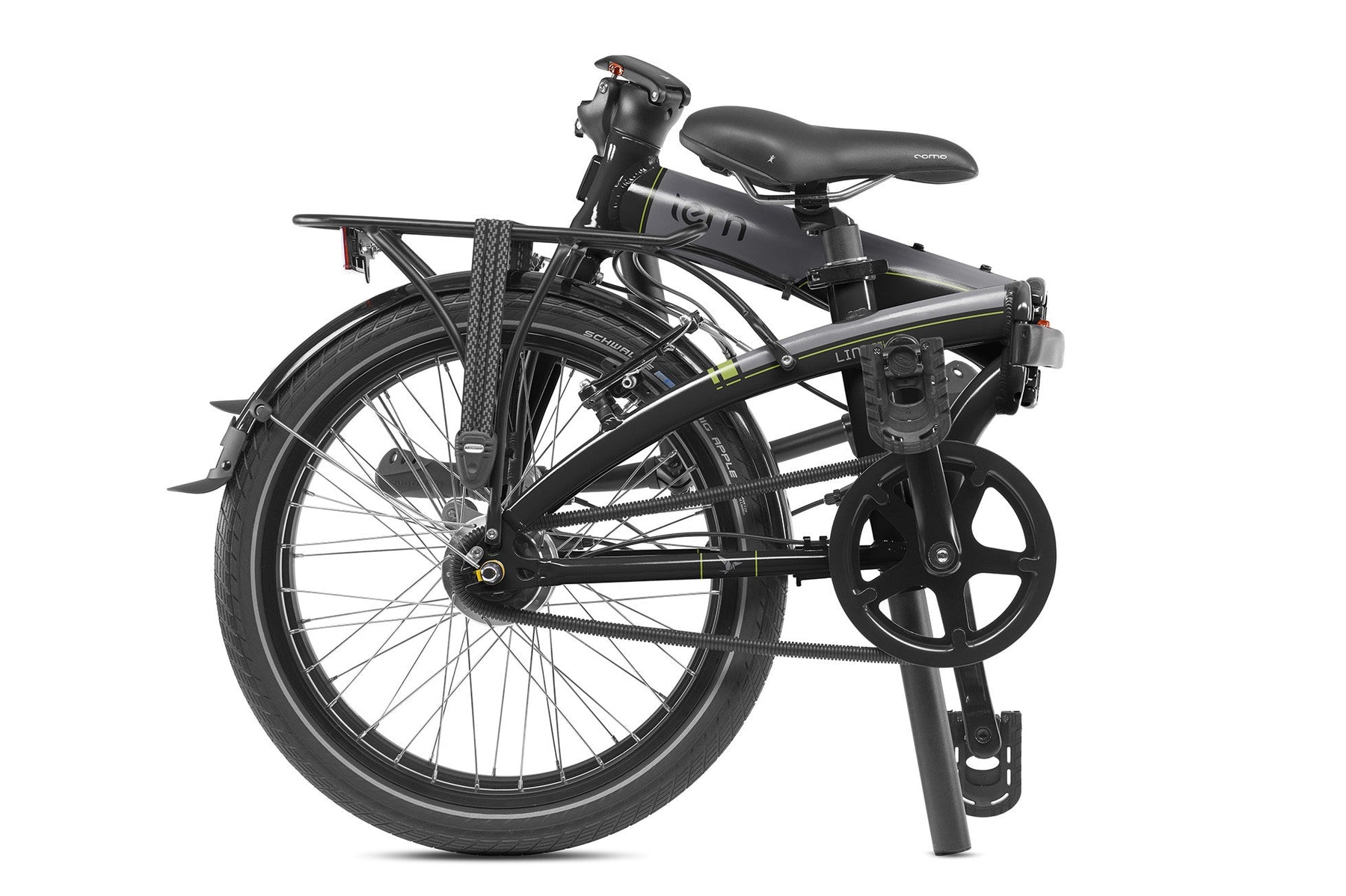

- Folds compactly in 10 seconds for storage and transport
- Rear rack and integrated lighting included
Want to learn more before buying? Visit TernBicycles.com
Component Specifications
Frame & Fork
| Frame | Tern Link, aluminum, OCL joint, 3 patented technologies |
| Fork | Integrated, hi-tensile steel |
Drivetrain
| Configuration | 1x7 |
| Shifter / Hub | Shimano Nexus 7-speed internal gear hub |
| Crankset | Forged 6061 aluminum, hand-polished |
| Freewheel | 17T |
| Chain | 408H |
| Gear Range | 33" - 80" (2.62 - 6.41 m) |
| Pedals | Folding alloy body |
Brakes
| Front & Rear | V-brake, aluminum, linear-pull spring |
Wheels & Tires
| Rims | Doublewall aluminum |
| Tires | Schwalbe Big Apple, 50-406, Kevlar puncture protection, Reflex |
| Spokes | Sapim Leader, stainless steel |
| Front Hub | Mini aluminum with Panasonic dynamo |
Cockpit
| Handlebar | Flat bar, 6061-Al |
| Stem | Tern Andros, adjustable, forged construction |
| Saddle | BioLogic Como DLX |
Geometry & Fit
| Weight | 14.4 kg (31.7 lb) |
| Folded Size | 38 x 79 x 72 cm (15 x 31.1 x 28.3 in) |
| Folding Time | 10 seconds |
| Frame Size | One size |
| Suggested Rider Height | 142 - 190 cm (55.9 - 74.8 in) |
| Seatpost-to-Handlebar Distance | 62 - 69 cm (24.4 - 27.2 in) |
| Saddle-to-Pedal Distance | 70 - 96 cm (27.6 - 37.8 in) |
| Max Gross Weight | 120 kg (264.6 lb) |
Tern builds the Link D7i as a single adjustable-fit frame (seatpost-to-handlebar and saddle-to-pedal reach ranges above) rather than multiple sized frames; no seat tube/top tube/wheelbase chart is published.
