Name: Tern NBD P8i Electric Bike
Brand: Tern
SKU: 12-91-02
Price: 2999.0 USD
Availability: InStock

$2,999.00

Shipping calculated at checkout.

Color

Red Silver

Silver Blue

In stock, ready to ship
Backordered, shipping soon

NBD P8i Overview

Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
Bosch PowerPack 400 powers long trips, commutes, and journeys
Shimano Nexus 8-speed internal hub
Shimano hydraulic disc brakes for reliable stopping power, even when carrying cargo and riding fast
Ultra-low 39 cm (15.4") standover height means gentle, low steps are all that's required to get on and go
Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
Fits riders 147 - 190 cm (4'10" - 6'3")
UL 2849 certified Bosch e-bike system & EN 15194 compliant, European standard for Electrically Power Assisted Cycles (EPACs)

Component Specifications

Frame & Fork

Frame	Tern NBD, 6061-AL, patented design, EFBE Tri-Test approved (140 kg)
Fork	Tern Tarsus, 6061-AL hydroformed, EFBE approved (140 kg)
Frame Size	One size
Bike Weight	23.7 kg (52.2 lb)

Drivetrain & Motor

Motor	Bosch Active Line Plus, Class 1, 50 Nm torque, 270% assist, max 20 mph (US)
Battery	Bosch PowerPack 400 Wh
Range	54-108 km (34-67 mi)
Display / Control	Bosch Intuzia, 4 selectable modes, walk assist
Shifter	Shimano 8-speed
Rear Hub	Shimano Nexus 8
Crankset	Tern NBD custom forged 6061-AL
Cassette	16T
Chain	KMC for eBike, EPT corrosion coating
Gear Range	30"-91" (2.37-7.26 m)

Brakes

Front & Rear

Shimano hydraulic disc

Wheels & Tires

Rims	Kinetix Comp, for disc, stainless spokes
Tires	Schwalbe Big Apple, 55-406, puncture protection, Reflex

Capacity & Weight

Max Gross Vehicle Weight	140 kg (309 lb)
Max Rider Weight	120 kg (264.6 lb)
Rack Capacity	Gaia Rack, 27 kg (60 lb)
Suggested Rider Height	147-190 cm (4'10"-6'3")

Geometry

No traditional reach/stack/wheelbase/head-tube-angle geometry chart is published for the NBD platform; the dimensions above are the full set of frame/fit measurements Tern publishes.

Standover Height	39 cm (15.4 in)
Seatpost to Handlebar (Reach)	45-52 cm (17.7-20.5 in)
Saddle to Pedal	70-100 cm (27.6-39.4 in)

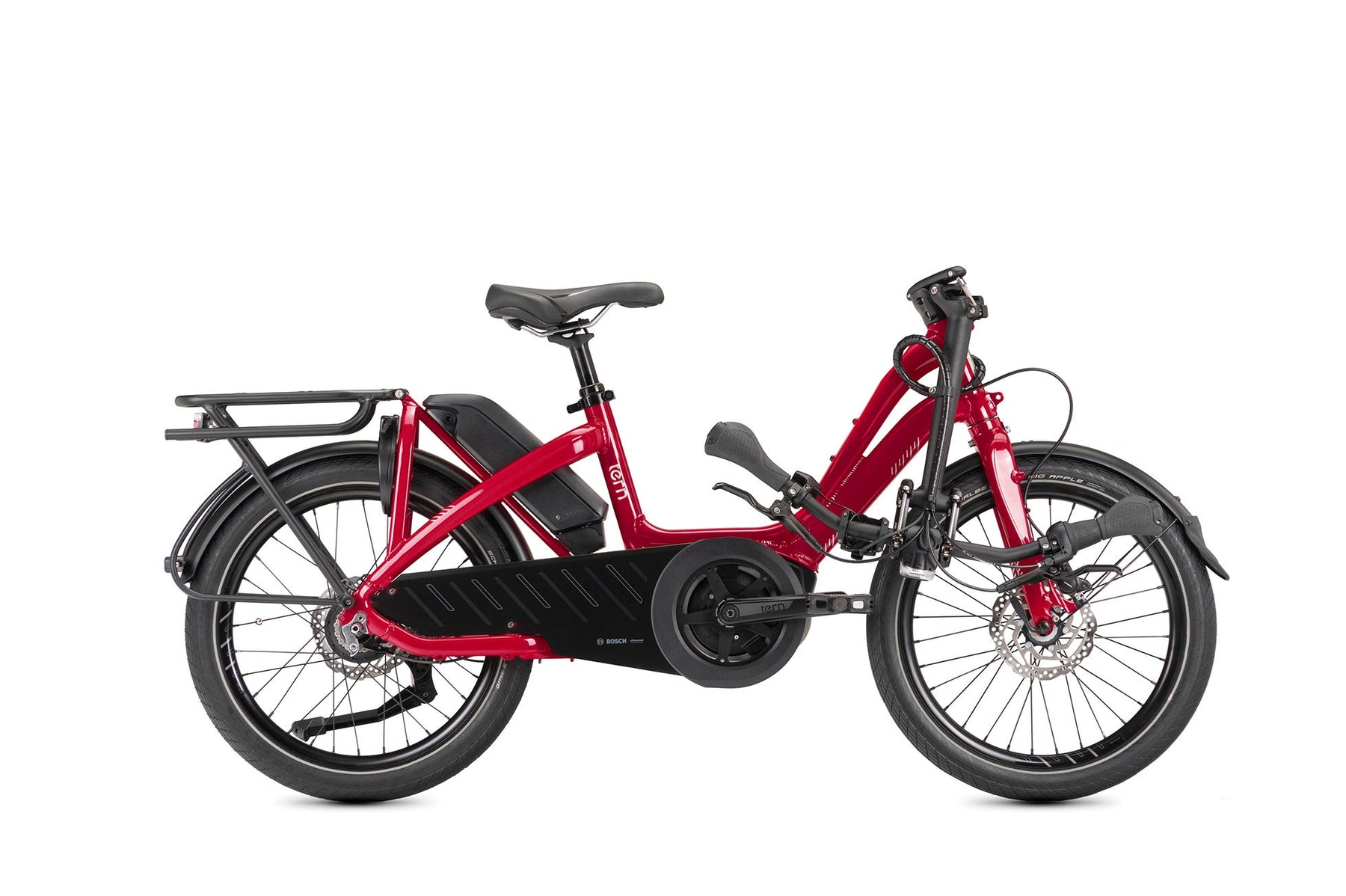

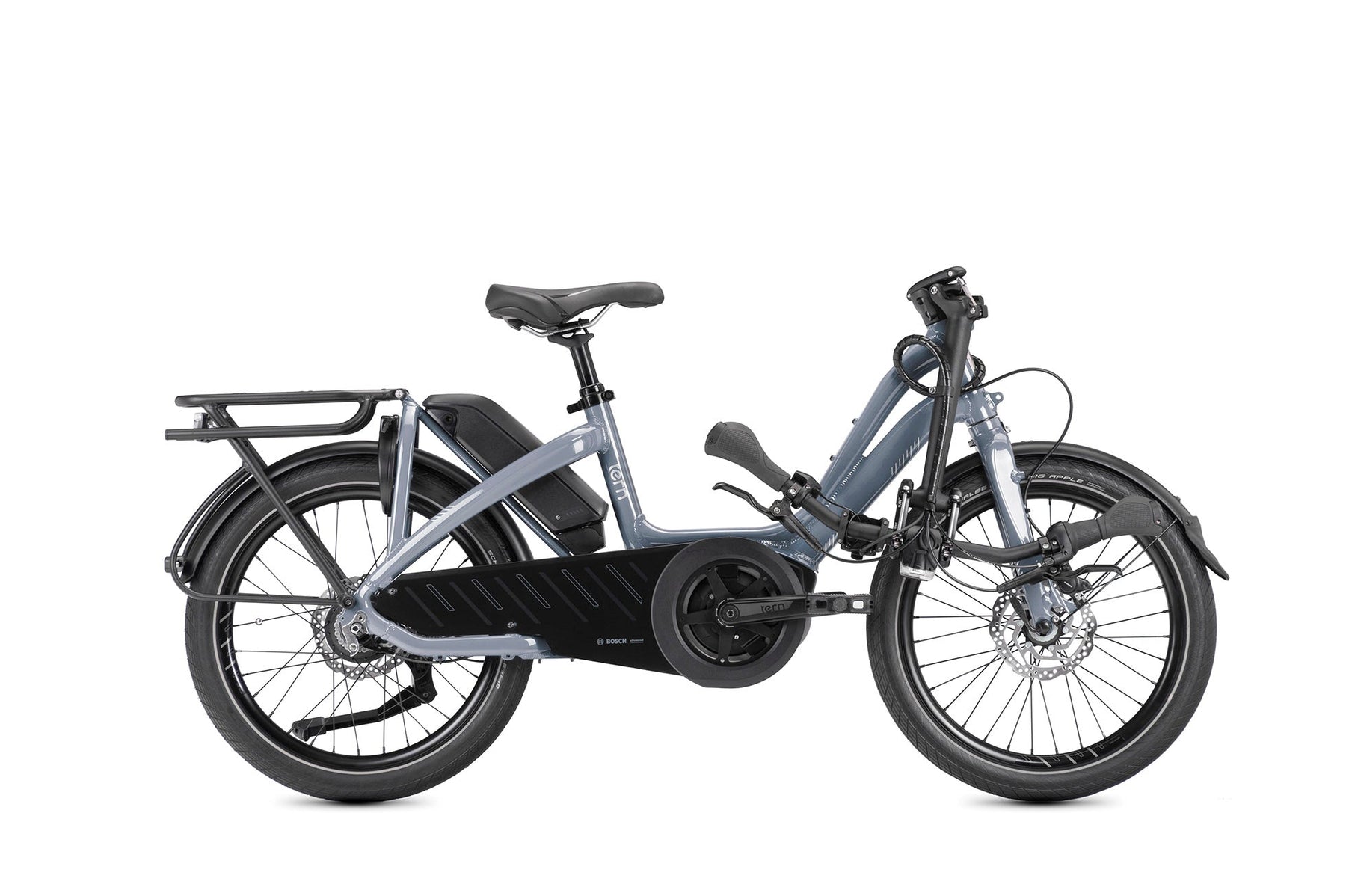

Folded Dimensions	38 x 156 x 79 cm (15 x 61.4 x 31.1 in), 5-second fold
