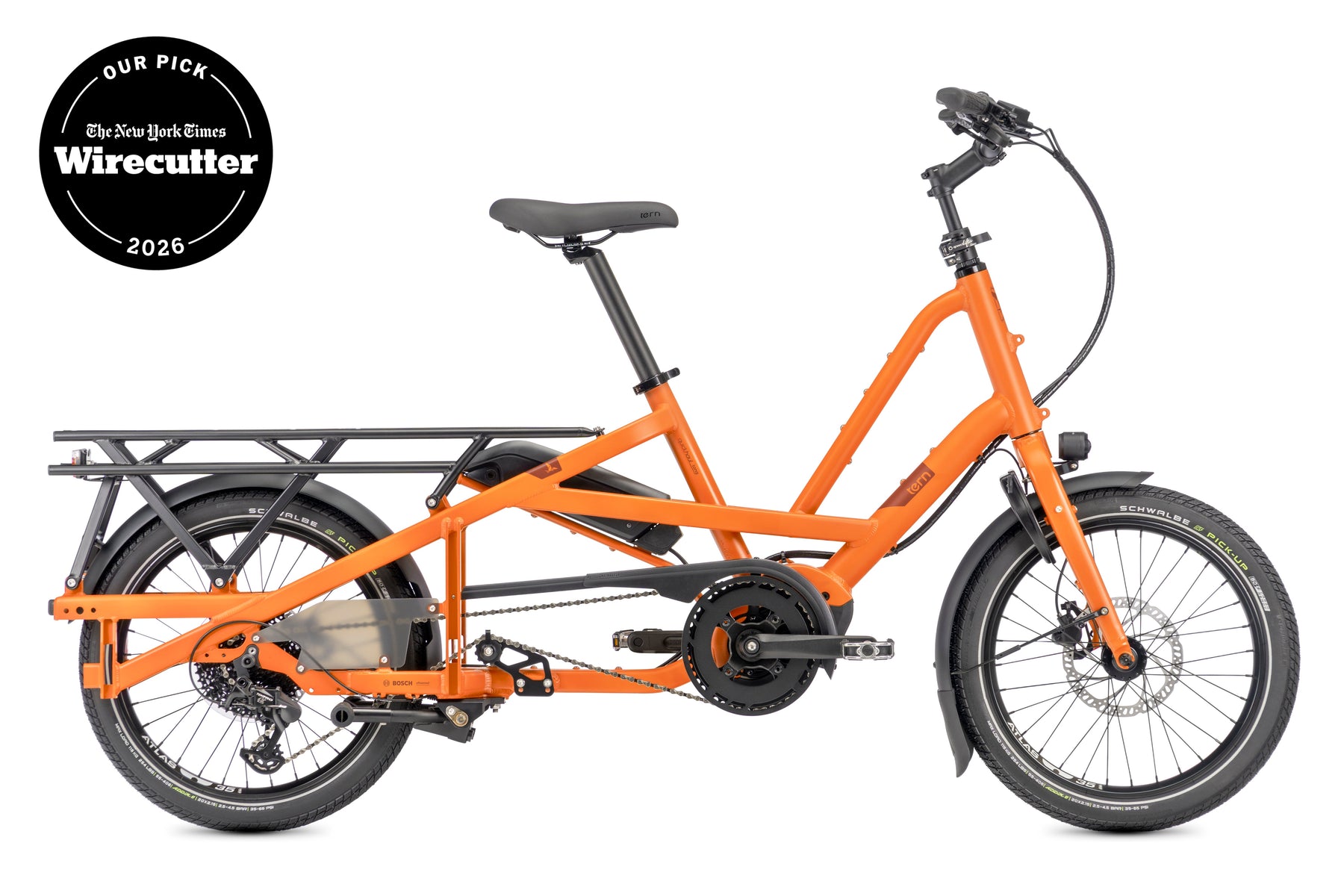

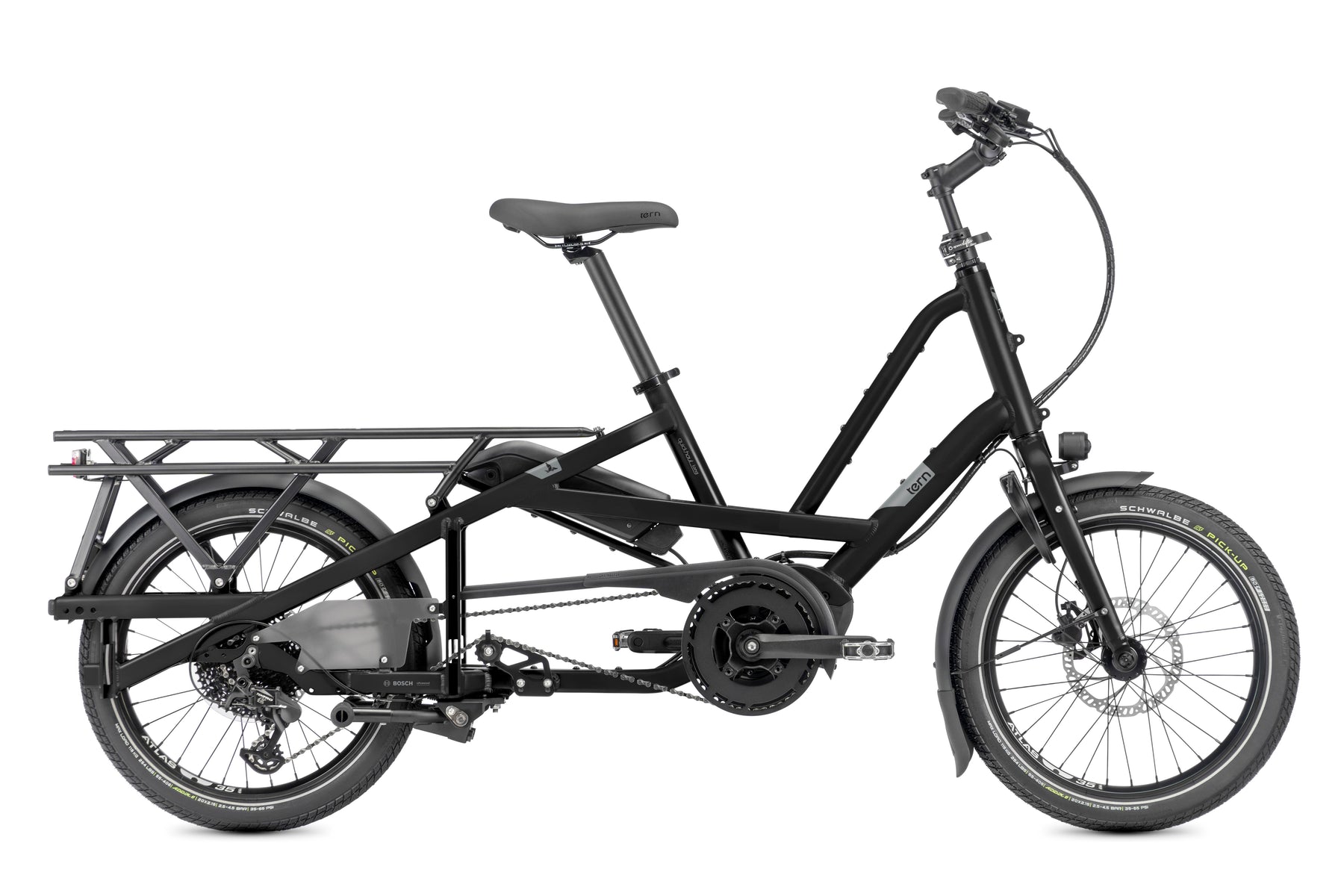

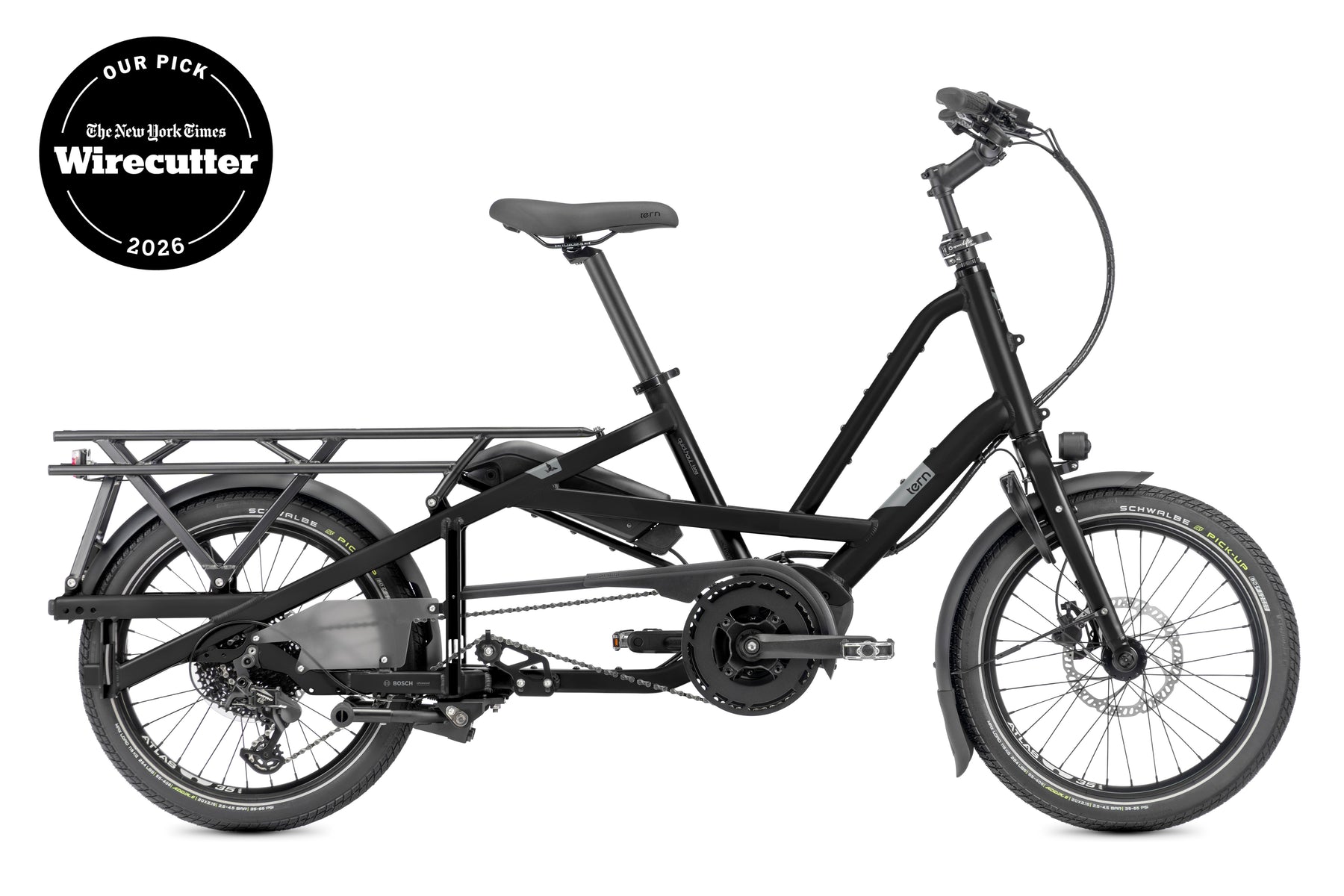

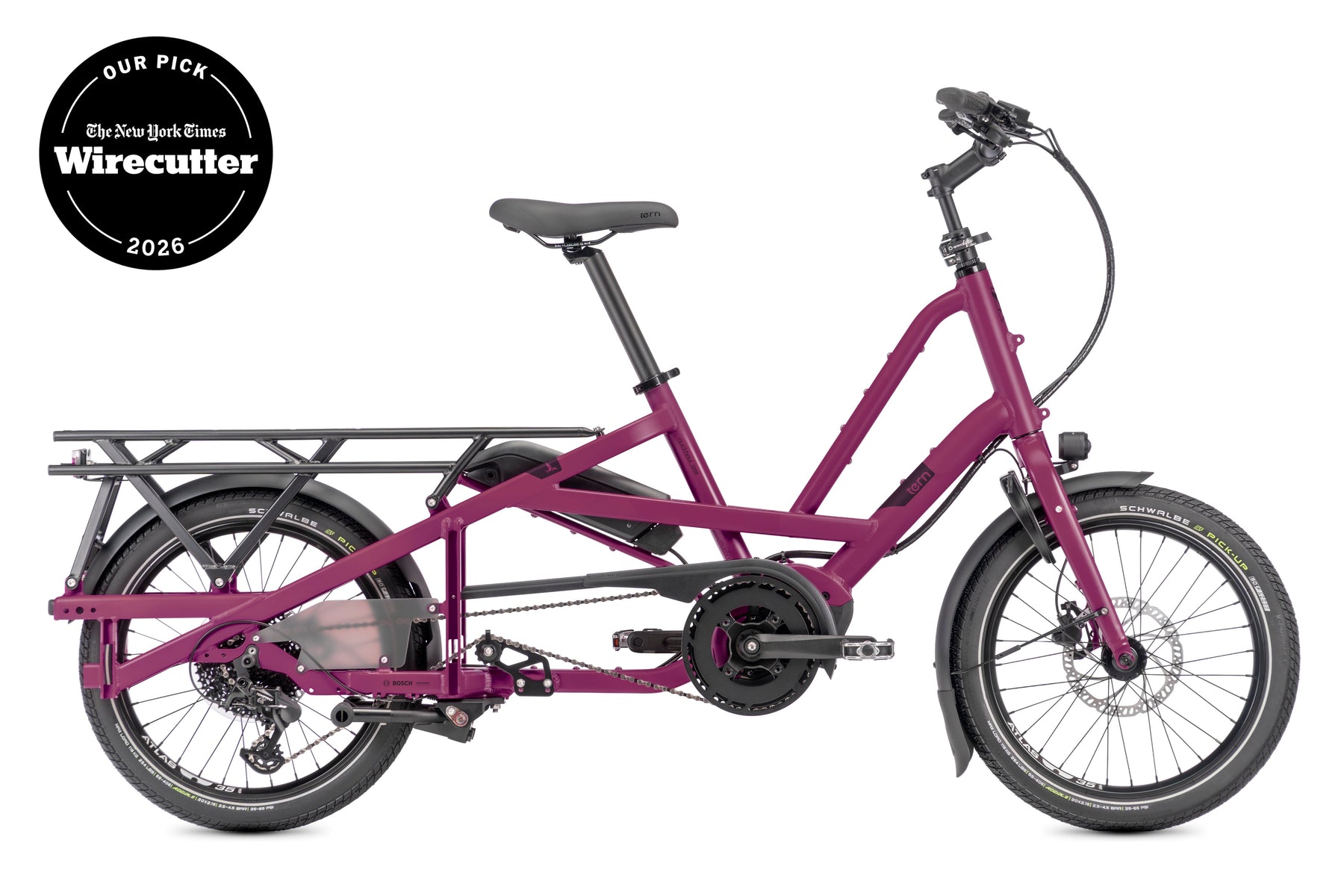

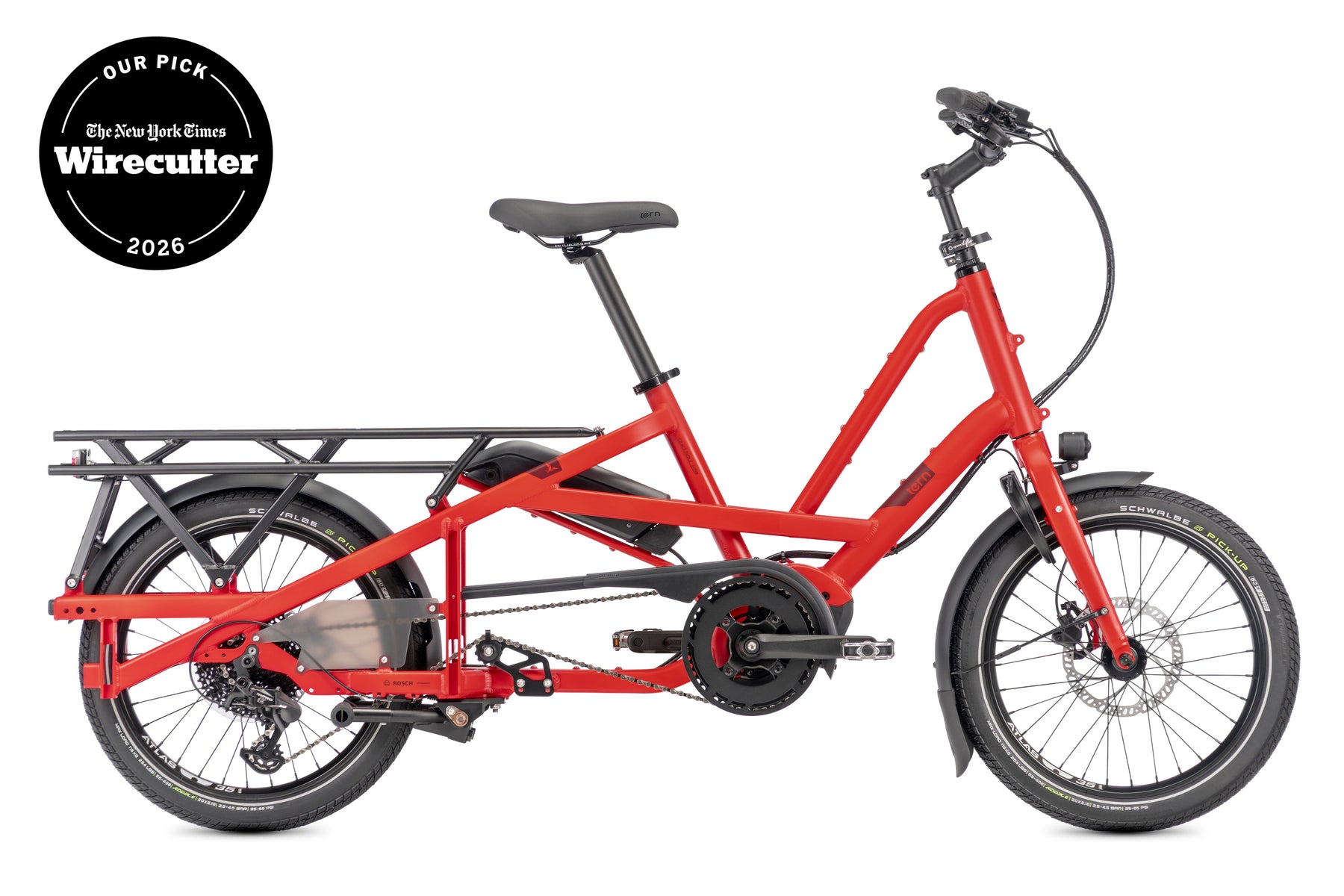

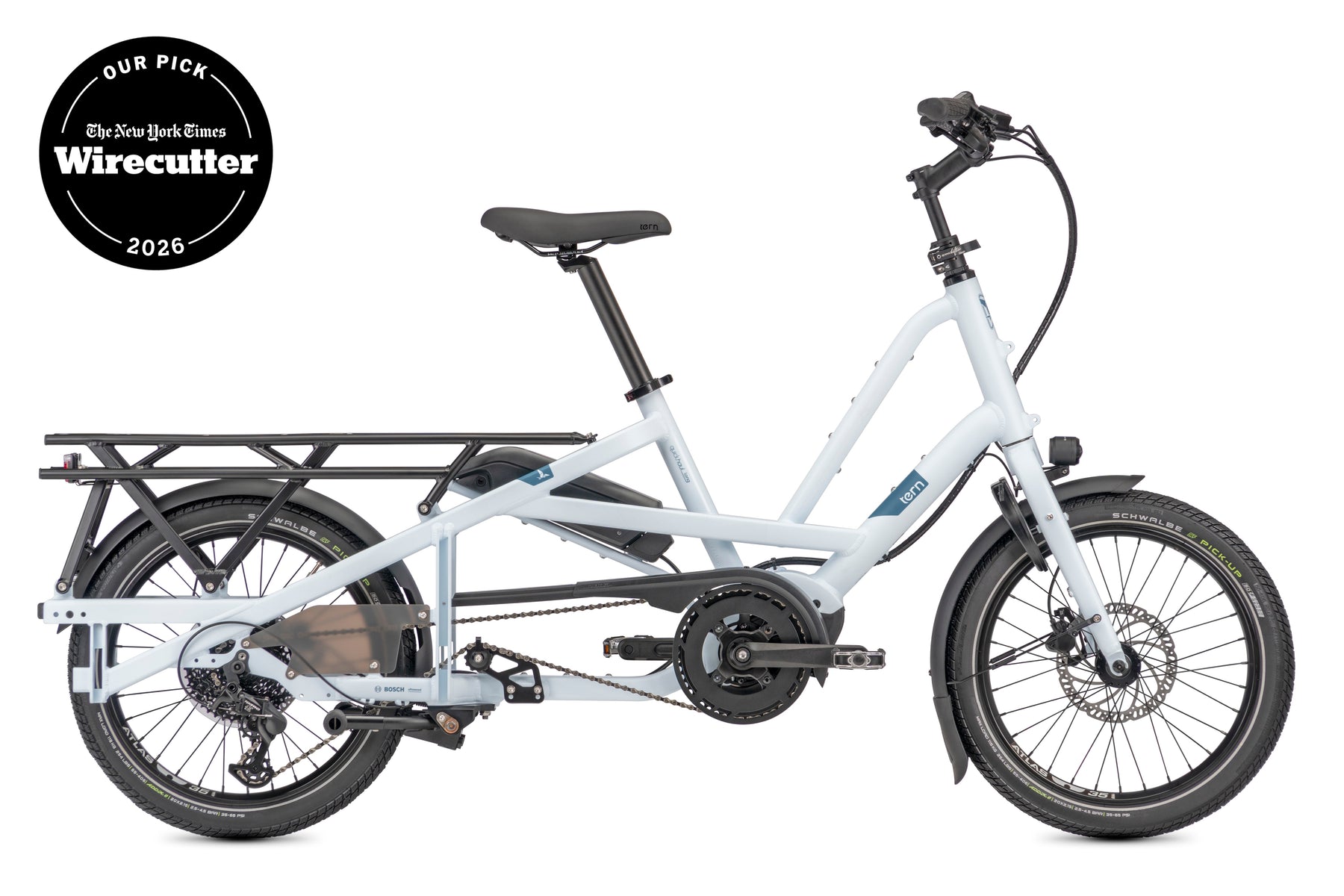

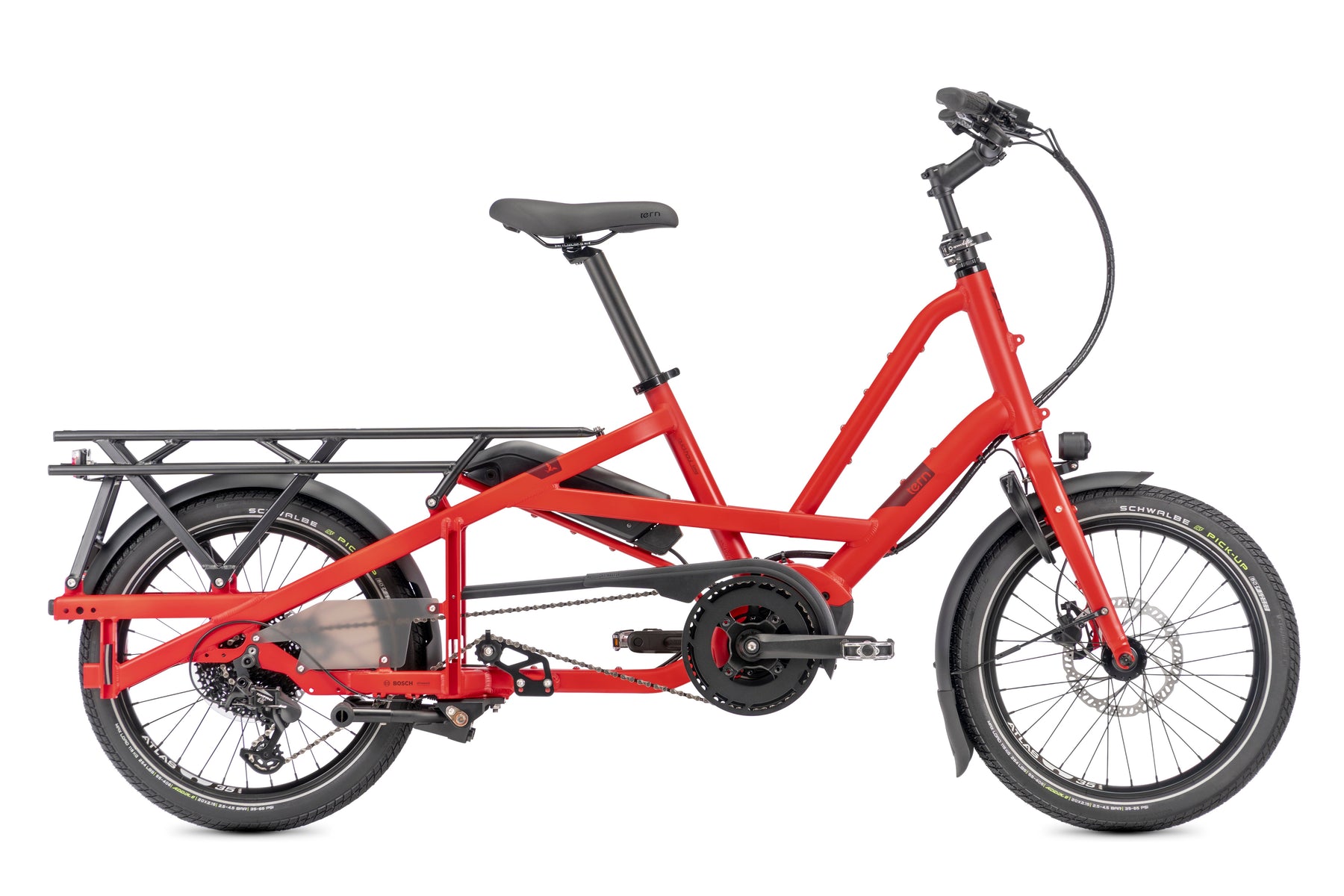

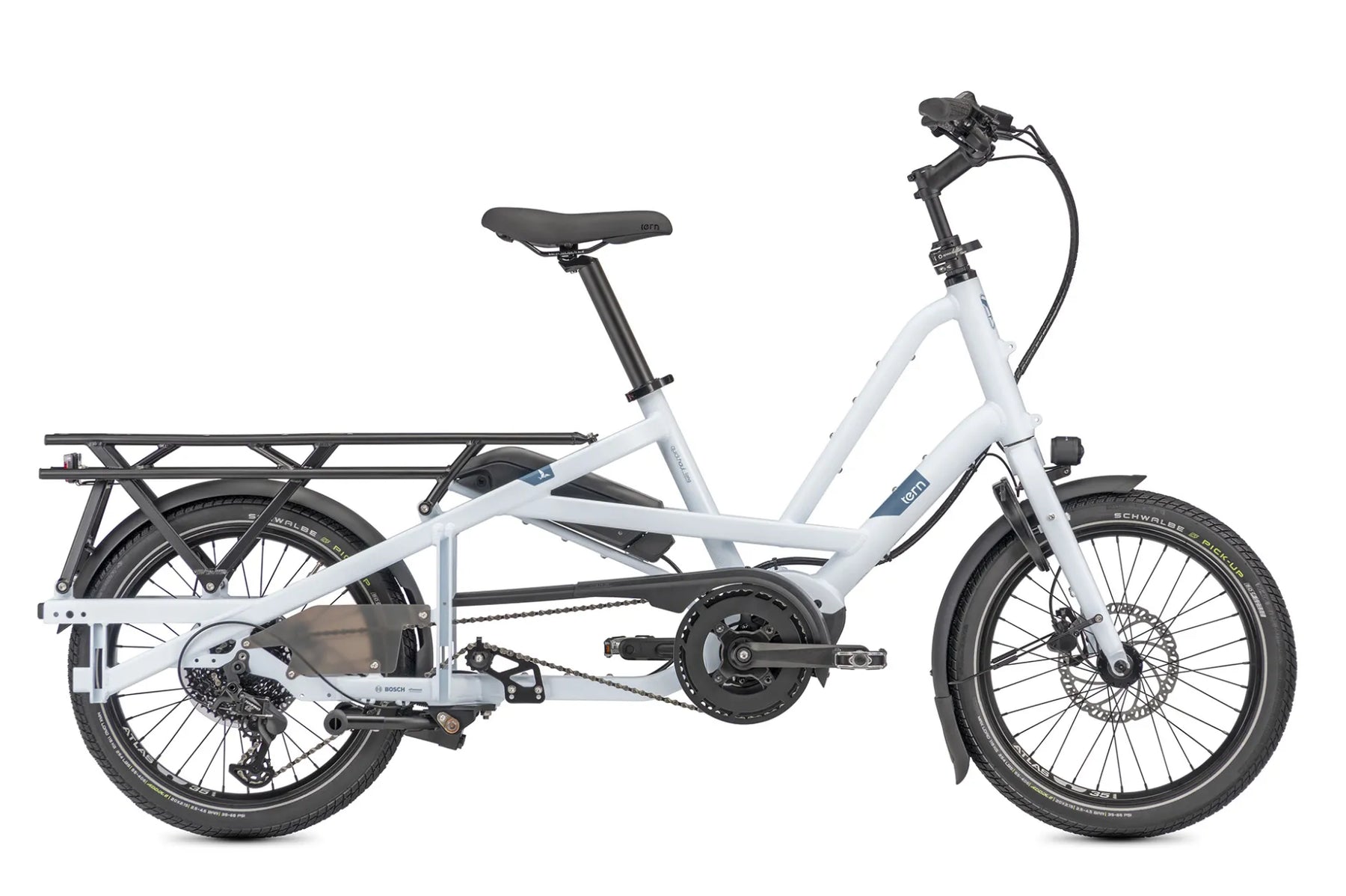

Tern Quick Haul Long D9
Life is Better by Bike
Uncomplicated and incredibly versatile, Quick Haul Long is a compact cargo bike for families on the go. It's similar in length to a regular bike for easy maneuvering past traffic queues, but built extra tough to safely carry 2 kids or your biggest hauls. And best of all, it's a funner, freer way to get around for you and your family.
Quick Haul Long D9 Overview
- Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats

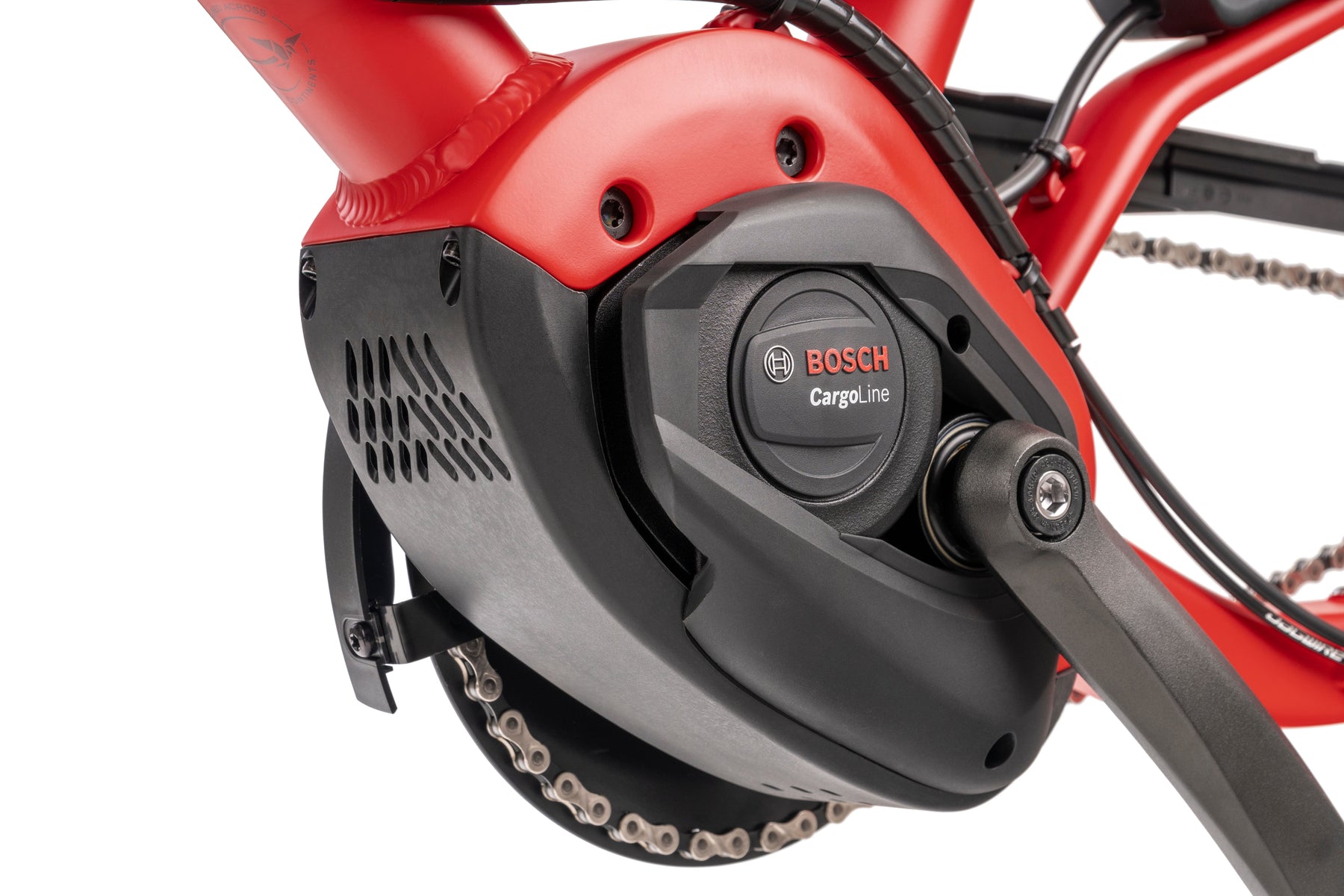

- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support
- Easy-to-use, intuitive Bosch e-bike system helps you stay informed and in control on the road
- Custom 1 x 9-speed e-bike drivetrain with trigger shifter for faster, more precise shifting
- Built tough for hauling, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 90 kg (198 lb)

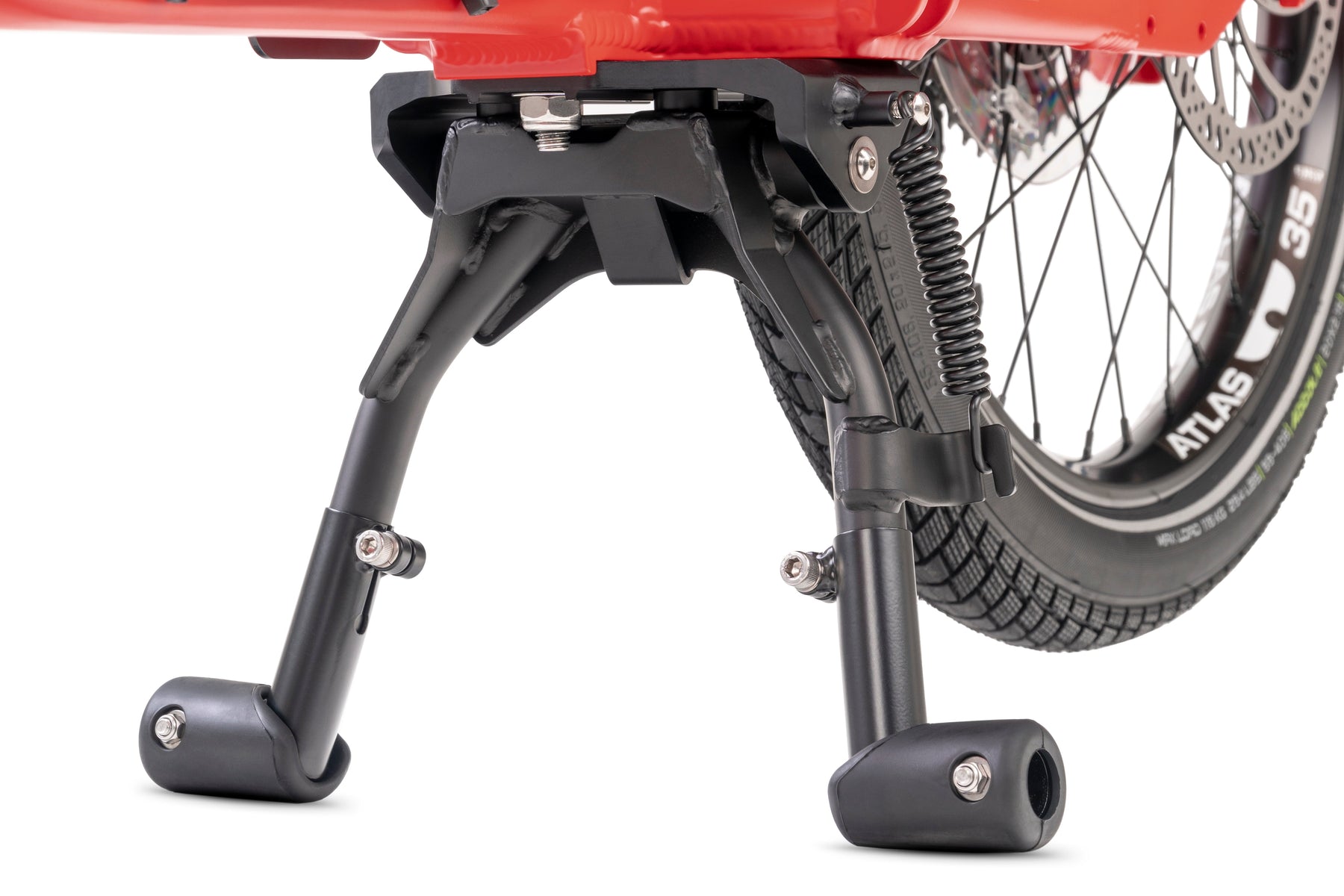

- Robust, patented Atlas Kickstand keeps the bike steady for safe loading & unloading of cargo and passengers
- Create customized setups using Tern's wide range of kid & cargo-carrying accessories
- Adjusts without tools to fit riders 155 - 190 cm (5'1" - 6'3"), weighing up to 120 kg (265 lb)
- Third-party tested for safety & meets benchmark German cargo bike standard DIN 79010, with the frame and fork tested well beyond the requirements
- UL 2849 certified Bosch e-bike system & EN 15194 compliant, European standard for Electrically Power Assisted Cycles (EPACs)
Component Specifications
Frame & Build
| Frame | Tern Quick Haul Long, 6061-AL, DIN 79010 certified at 190 kg |
| Fork | Cargo, aluminum alloy, DIN 79010 certified at 190 kg |
Drivetrain & Motor
| Motor | Bosch Cargo Line, 85 Nm torque, 400% support, max 20 mph (US) / 25 kph (EU) |
| Battery | Bosch PowerPack 400 Wh (500 Wh upgrade available) |
| Range | 26-53 mi |
| Shifter & Derailleur | Tektro trigger, 1 x 9-speed |
| Cassette | Tektro 11-42T, 9-speed |
| Crankset | Tern custom, forged 6061-AL |
| Chain | KMC for eBike, 9-speed |
| Gear Range | 23"-89" (1.87-7.13 m) |
Brakes
| Front & Rear | Tektro hydraulic disc |
Wheels & Tires
| Rims | Tern Atlas H cargo |

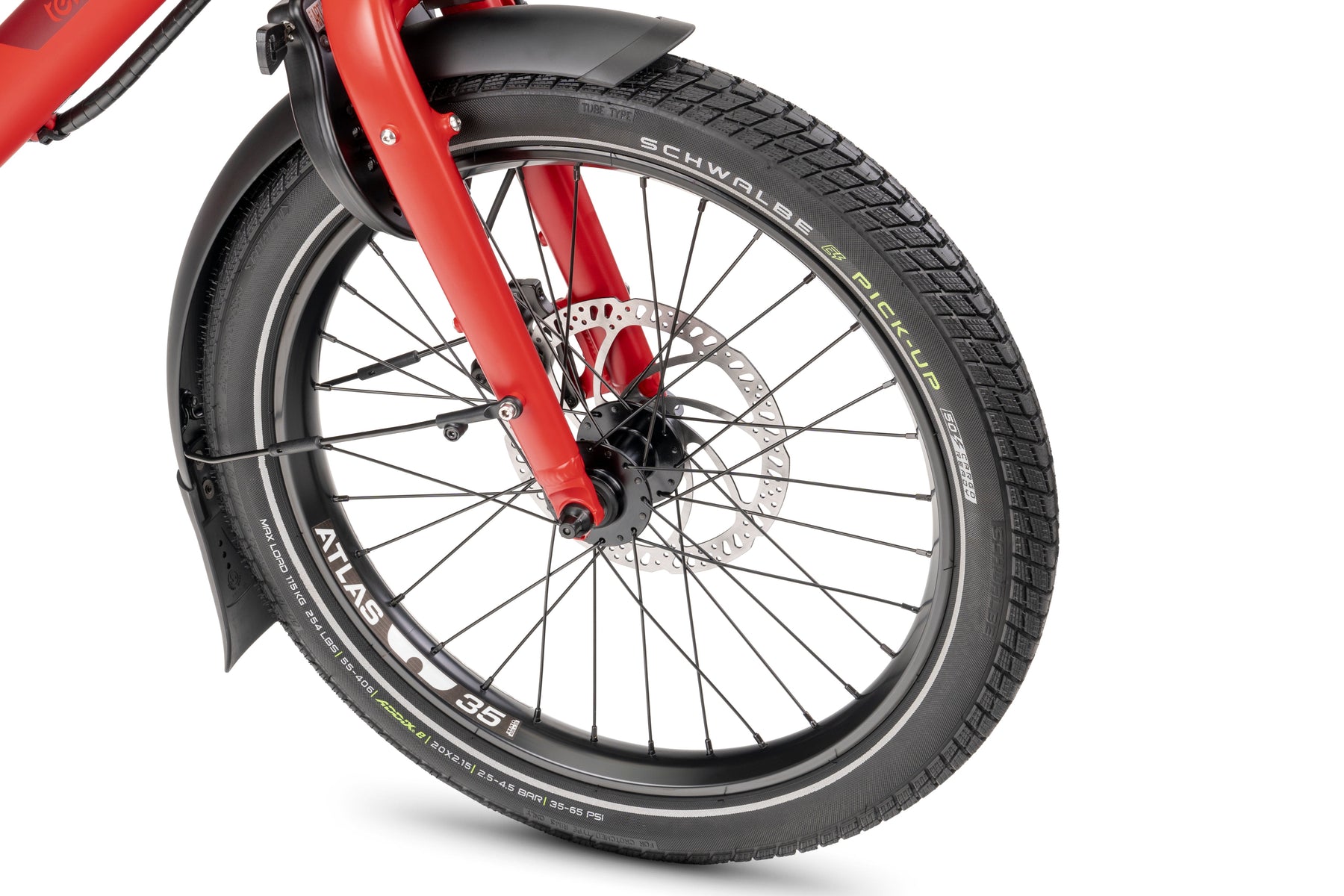

| Tires | Tern x Schwalbe Super Moto-X with Green Guard puncture protection |
| Hubs | Disc aluminum front; 9-speed disc aluminum Boost rear |
Capacity & Weight
| Bike Weight | 29.3 kg (64.6 lb) |
| Max Gross Vehicle Weight | 190 kg (418.9 lb) |
| Max Rider Weight | 120 kg (264.6 lb) |

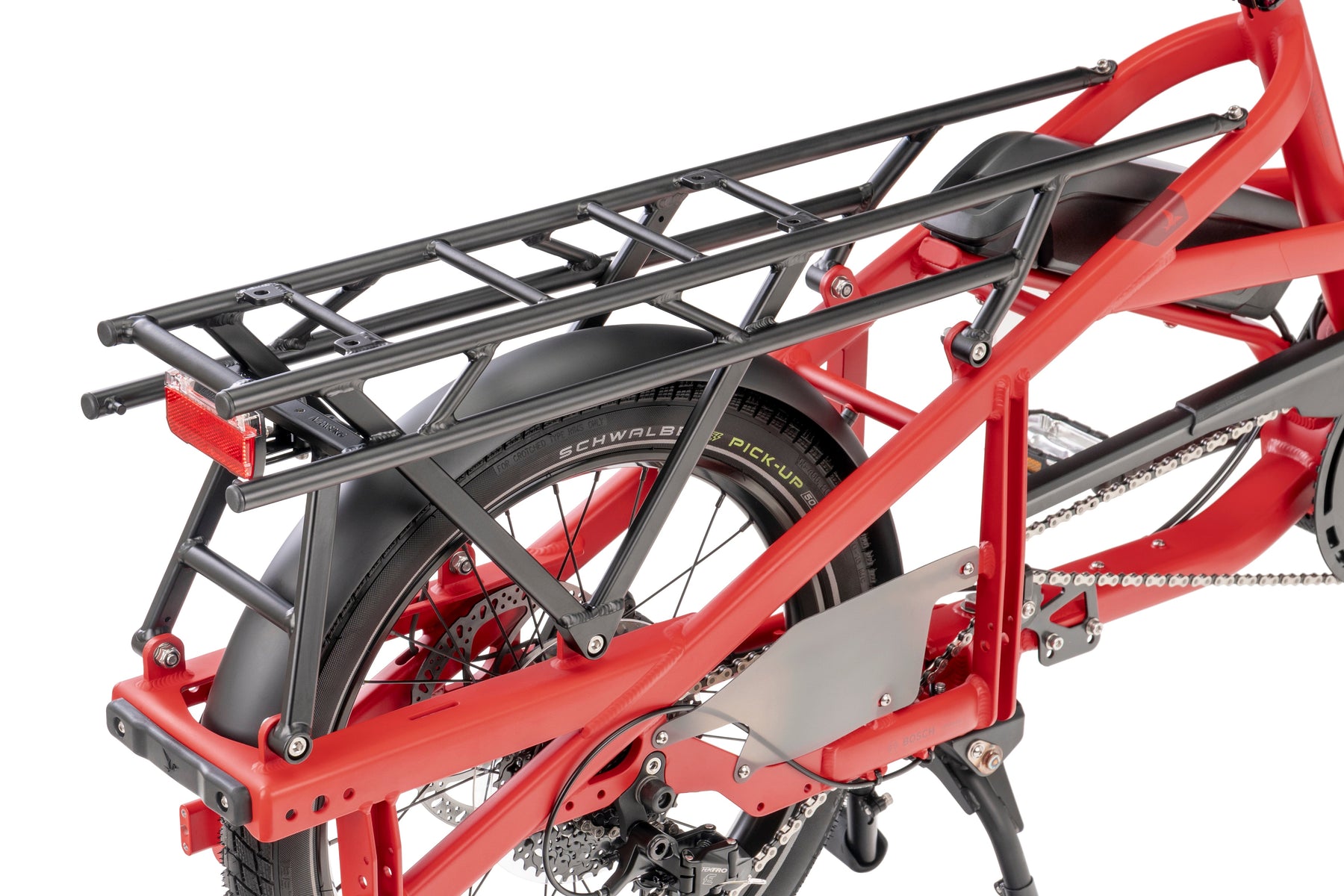

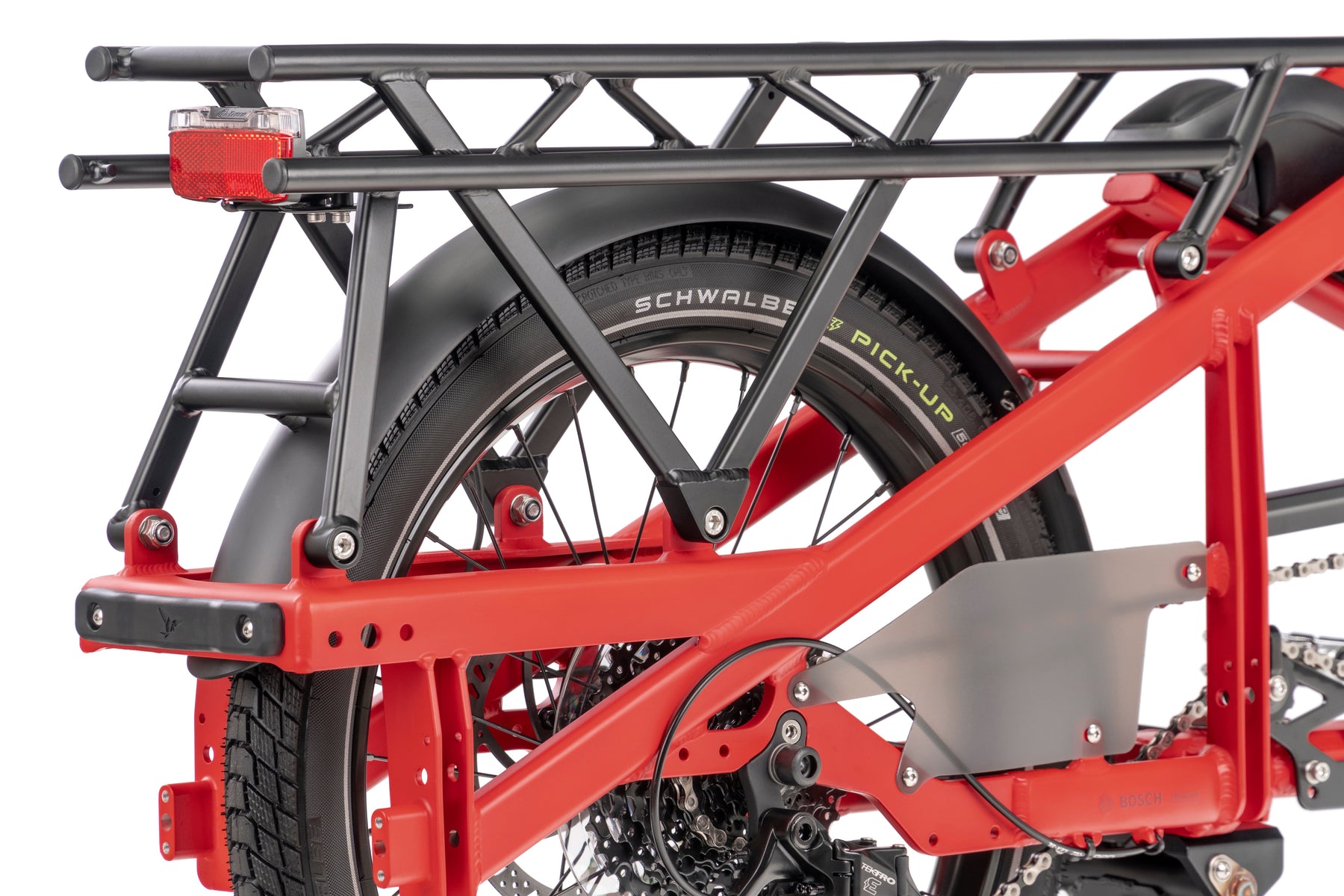

| Rear Rack Capacity | 90 kg (198 lb) |
Geometry
| Overall Size | 187 x 70 x 102.5 cm (73.6 x 27.6 x 40.4 in) |
| Wheelbase | 130 cm (51.2 in) |
| Standover Height | 48 cm (18.9 in) |
| Seatpost to Handlebar | 60-64 cm (23.6-25.2 in) |
| Saddle to Pedal | 76-99 cm (29.9-39 in) |
| Suggested Rider Height | 155-190 cm (5'1"-6'3") |
One-size frame; figures via ternbicycles.com/en/bikes/471/quick-haul-long-d9.
