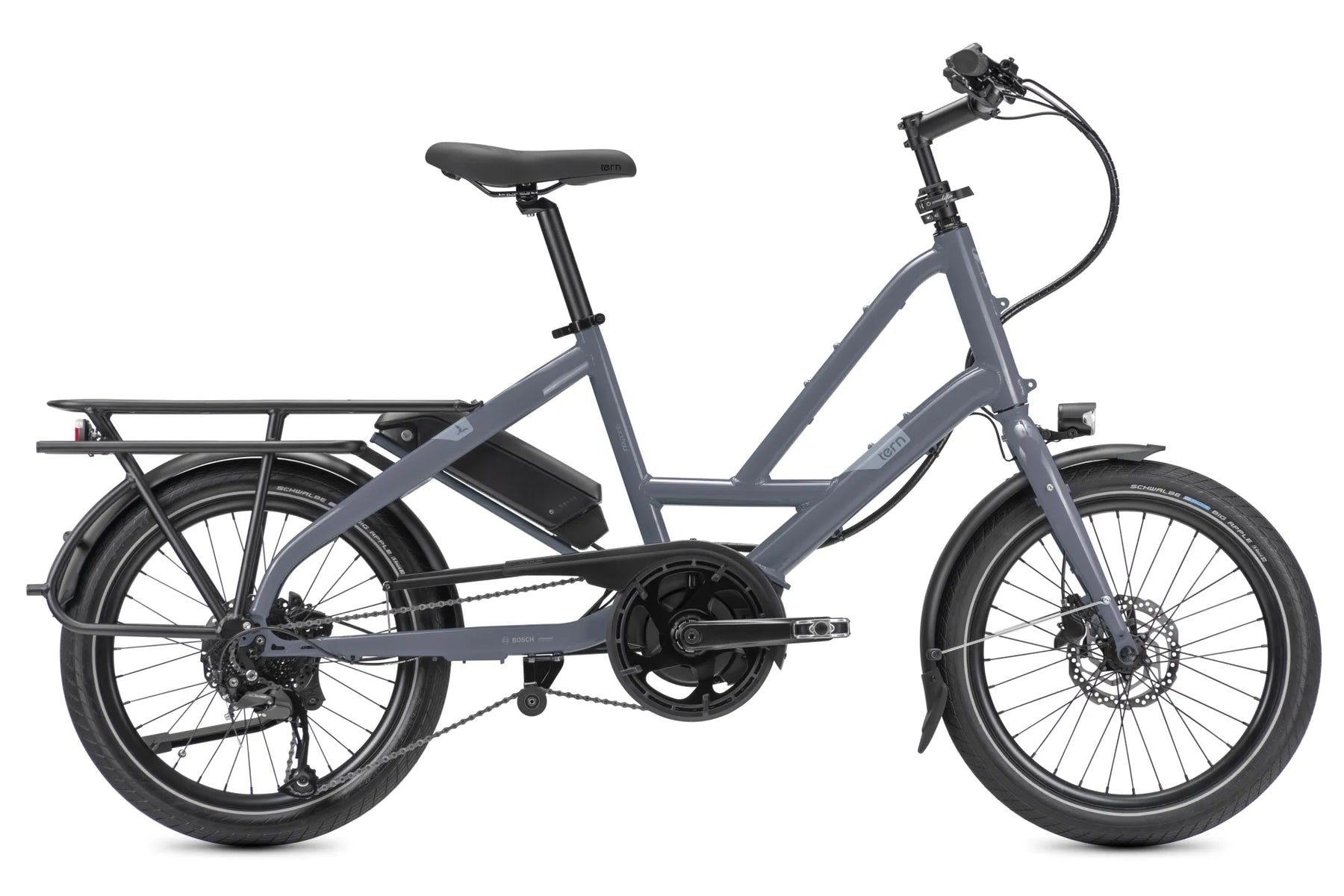

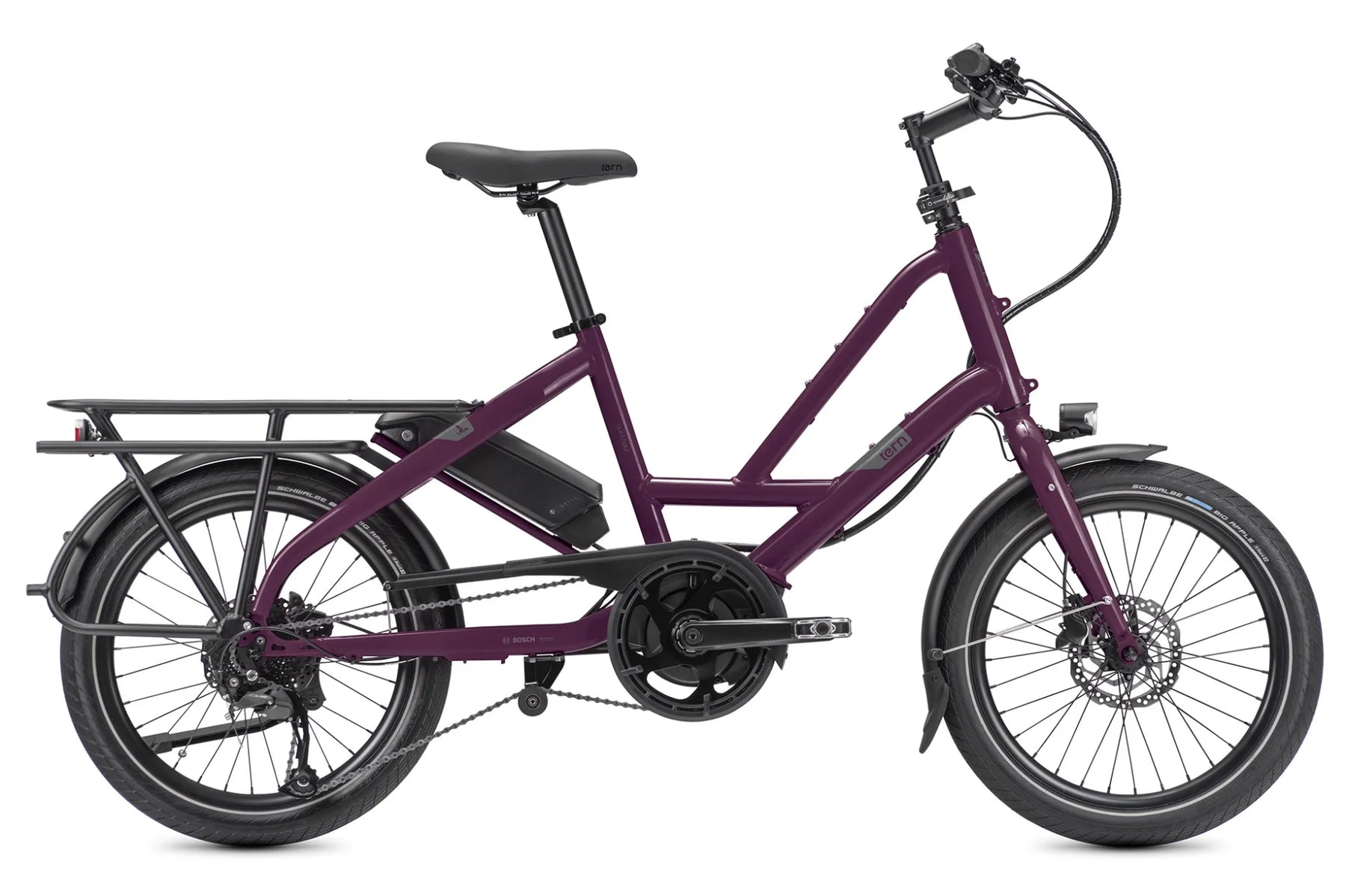

Tern Quick Haul P9 Sport
Quick Haul P9 Sport Overview
- Class 3 e-bike with Bosch Performance Sport motor provides up to 65 Nm of torque and 300% support, max speed of up to 28 mph
- 1 x 9-speed Shimano Alivio groupset with trigger shifter
- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
- Fits riders 160 - 195 cm (5'3" - 6'5"), and also riders 145 - 180 cm (4'9" - 5'11") when equipped with a shorter, 350 mm seatpost
- Lots of available kid- and cargo-carrying accessories to build your perfect setup
- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
- Shimano hydraulic disc brakes for reliable stopping power, even when heavily loaded and riding fast
- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight
- UL 2849 certified Bosch e-bike system & EN 15194 compliant, European standard for Electrically Power Assisted Cycles (EPACs)
Component Specifications
Frame & Build
| Frame | Tern Quick Haul, patented design, 6061-AL, EFBE Tri-Test approved: 150 kg |
| Fork | Cargo, steel, EFBE approved: 150 kg |
| Cockpit | Speedlifter stem, 150 mm extension, 3D forged (31.8mm); low riser handlebar |
Drivetrain & Motor
| Motor | Bosch Performance Sport, 65 Nm torque, 300% support, max speed up to 28 mph (Class 3) |
| Battery | Bosch PowerPack 400 (400 Wh) |
| Range | 31.7-62.1 mi |
| Charger | Compact charger, 100-240V, 2A |
| Shifter | Shimano Alivio, 1 x 9-speed, trigger |
| Derailleur | Shimano Alivio Shadow |
| Cassette | Shimano 11-34T, 9-speed |
| Crankset | Tern custom, forged 6061-AL |
| Chain | KMC eBike, 9-speed |
| Gear Range | 31"-95" (2.45-7.57 m) |
Brakes
| Front & Rear | Shimano hydraulic disc |
Wheels & Tires
| Hubs | Shimano disc, front and rear |
| Rims | Kinetix Comp, disc-compatible |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
Capacity & Weight
| Bike Weight | 23 kg (50.7 lb) |
| Max Gross Vehicle Weight | 150 kg (330.7 lb) |
| Max Rider Weight | 120 kg (264.6 lb) |
| Rear Rack Capacity | 50 kg |
| Optional Front Rack Capacity | 20 kg |
Geometry
| Overall Size | 172.5 x 70 x 102.5 cm (67.9 x 27.6 x 40.4 in) |
| Standover Height | 490 mm |
| Seatpost to Handlebar | 60-64 cm (23.6-25.2 in) |
| Saddle to Pedal | 68-110 cm (26.8-43.3 in) |
| Suggested Rider Height | 160-195 cm (5'3"-6'5"); 145-180 cm (4'9"-5'11") with optional 350 mm seatpost |
One-size frame; figures via ternbicycles.com/nz/bikes/471/quick-haul-p9-sport (US-spec page uses the same base geometry, Class-3 28 mph Performance Sport motor tune). This Class 3 e-bike is speed-capped at 25 mph when shipped to New York City per local regulation.
