Name: Tern Eclipse D16
Brand: Tern
SKU: 16-6-10
Price: 1299.0 USD
Availability: InStock

$1,299.00

Shipping calculated at checkout.

In stock, ready to ship
Backordered, shipping soon

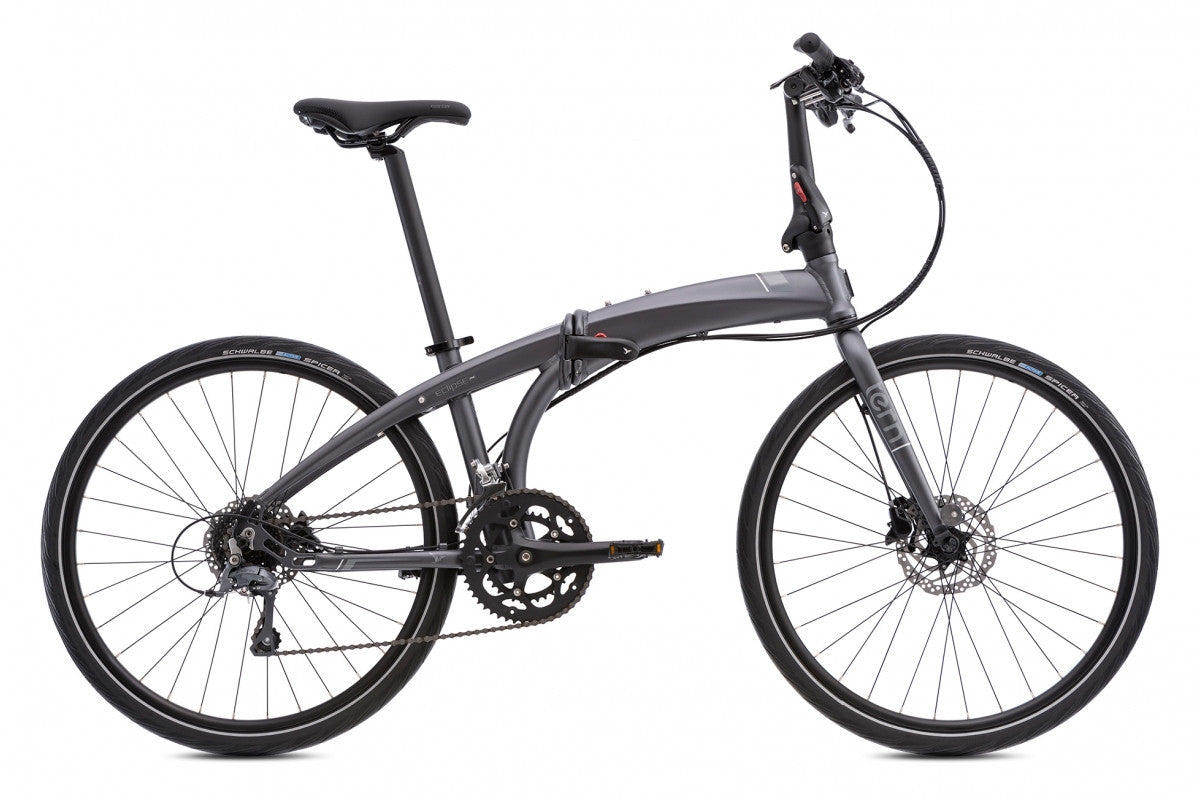

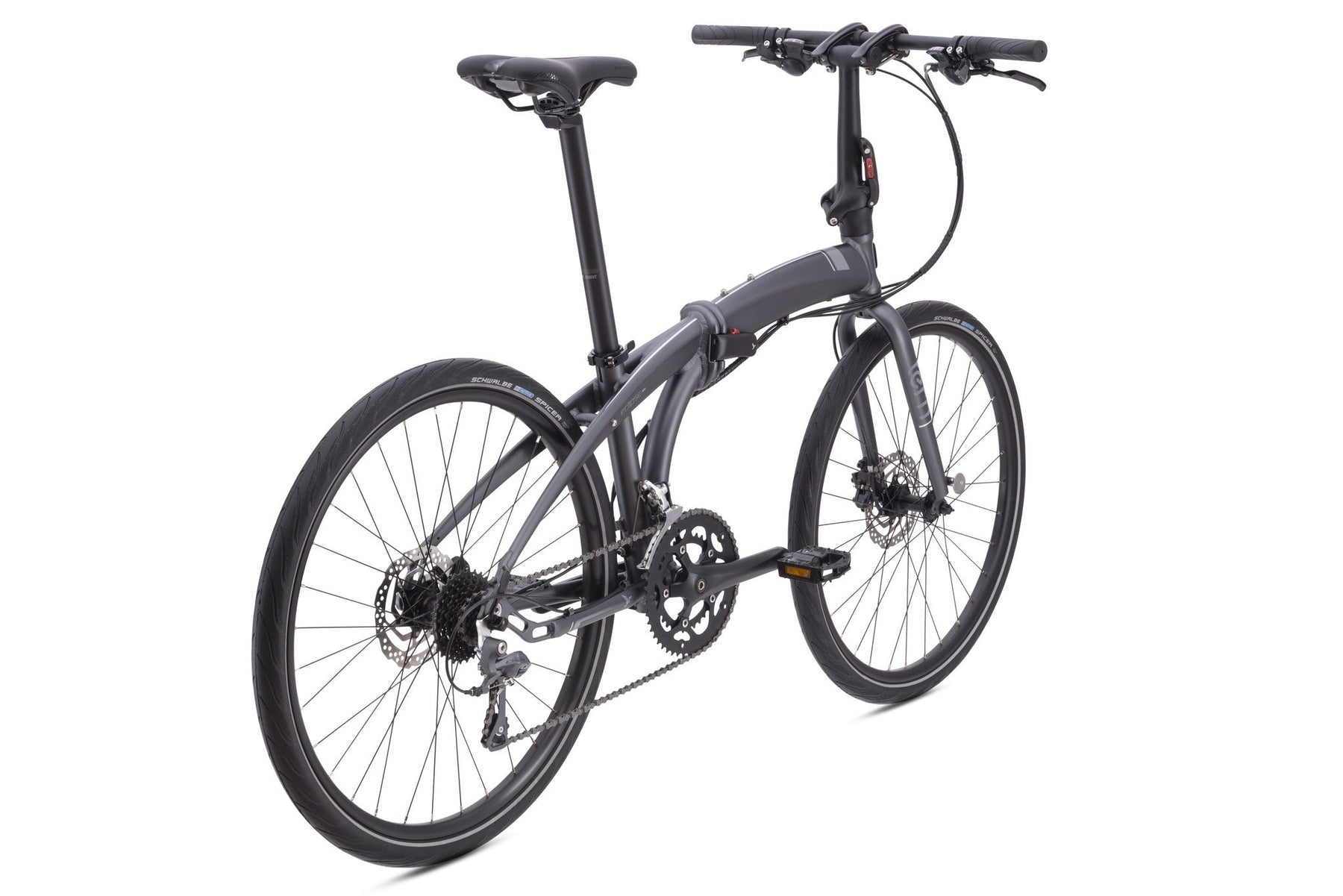

Eclipse D16 Overview

The Eclipse D16 delivers the best price-to-performance ratio of any bike in our lineup. Designed with full-sized 26” wheels, hydraulic disc brakes, and a massively stiff hydroformed Eclipse frame, it ticks all the boxes. Somehow, we managed to get it all in there at an amazing price.

Best-riding introductory bike in our lineup, thanks to large 26” wheels and our unique folding technology
Folds in 10 seconds or less—store it indoors or transport it in your car
Resizes in seconds to fit a wide range of riders
Tool-free adjustable handlebar stem lets you change riding positions on the fly
Fenders for rainy days (included)

Component Specifications

Frame & Fork

Frame	Tern Eclipse, hydroformed aluminum, 3 patented technologies
Fork	Integrated, hi-tensile steel

Drivetrain

Configuration	2x8
Crankset	Forged 6061 aluminum, 50/34T
Cassette	Shimano, 11-30T, 8 spd
Shifters	Shimano, trigger, 2x8 spd
Derailleurs	Shimano Altus (front), Shimano Claris (rear)
Gear Range	29" - 115" (2.28 - 9.14 m)

Brakes

Front & Rear

Shimano hydraulic disc

Wheels & Tires

Rims	Doublewall aluminum, disc only
Hubs	Shimano, Centerlock disc
Tires	Schwalbe Spicer, 40-559, Kevlar puncture protection, Reflex

Cockpit

Handlepost	Tern Physis 3D, 3D-forged, 5 patented technologies

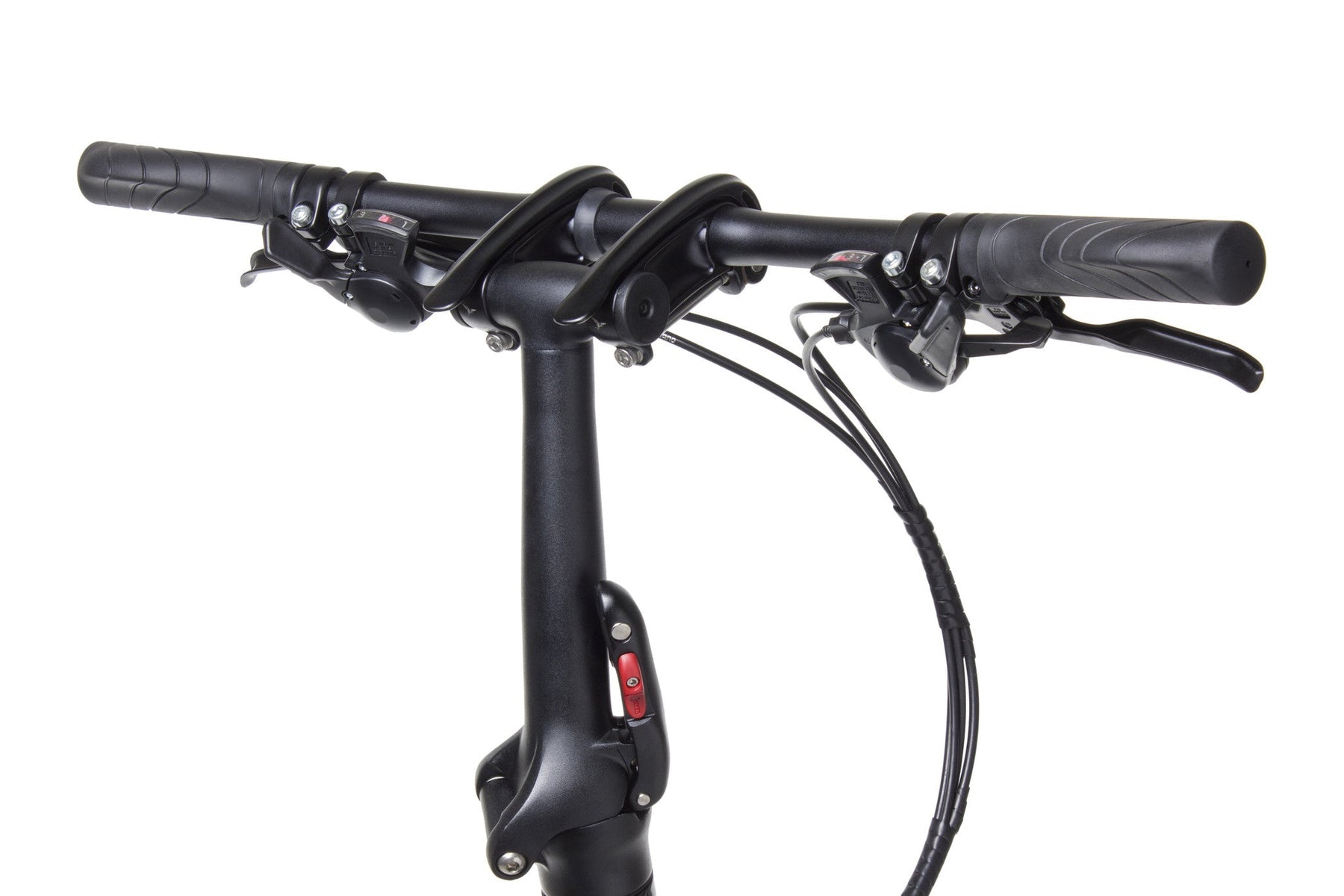

Stem	Tern Andros, adjustable, forged construction, patented technology
Saddle	Tern Porter, patented GripPad design

Geometry & Fit

Weight	14.8 kg (32.6 lb)

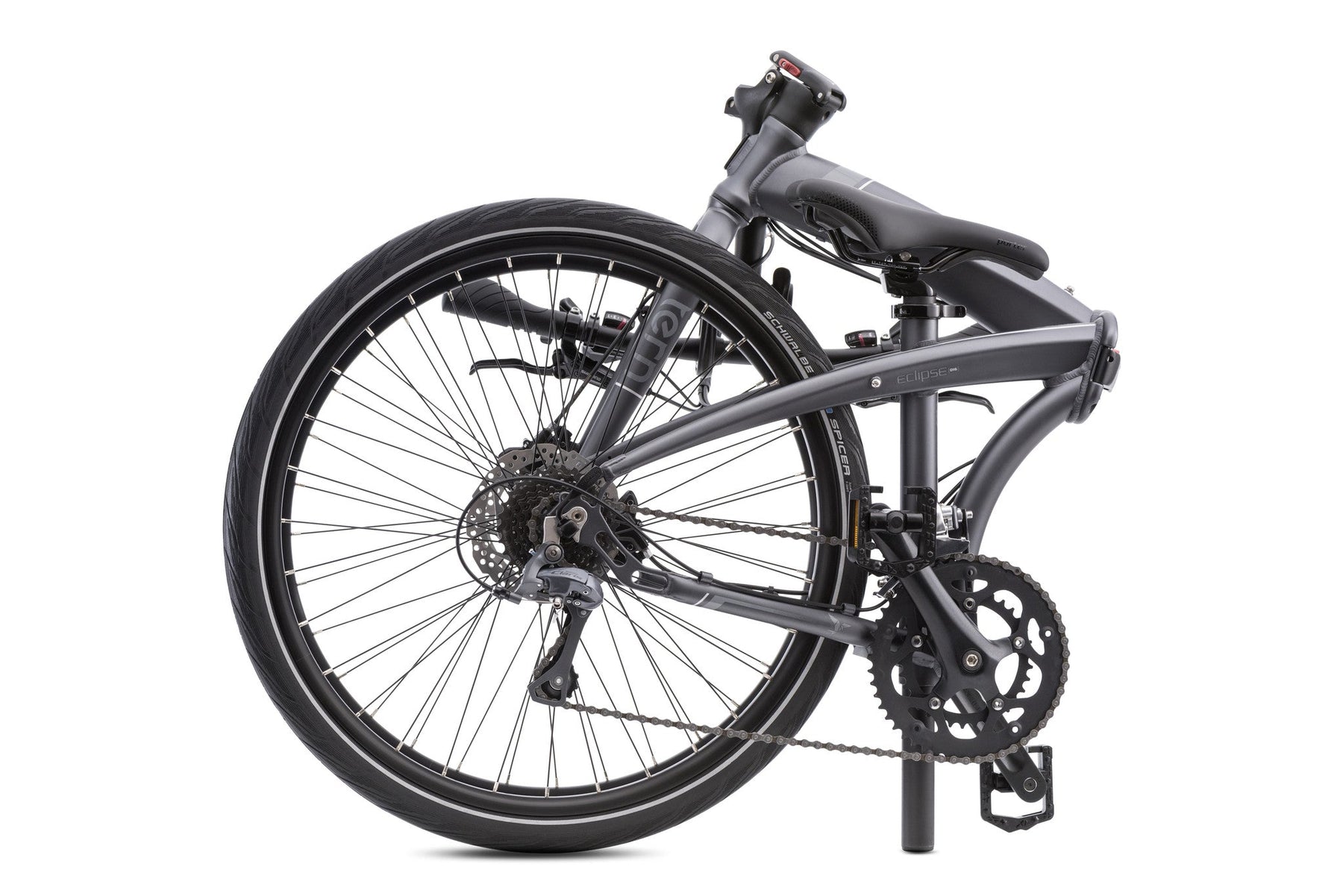

Folded Size	44 x 91 x 75 cm (17.3 x 35.8 x 29.5 in)
Folding Time	10 seconds
Frame Size	One size
Suggested Rider Height	148 - 195 cm (58.3 - 76.8 in)
Seatpost-to-Handlebar Distance	63 - 70 cm
Saddle-to-Pedal Distance	79.5 - 105 cm
Max Load	105 kg (231.5 lb)

Tern builds the Eclipse D16 as a single adjustable-fit frame (reach/saddle ranges above) rather than multiple sized frames; no seat tube/top tube/wheelbase chart is published.
