Tern GSD P00 (Gen 3) Electric Cargo Bike
What makes it a P00?
- User-friendly Bosch e-bike system with Purion display helps you stay informed and in control on the road
- Dual-battery compatible, ready to power through heavy use and long distances of up to 207 km (129 mi)
- Silent, smooth, and low-maintenance Gates Belt Drive
- Enviolo Heavy Duty internally geared hub with 380% gear range and twist shifter, offering effortless shifting to tackle various terrains
GSD highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura 4-piston hydraulic disc brakes deliver precise and responsive stopping power
- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified Bosch e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
- EN 15194 compliant, European standard for Electrically Power Assisted Cycles (EPACs)
Component Specifications
Frame & Build
| Frame | Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg |

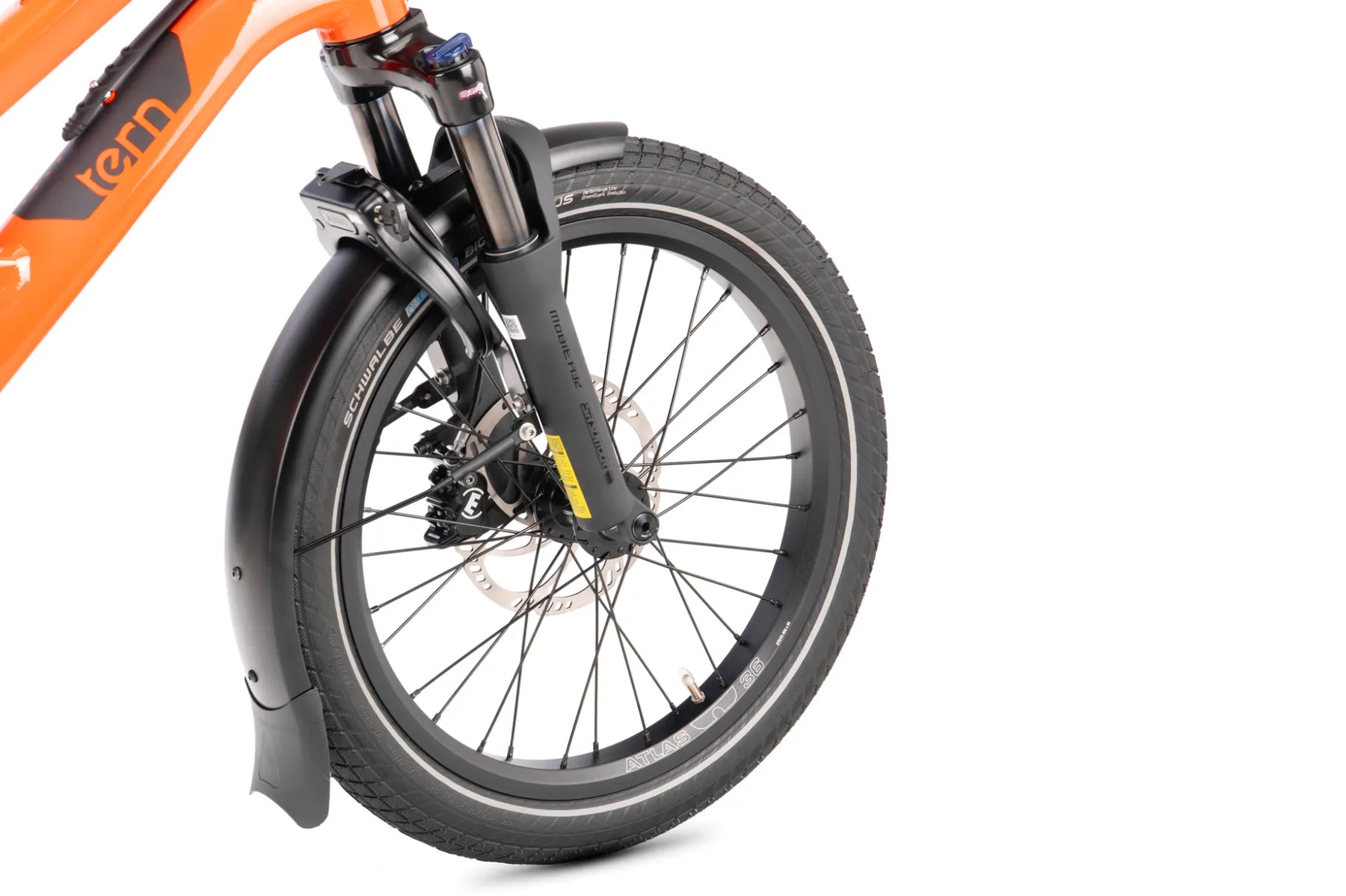

| Fork | Suntour custom for Tern, 1.5" tapered chromoly steerer, 32 mm stanchions |

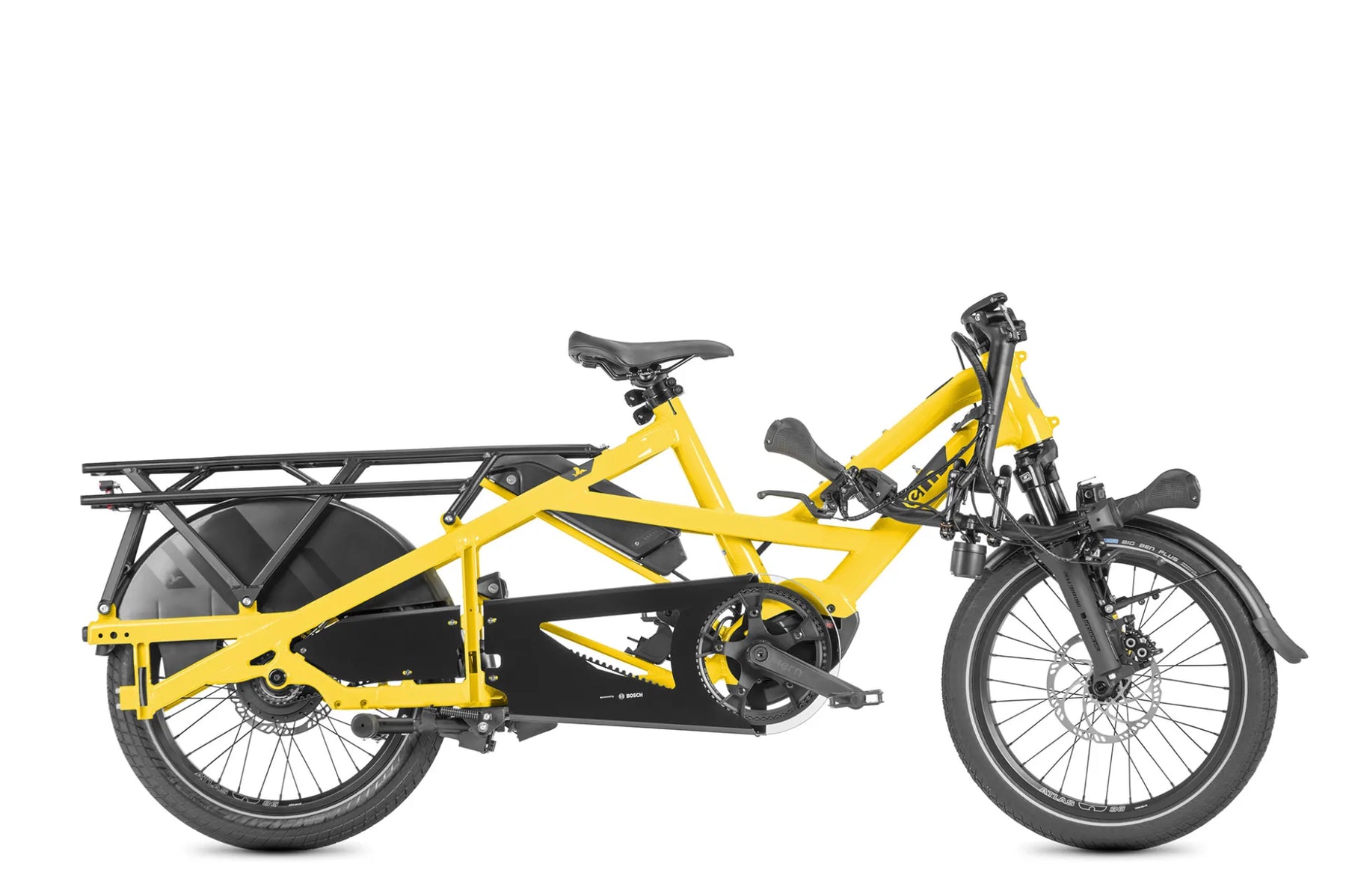

| Folding | Folds in 5 seconds; folded size 182 x 46 x 87 cm (71.7 x 18.1 x 34.3 in) |
Drivetrain & Motor

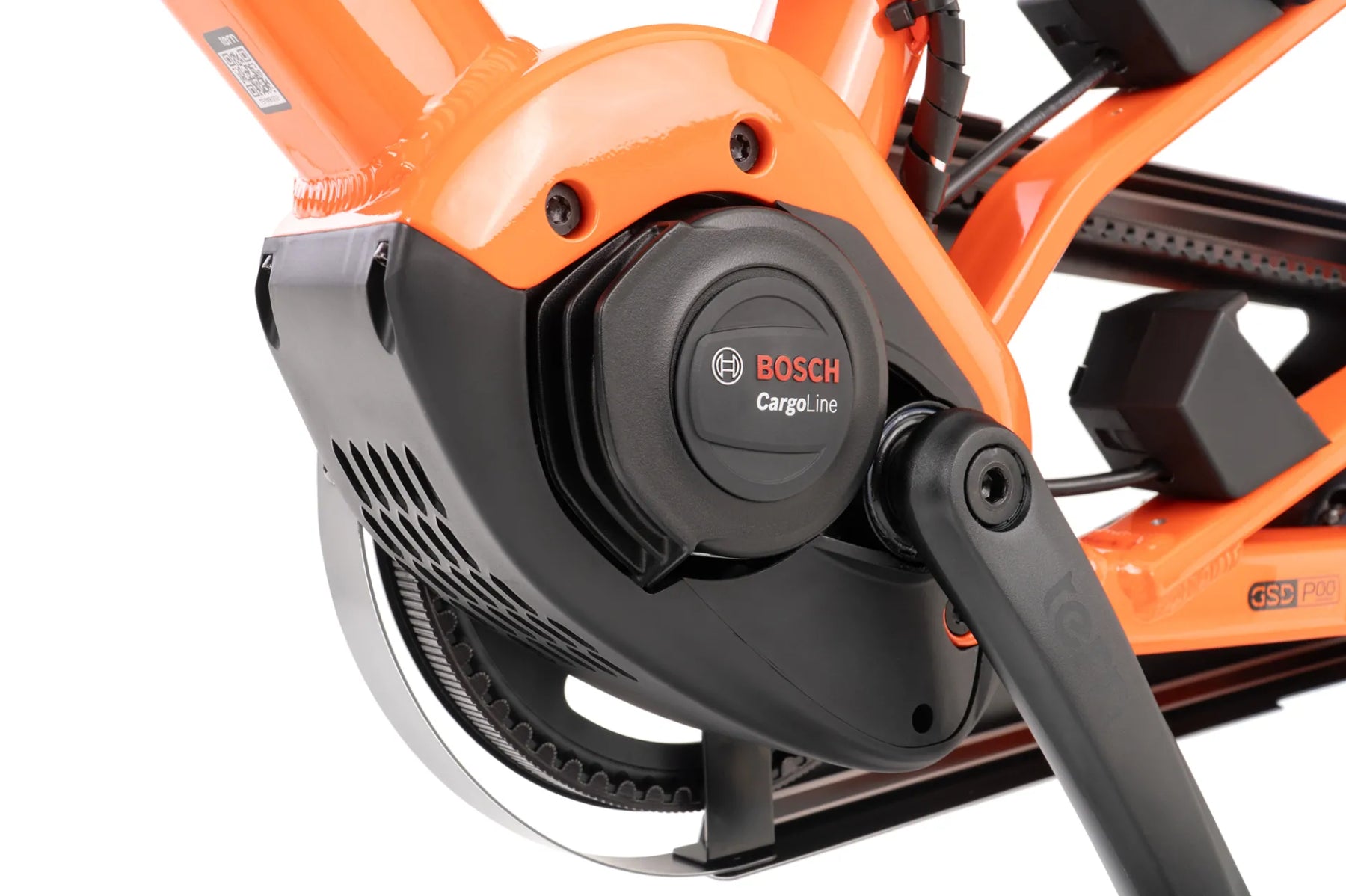

| Motor | Bosch Cargo Line, 85 Nm torque, 400% support, max 20 mph (US) |

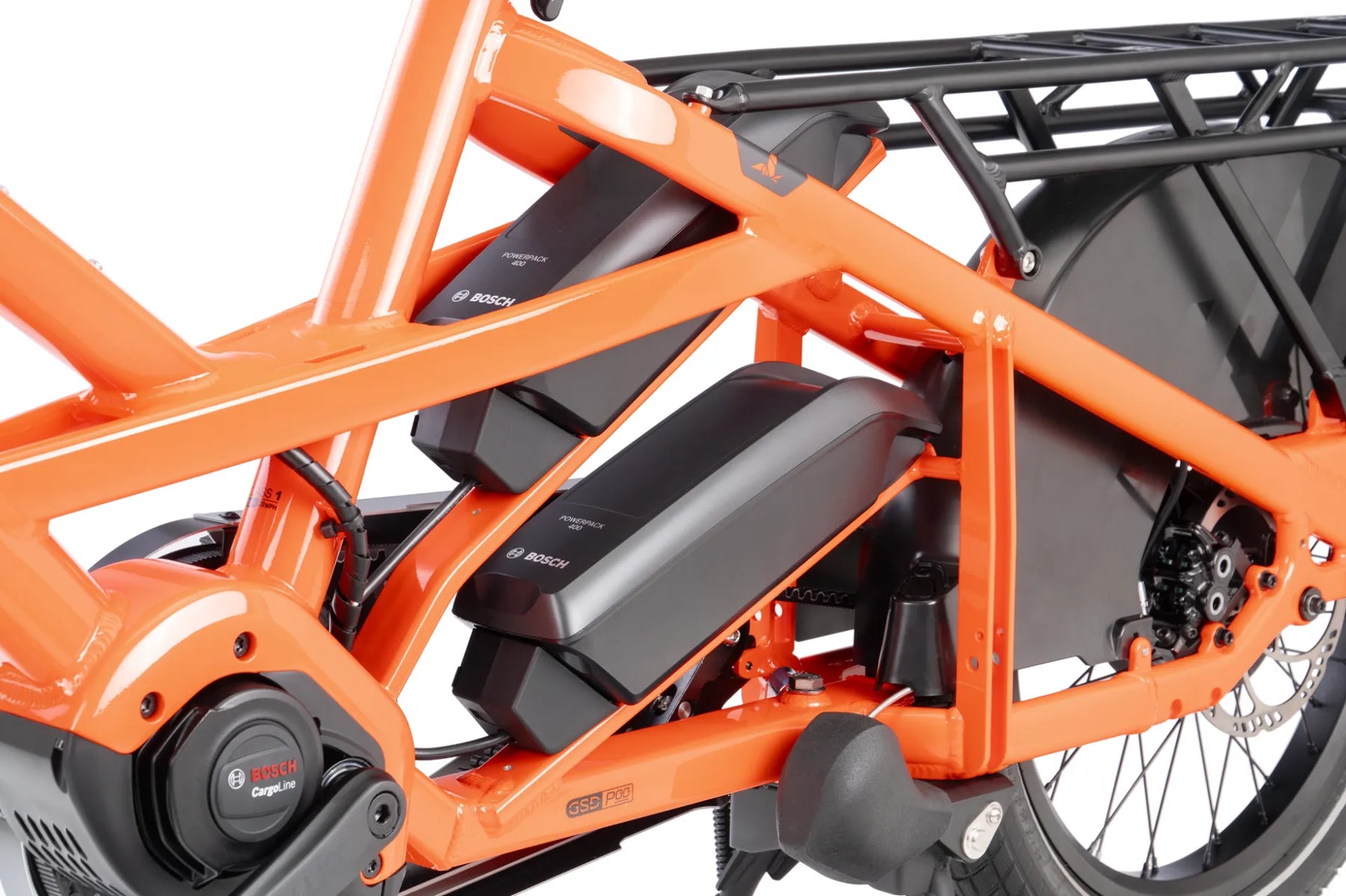

| Battery | Bosch 500 PowerPack, dual-battery compatible, up to 1000 Wh total |

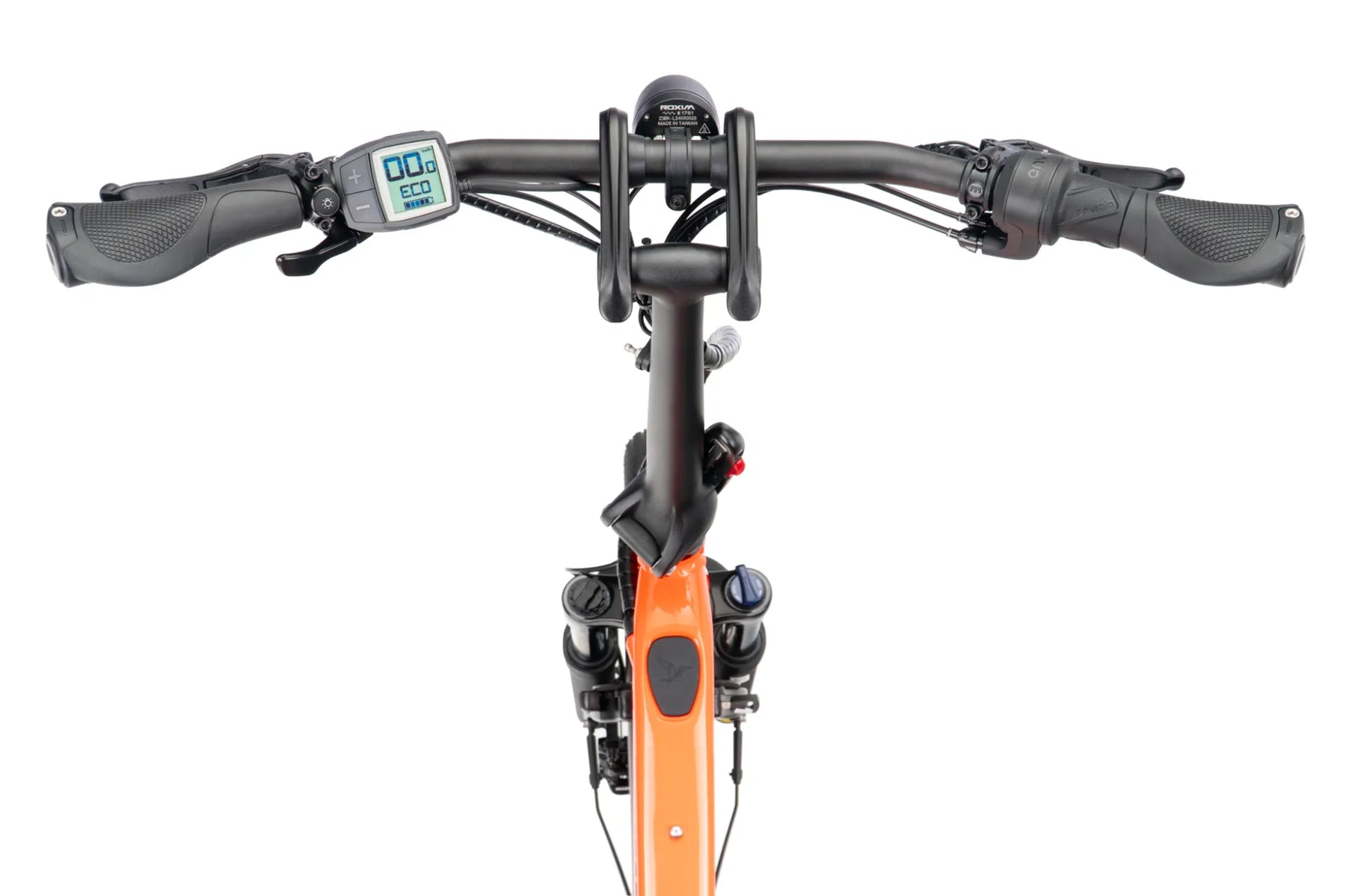

| Display | Bosch Purion |
| Range | 25-63 mi on 500 Wh; 51-129 mi on 1000 Wh |
| Shifter | Enviolo twist-shift, continuously variable, 380% range |
| Drive | Gates Carbon Drive CDX belt, Tern GSD crankset with Gates CDX beltring |
Brakes
| Front & Rear | Magura MT5, 4-piston hydraulic disc, 180 mm rotor |
Wheels & Tires
| Wheels | Tern Atlas heavy-duty cargo wheels, 36 mm rims |
| Front Tire | Schwalbe Big Ben Plus with puncture protection |
| Rear Tire | Tern x Schwalbe Super Moto-X with puncture protection |
Capacity & Weight
| Bike Weight | 35.75 kg (78.8 lb) |
| Max Gross Vehicle Weight | 210 kg (463 lb) |
| Max Rider Weight | 130 kg (286.6 lb) |

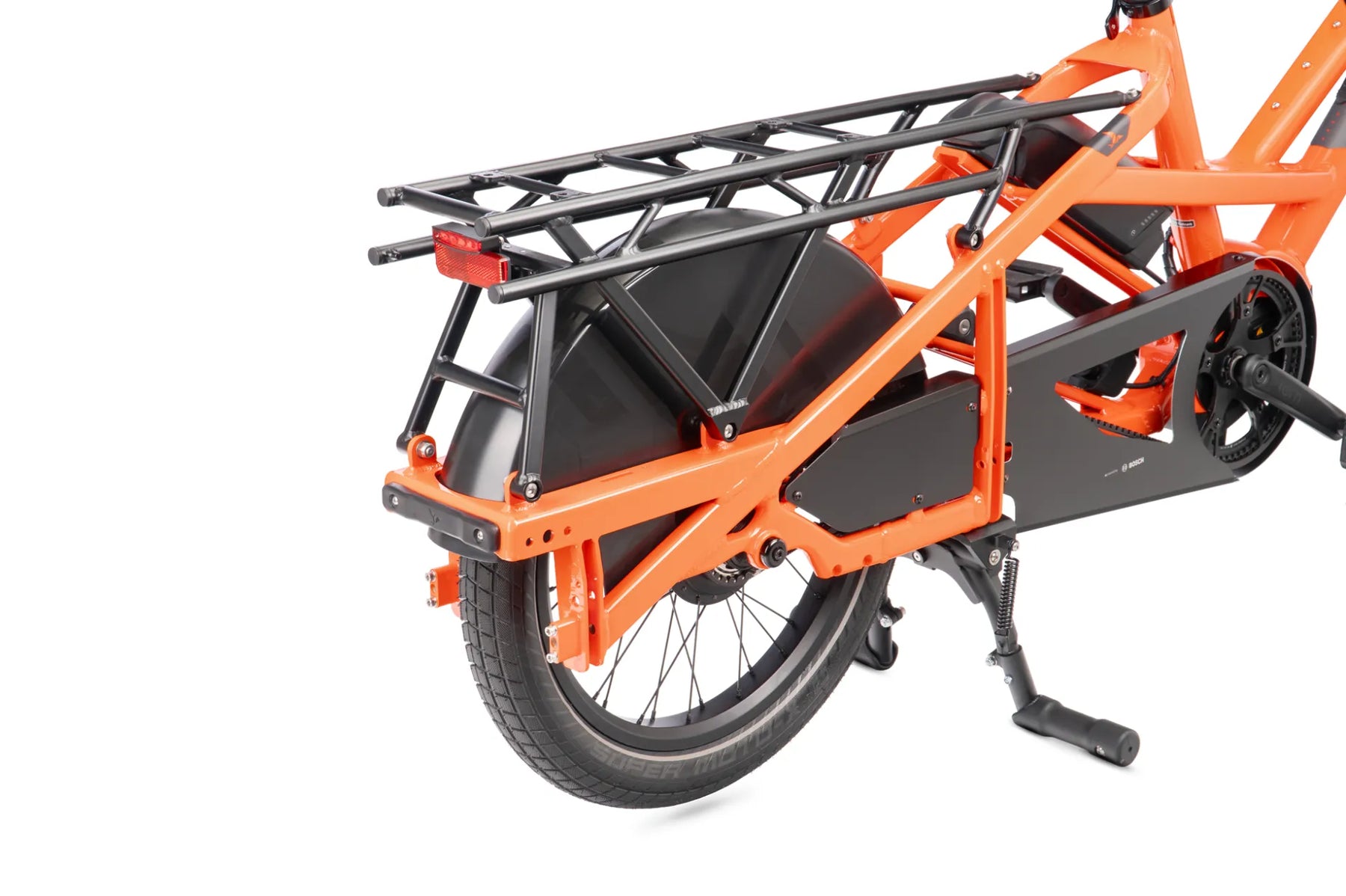

| Rear Rack Capacity | 100 kg (220 lb) |
| Suggested Rider Height | 150-200 cm (59.1-78.7 in) |
Geometry
| Overall Size | 191 x 68 x 116 cm (75.2 x 26.8 x 45.7 in) |
| Wheelbase | 135 cm (53.1 in) |
| Standover Height | 49 cm (19.3 in) |
| Seatpost to Handlebar | 49-59 cm (19.3-23.2 in) |
| Saddle to Pedal | 69-105 cm (27.2-41.3 in) |
| Gear Range | 24"-90" (1.9-7.2 m) |

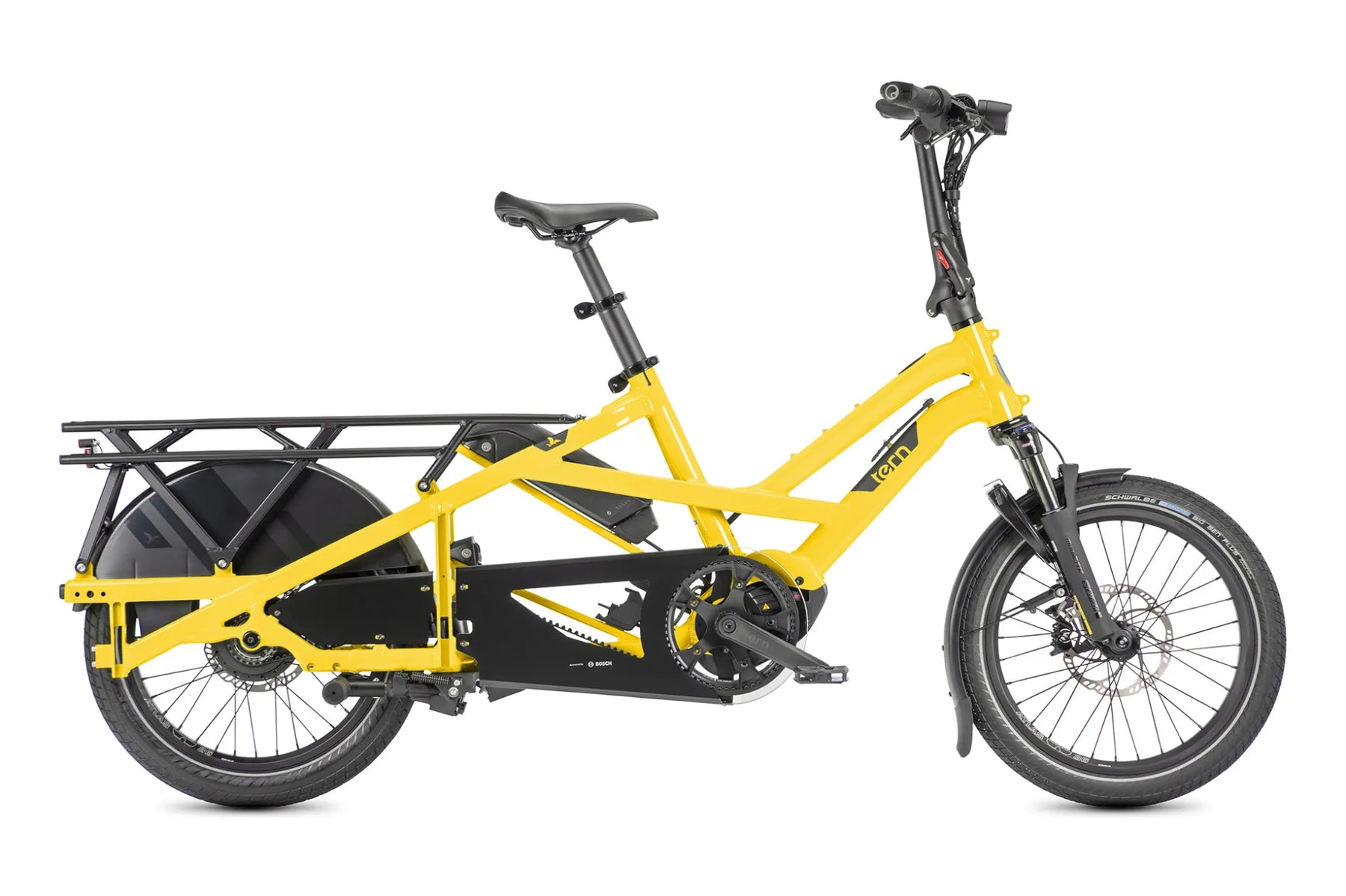

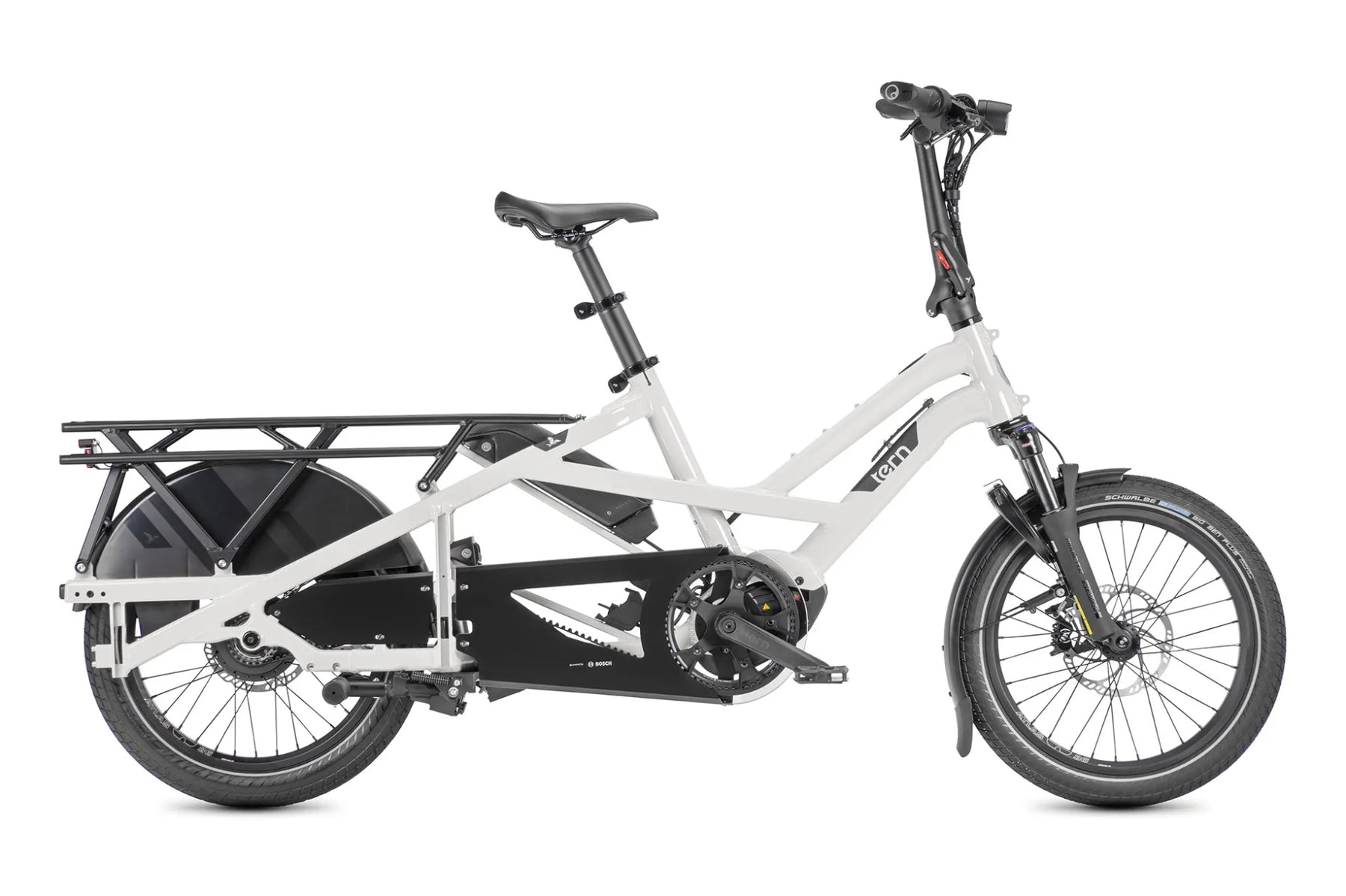

GSD P00 is a one-size-fits-most frame (adjustable cockpit); figures via ternbicycles.com/us/bikes/473/gsd-p00. North American colorway availability may differ from photos (School Bus Yellow / Pearl White / Satin Midnight Blue).
