Tern GSD R14 (Gen 3) Electric Cargo Bike
What makes it an R14?
- Bosch Smart System with Kiox 300 color display enhances your eBike experience with smart features for theft protection, ride customization, navigation, and more
- Bosch Anti-Lock Braking System enables safer, more efficient braking

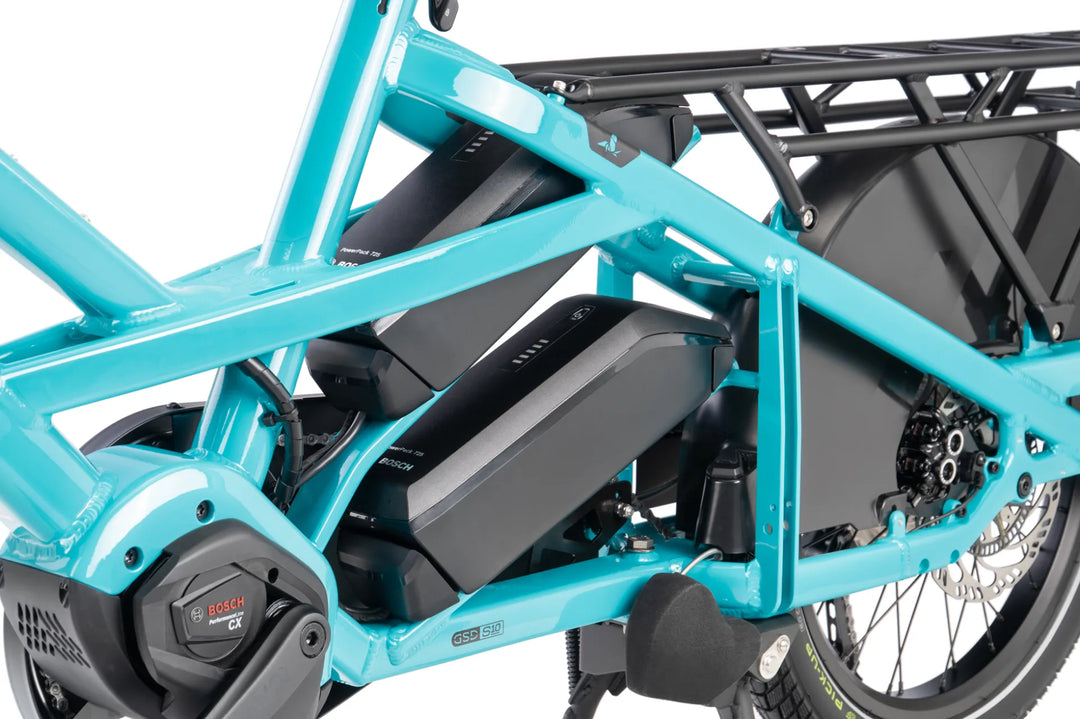

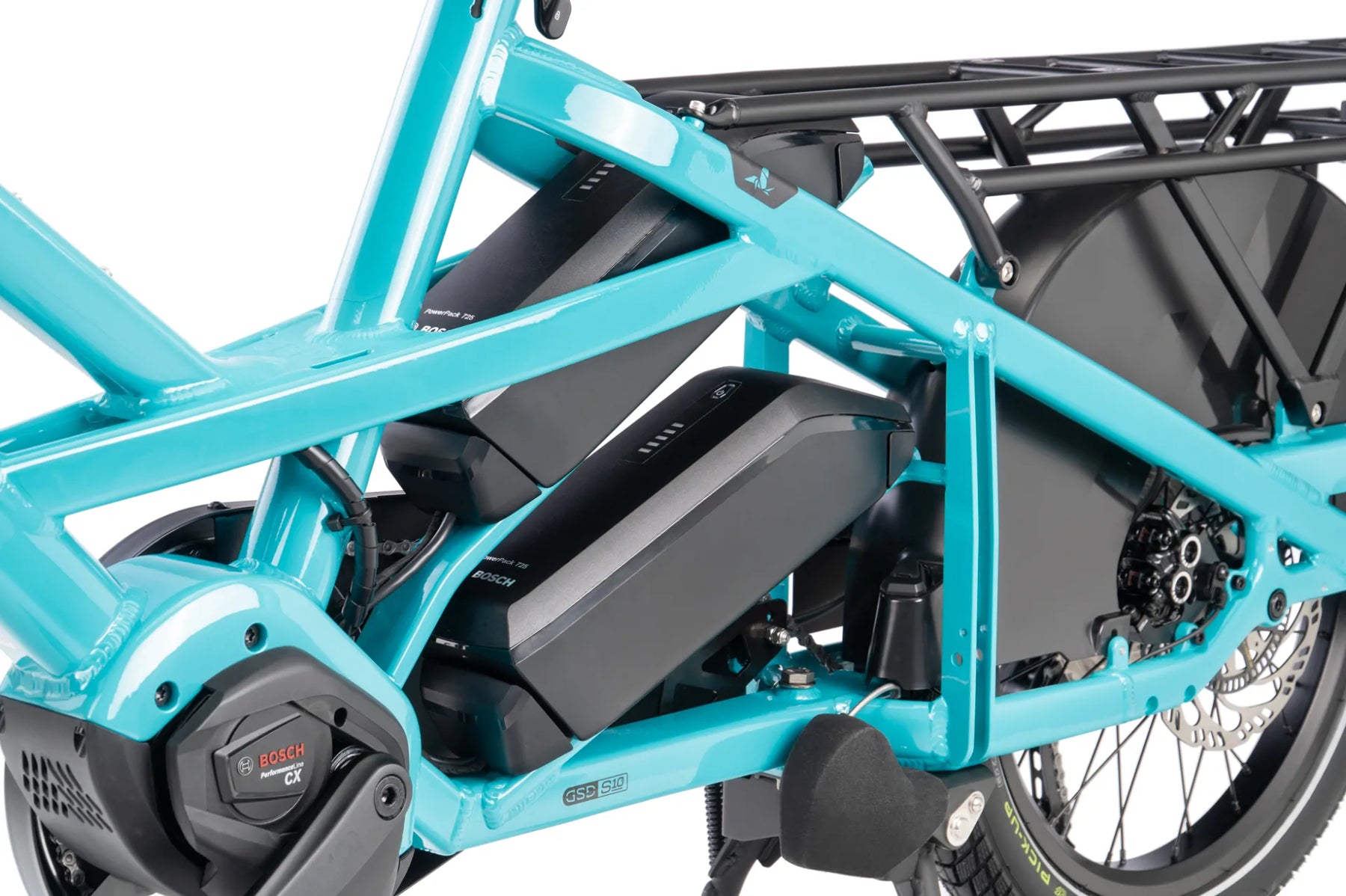

- Dual-battery compatible, ready to power through heavy use and long distances of up to 288 km (179 mi)
- Silent, smooth, and low-maintenance Gates Belt Drive

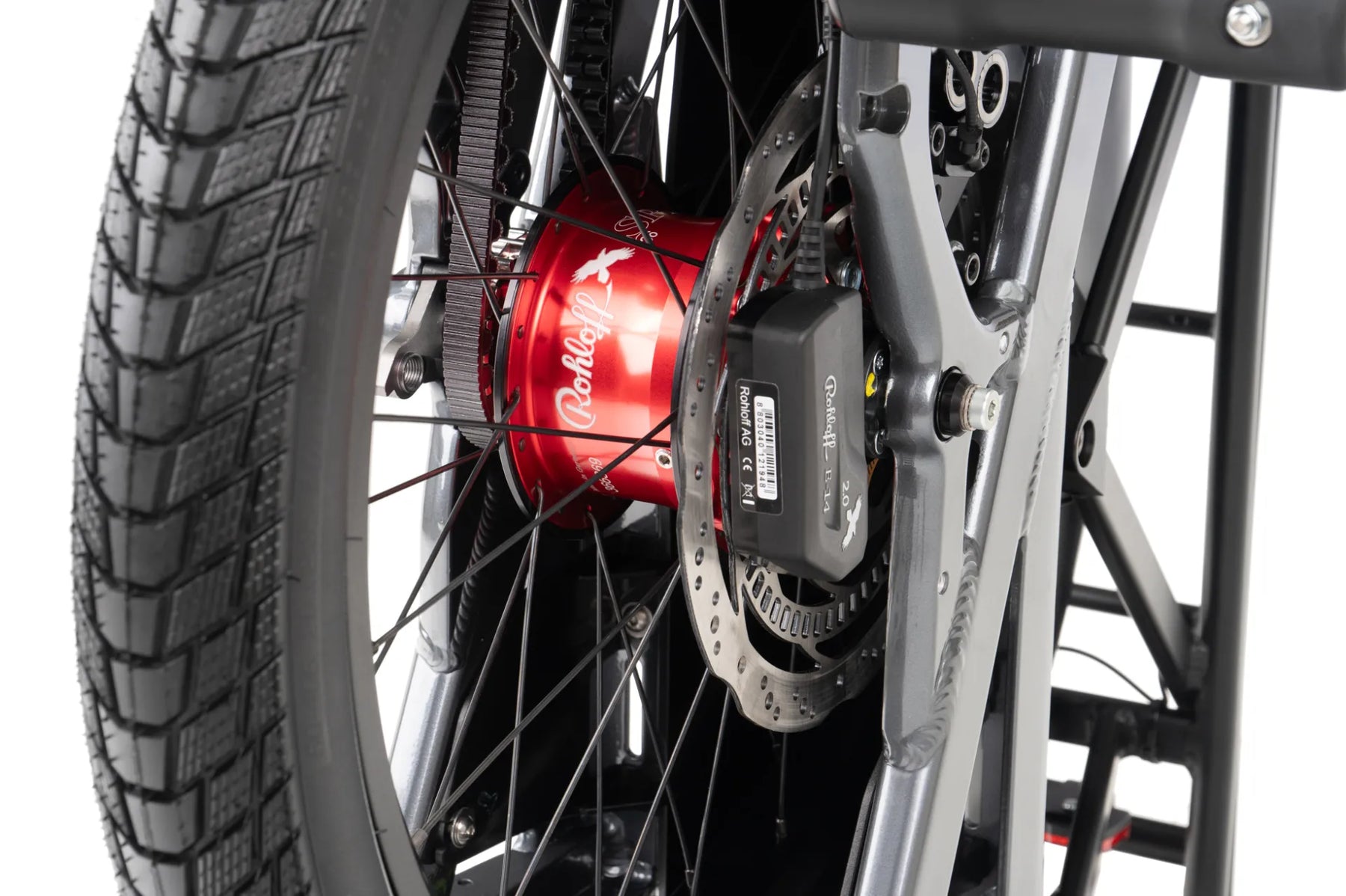

- Maintenance-free Rohloff E-14 electronic shifter with a huge 526% gear range, perfect for tackling various terrains and riding styles with ease
GSD highlights

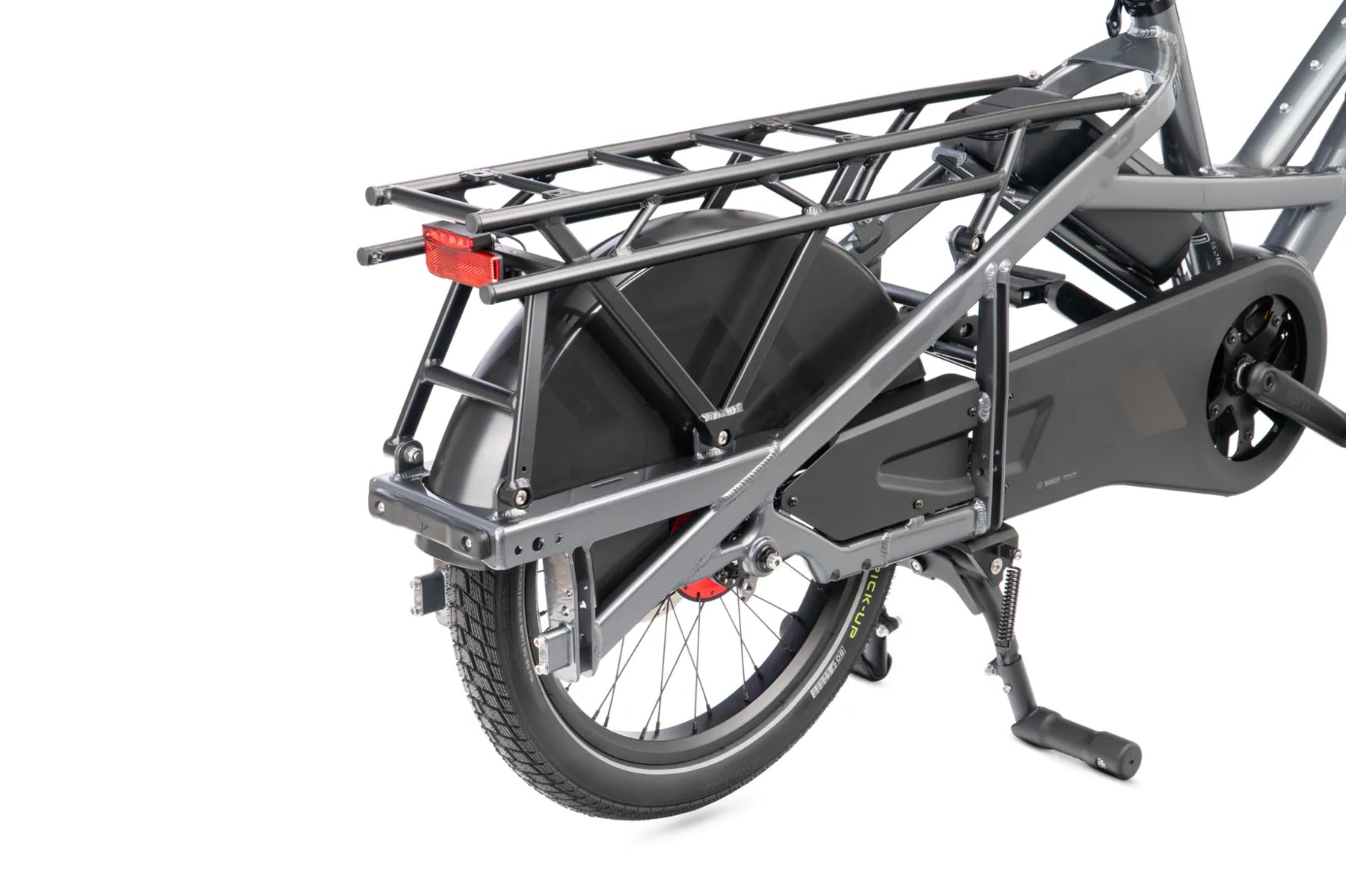

- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura 4-piston hydraulic disc brakes deliver precise and responsive stopping power

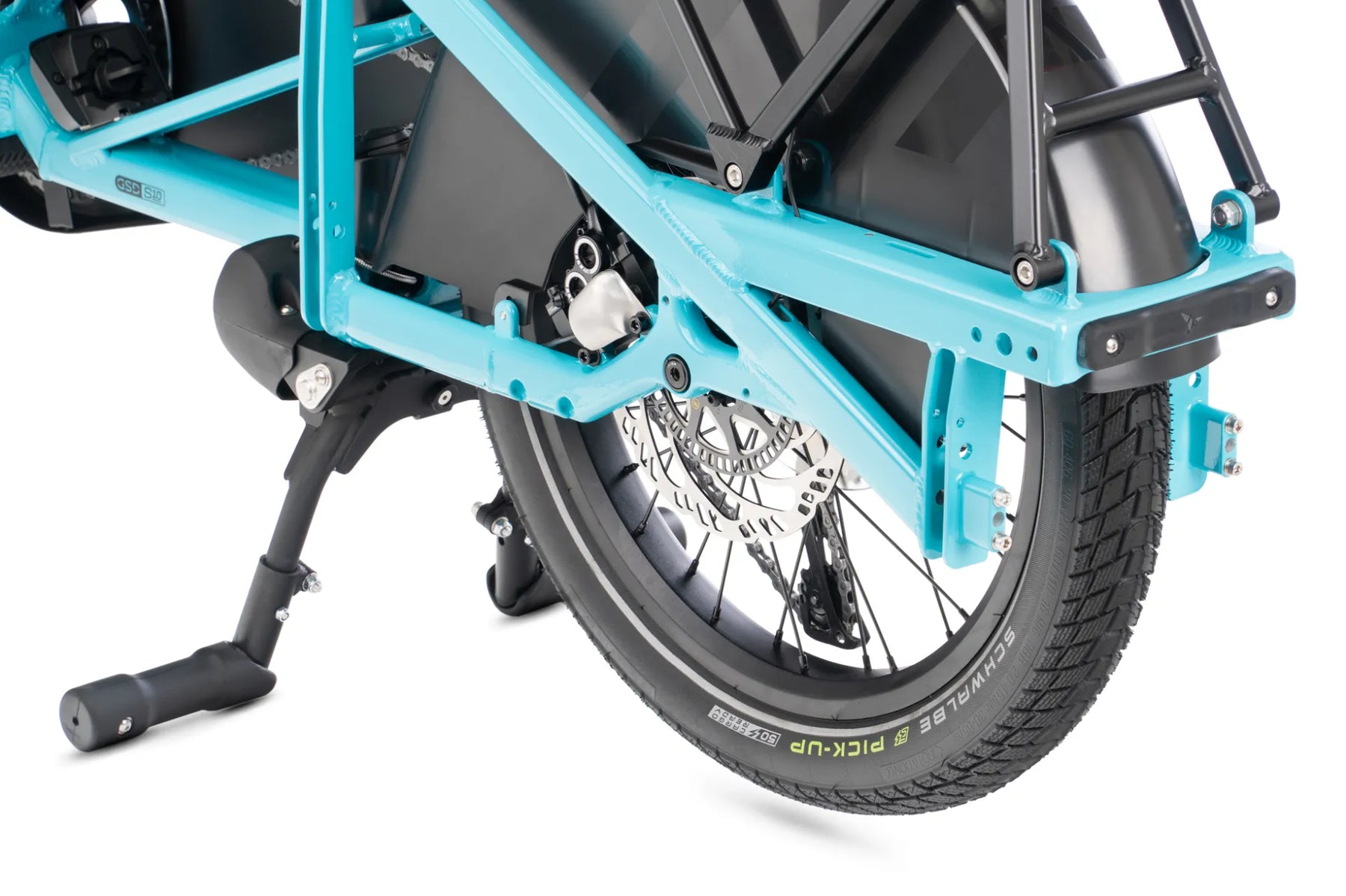

- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified Bosch e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
- EN 15194 compliant, European standard for Electrically Power Assisted Cycles (EPACs)
Component Specifications
Frame & Build
| Frame | Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 462 lb |

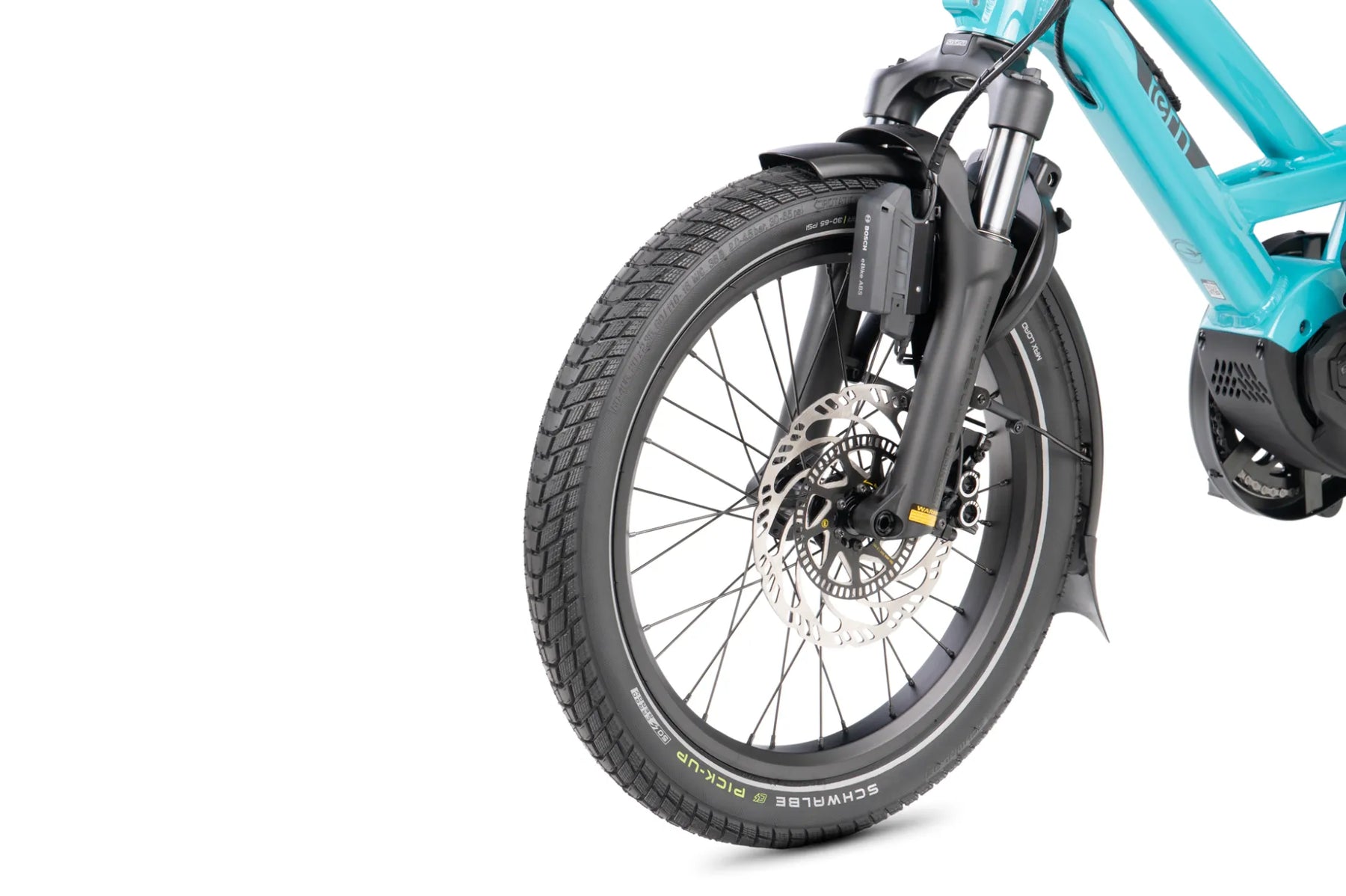

| Fork | Suntour custom for Tern, 1.5" tapered chromoly steerer, 34 mm stanchions, thru-axle, DIN 79010 certified: 210 kg |

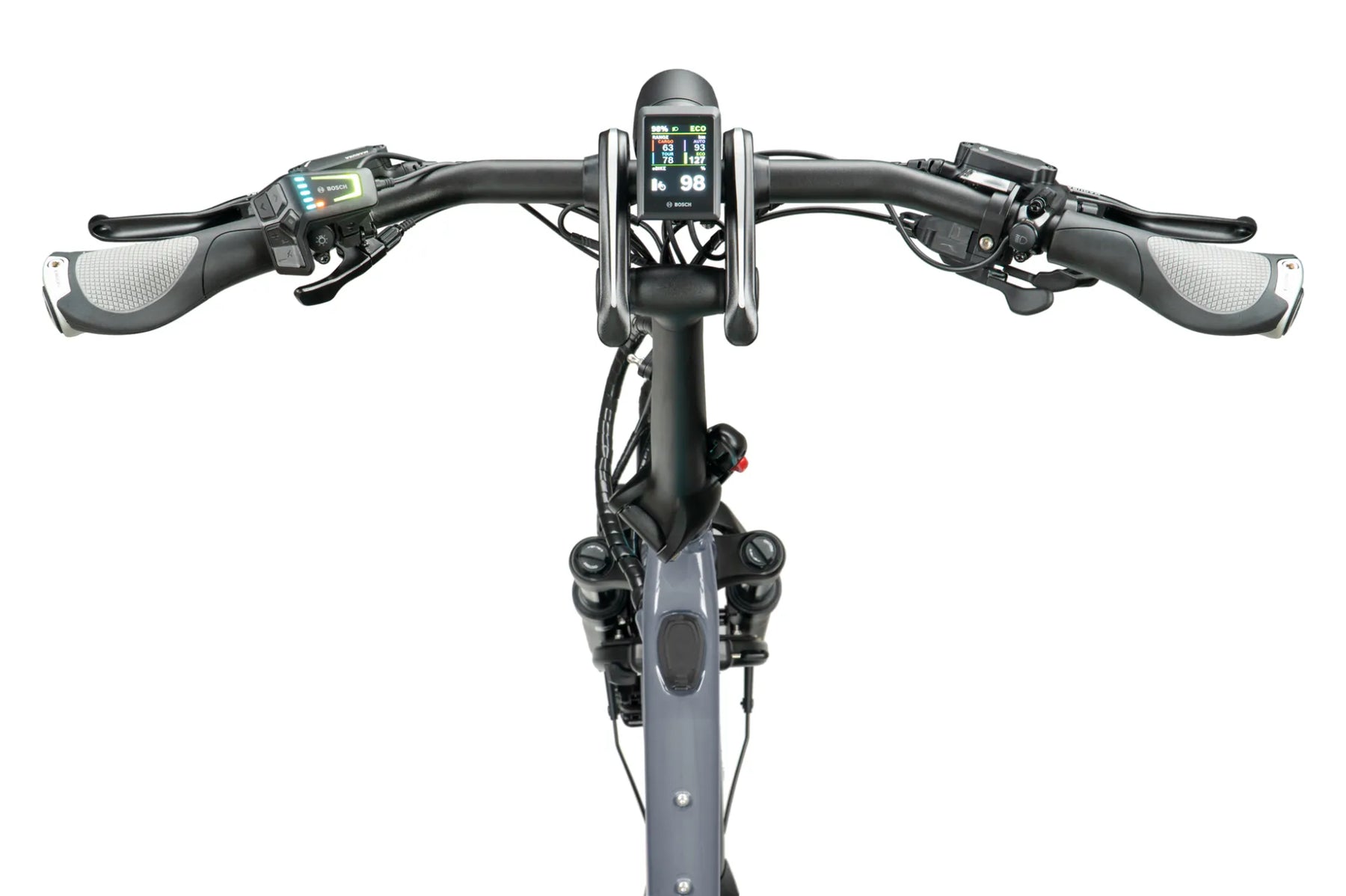

| Cockpit | Tern Physis 3D handlepost, Tern Andros adjustable stem, Tern Sweep handlebar, Tern VLT seatpost with Cane Creek suspension |
| Folding | Folds in 5 seconds; folded size 185 x 46 x 88 cm (72.8 x 18.1 x 34.6 in) |
Drivetrain & Motor
| Motor | Bosch Cargo Line, 250 W nominal, 85 Nm torque, 400% support |
| Battery | Bosch 800 PowerPack, Fast Swap, dual-battery bays, optional 2 x 800 Wh (1600 Wh) max capacity |
| Display | Bosch Kiox 300 color display with LED remote |
| Range | 42-89 mi on 800 Wh; 83-179 mi on 1600 Wh |
| Anti-Lock Braking | Bosch ABS, Gen 2 |
| Shifter | Rohloff E14, electronic 14-speed, 526% gear range |
| Drive | Gates Carbon Drive CDX belt, Gates CDX CNC machined beltring |
Brakes
| Front & Rear | Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor |

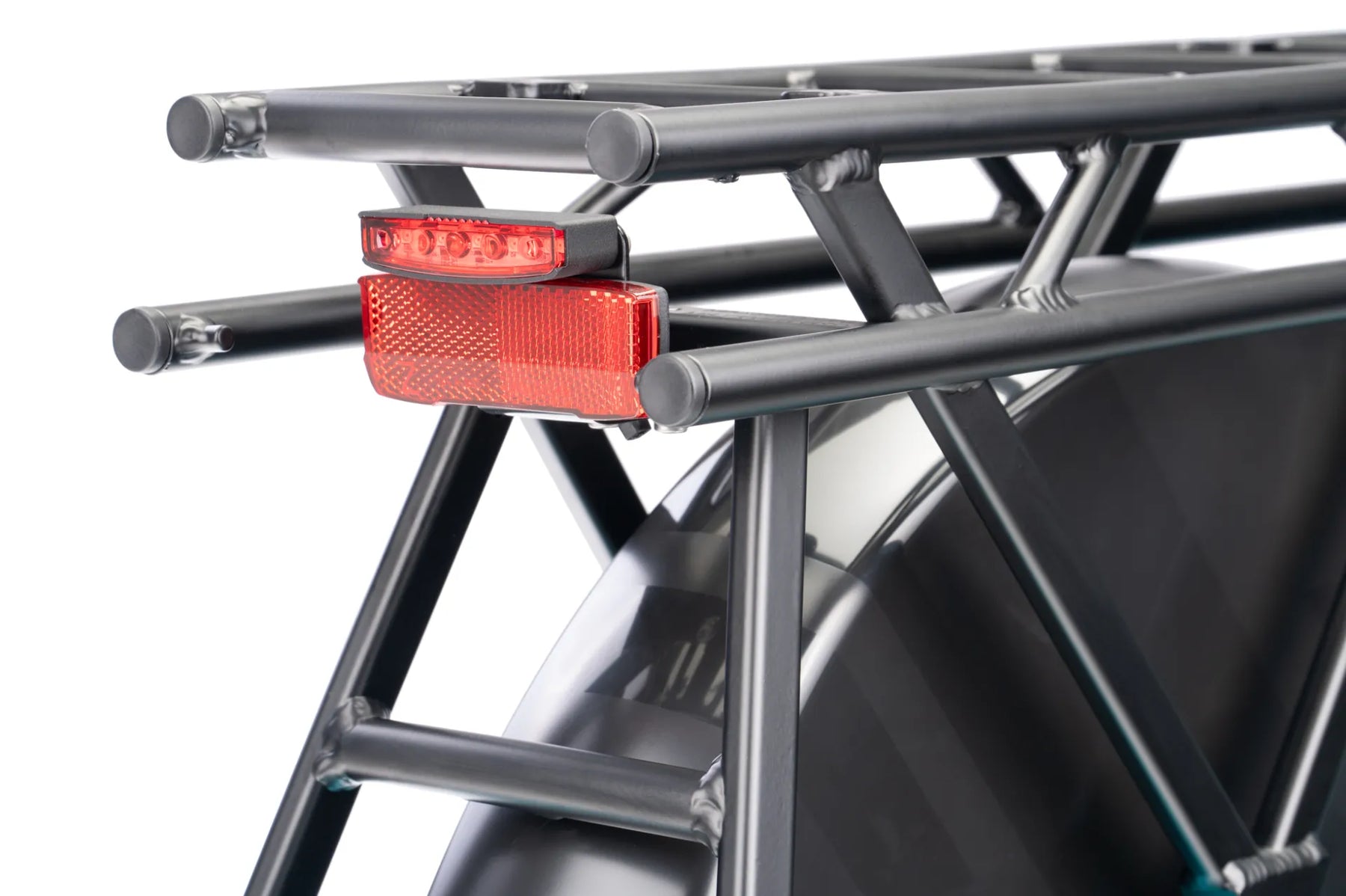

| Levers | Magura MT-C e-stop with brake light sensor |
Wheels & Tires
| Rims | Tern Atlas, ultra-wide 36 mm, dual reinforced joint |
| Front Hub | Tern Atlas with cooling fins, Boost thru-axle |
| Rear Hub | Rohloff E14, 526% range, Boost |
| Tires | Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex |
Capacity & Weight
| Bike Weight | 38.77 kg (85.5 lb) |
| Max Gross Vehicle Weight | 210 kg (463 lb) |
| Max Rider Weight | 130 kg (286.6 lb) |
| Rear Rack Capacity | 100 kg (220 lb) |
| Suggested Rider Height | 153-200 cm (60.2-78.7 in) |
Geometry
| Overall Length | 192 cm (75.6 in) |
| Overall Width | 68 cm (26.8 in) |
| Overall Height | 118 cm (46.5 in) |
| Wheelbase | 136 cm (53.5 in) |
| Standover Height | 49 cm (19.3 in) |
| Seatpost to Handlebar | 49-59 cm (19.3-23.2 in) |
| Saddle to Pedal | 69-105 cm (27.2-41.3 in) |
| Gear Range | 18"-96" (1.45-7.64 m) |
GSD R14 is a one-size-fits-most frame (adjustable cockpit); figures via ternbicycles.com/us/bikes/473/gsd-r14.
