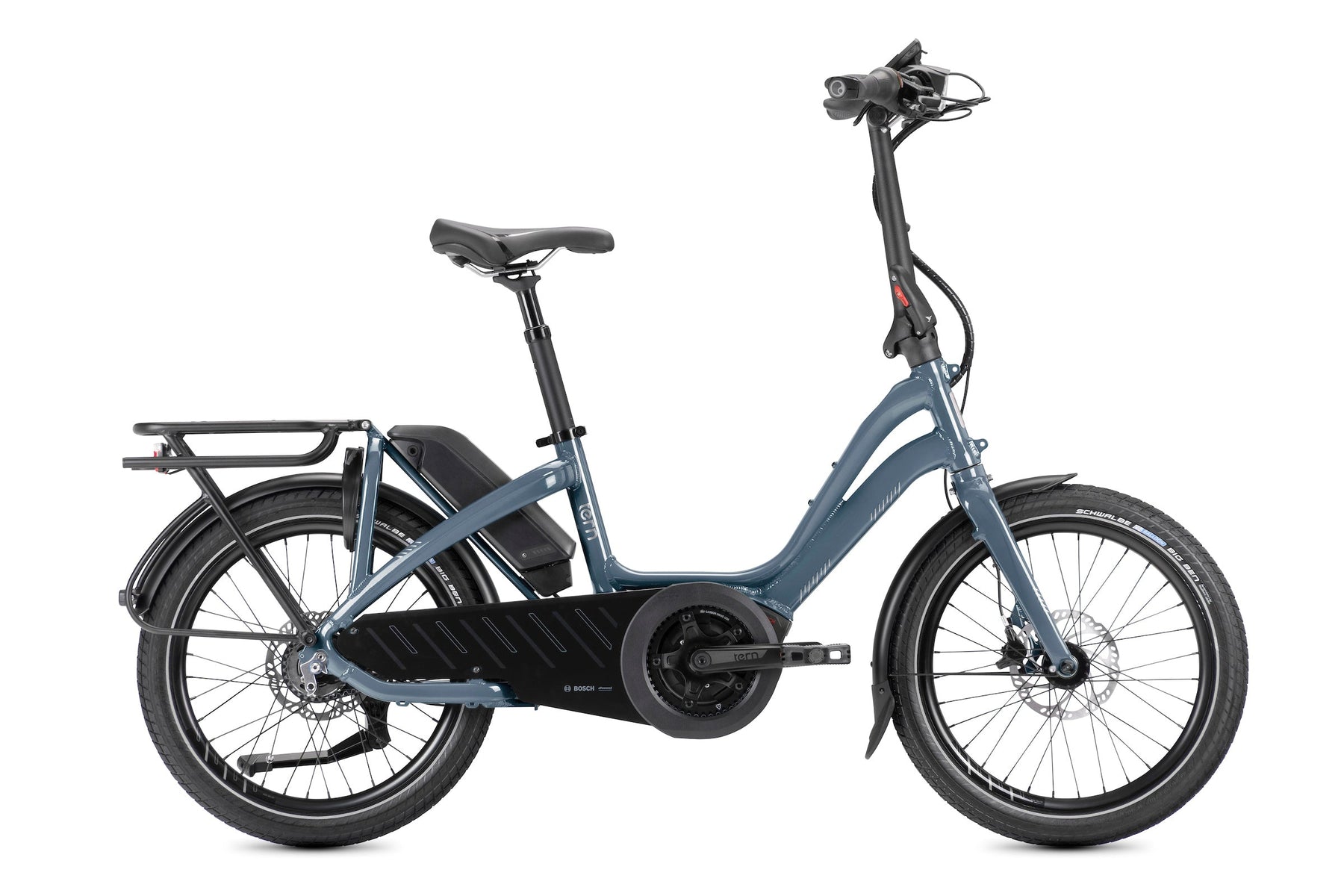

Tern NBD S5i Electric Bike
No reviews
- In stock, ready to ship
- Backordered, shipping soon
NBD S5i Overview
- Bosch Performance Line motor provides up to 65 Nm of torque and 300% support
- Bosch PowerPack 500 powers longer trips, commutes, and journeys
- Gates belt drive for clean, quiet, maintenance-free operation
- Shimano Nexus 5-speed internal hub
- Magura MT4 hydraulic disc brakes for superior stopping power, even when carrying a passenger and riding fast
- Ultra-low 39 cm (15.4") standover height means gentle, low steps are all that's required to get on and go
- Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
- Fits riders 147 - 190 cm (4'10" - 6'3")
- UL 2849 certified Bosch e-bike system & EN 15194 compliant, European standard for Electrically Power Assisted Cycles (EPACs)
Component Specifications
Frame & Build
| Frame | Tern NBD, 6061-AL, patented design, EFBE Tri-Test approved (140 kg) |
| Frame Size | One size |
| Bike Weight | 23.4 kg (51.6 lb) |
Drivetrain & Motor
| Motor | Bosch Performance Line, 65 Nm torque, 300% assist, max 20 mph (US) |
| Battery | Bosch PowerPack 500 Wh |
| Range | 51-118 km (32-74 mi) |
| Display / Control | Bosch Intuzia, 4 selectable modes, walk assist |
| Transmission | Shimano Nexus INTER-5E internal hub, 5-speed |
| Belt Drive | Gates Carbon Drive CDX |
Brakes
| Front & Rear | Magura MT4 hydraulic disc |
Wheels & Tires
| Rims | Kinetix Comp, for disc |
| Tires | Schwalbe Big Apple Performance Line, 55-406 |
Capacity & Weight
| Max Gross Vehicle Weight | 140 kg (308.6 lb) |
| Max Rider Weight | 120 kg (264.6 lb) |
| Rack Capacity | Gaia Rack, 27 kg |
| Suggested Rider Height | 147-190 cm (4'10"-6'3") |
Geometry
No traditional reach/stack/wheelbase/head-tube-angle geometry chart is published for the NBD platform; the dimensions above are the full set of frame/fit measurements Tern publishes.
| Standover Height | 39 cm (15.4 in) |
| Seatpost to Handlebar (Reach) | 45-52 cm (17.7-20.5 in) |
| Saddle to Pedal | 70-100 cm (27.6-39.4 in) |
| Folded Dimensions | 38 x 156 x 79 cm (15 x 61.4 x 31.1 in), 5-second fold |
