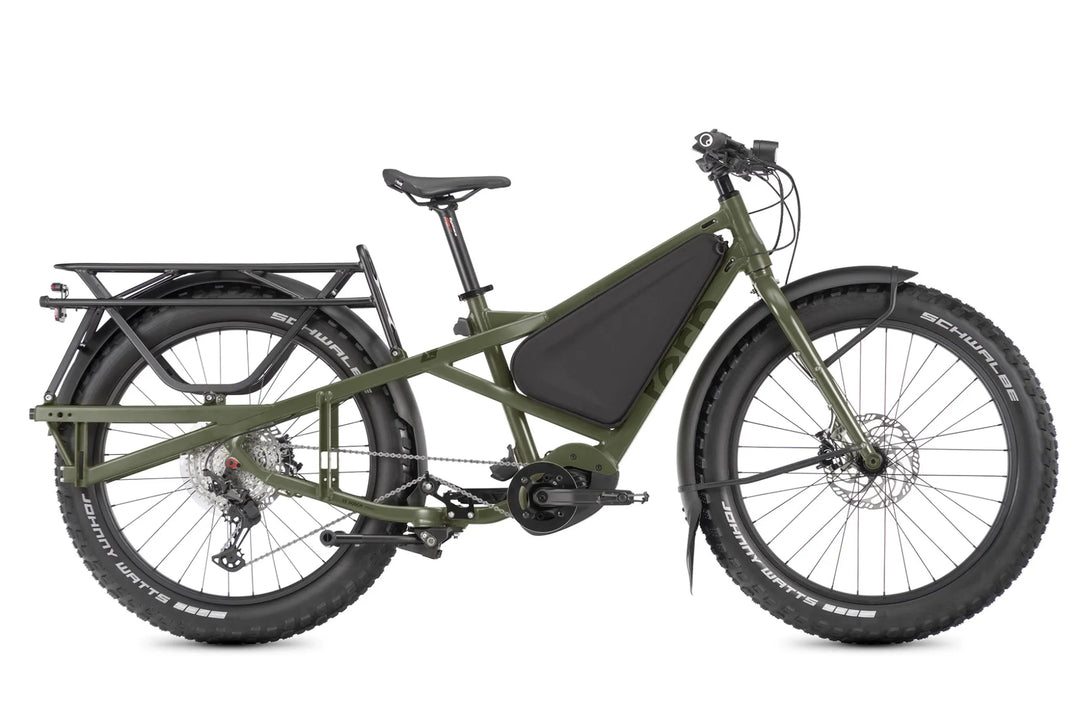

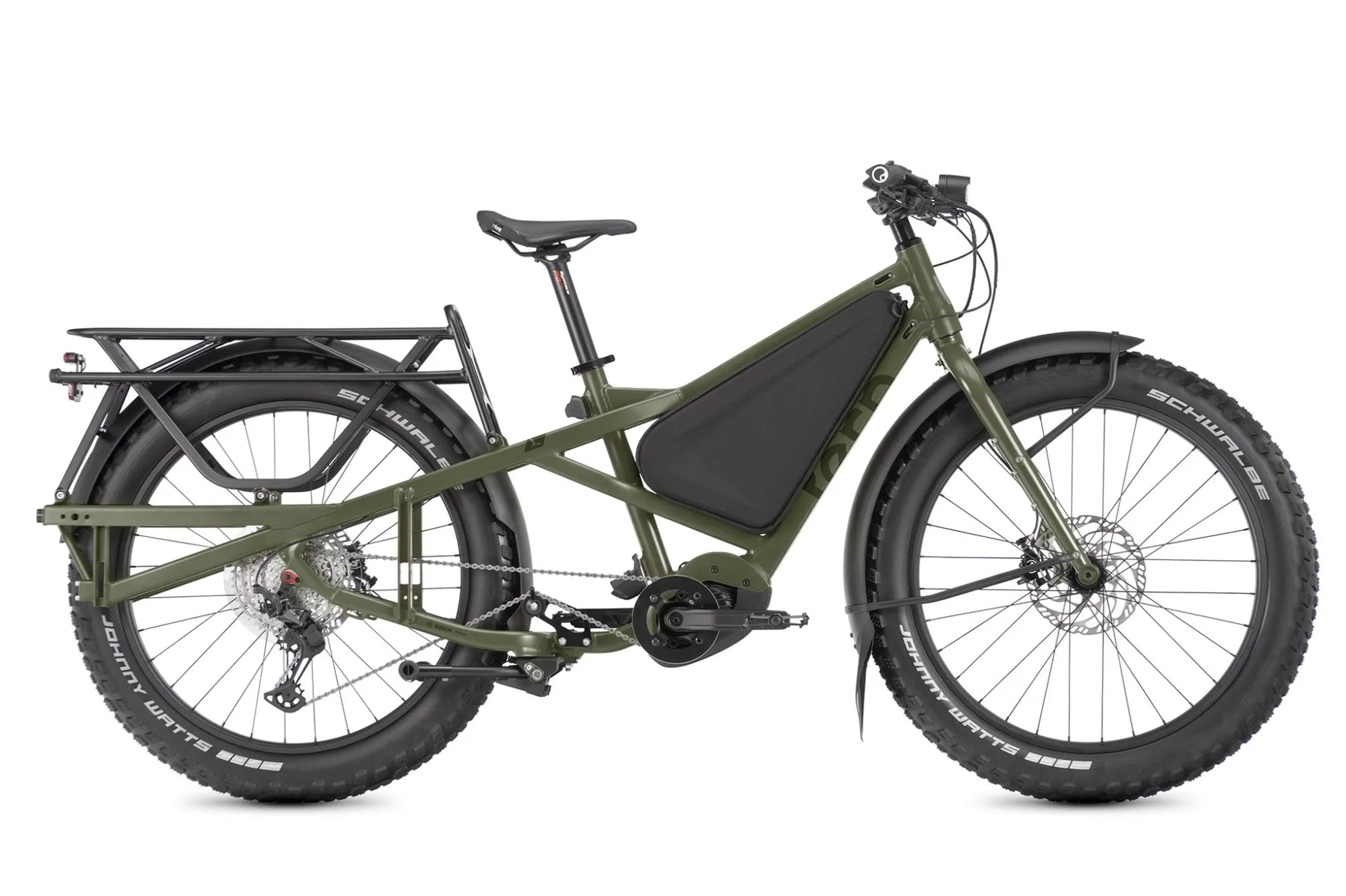

Tern OROX S12
What makes it an S12?
- Shimano Deore XT 1 x 12-speed groupset for fast and precise shifting

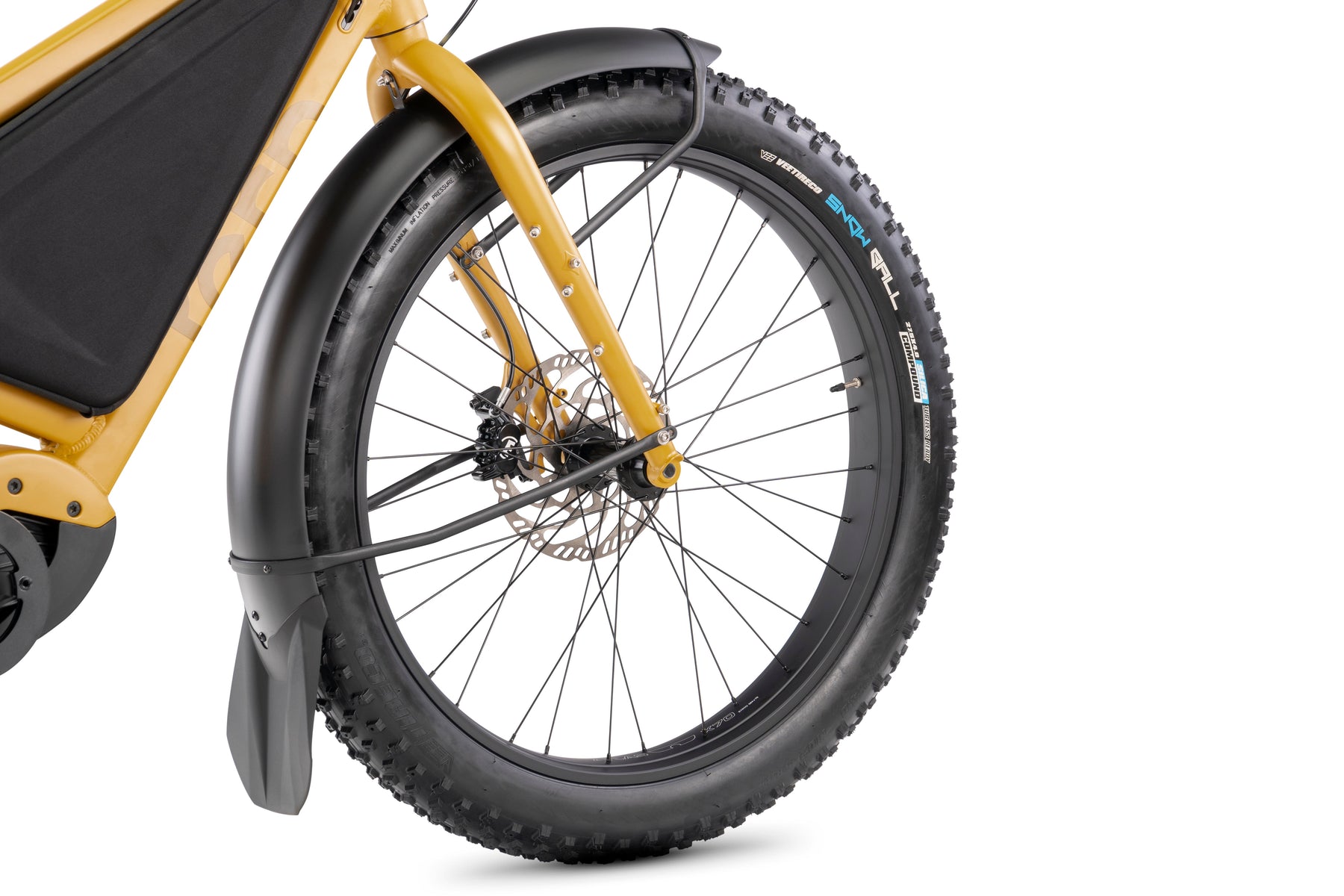

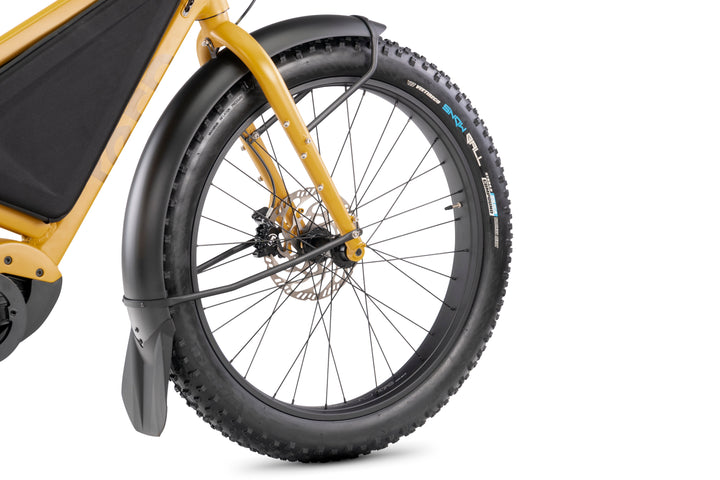

- 27.5" stud-compatible Vee Snowball tires take on even the toughest conditions
Orox highlights

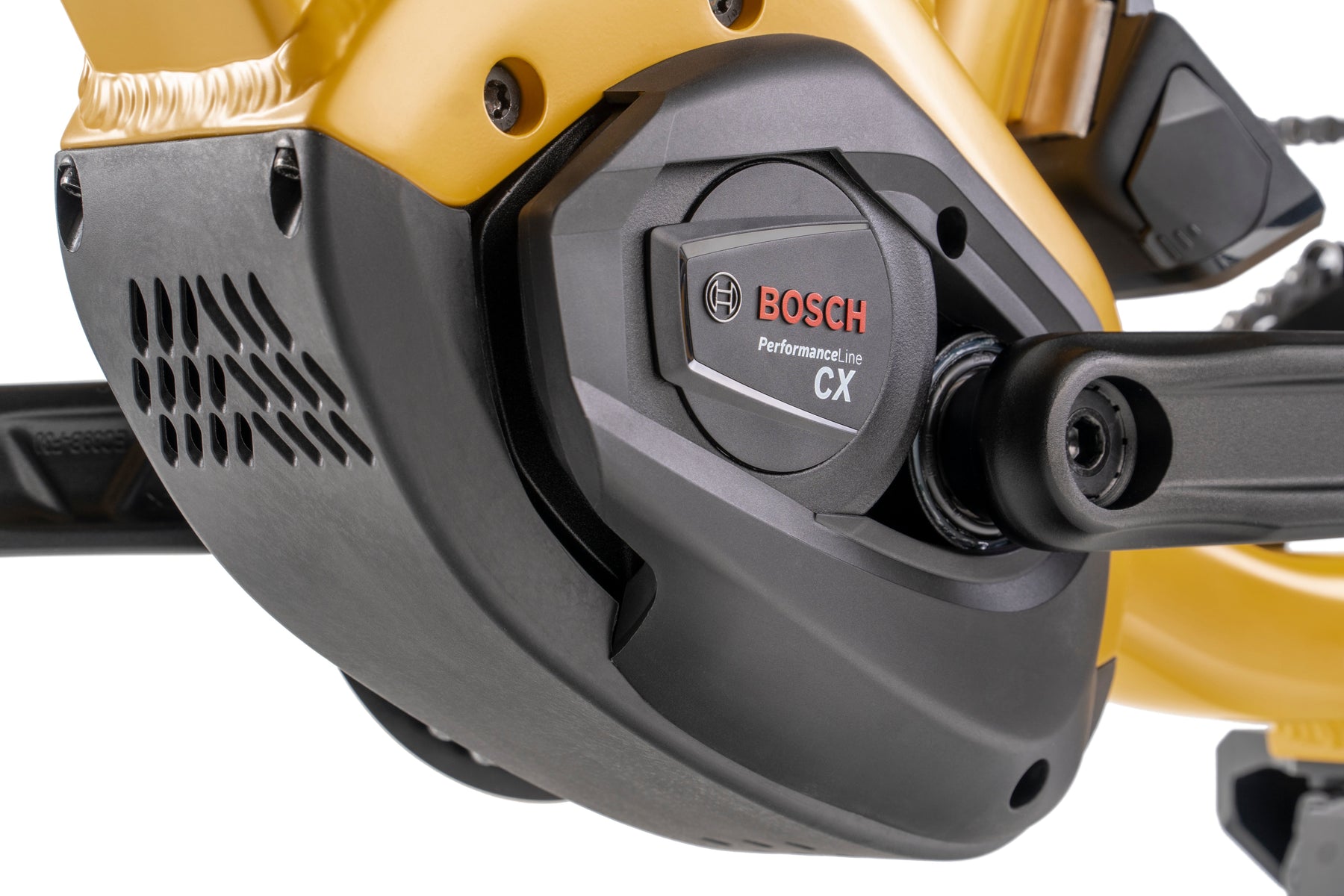

- Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support

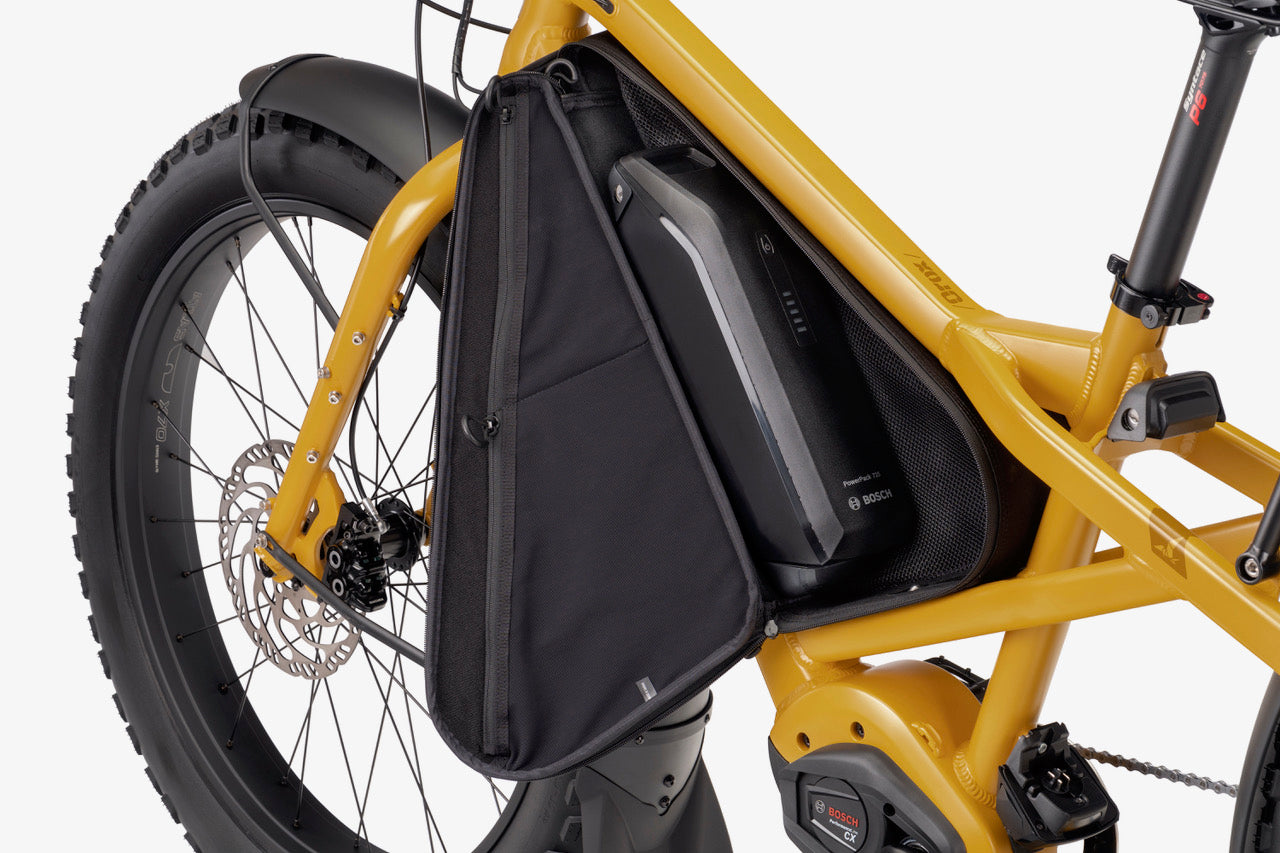

- Dual-battery system draws from up to two batteries for ultra-long range
- Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking

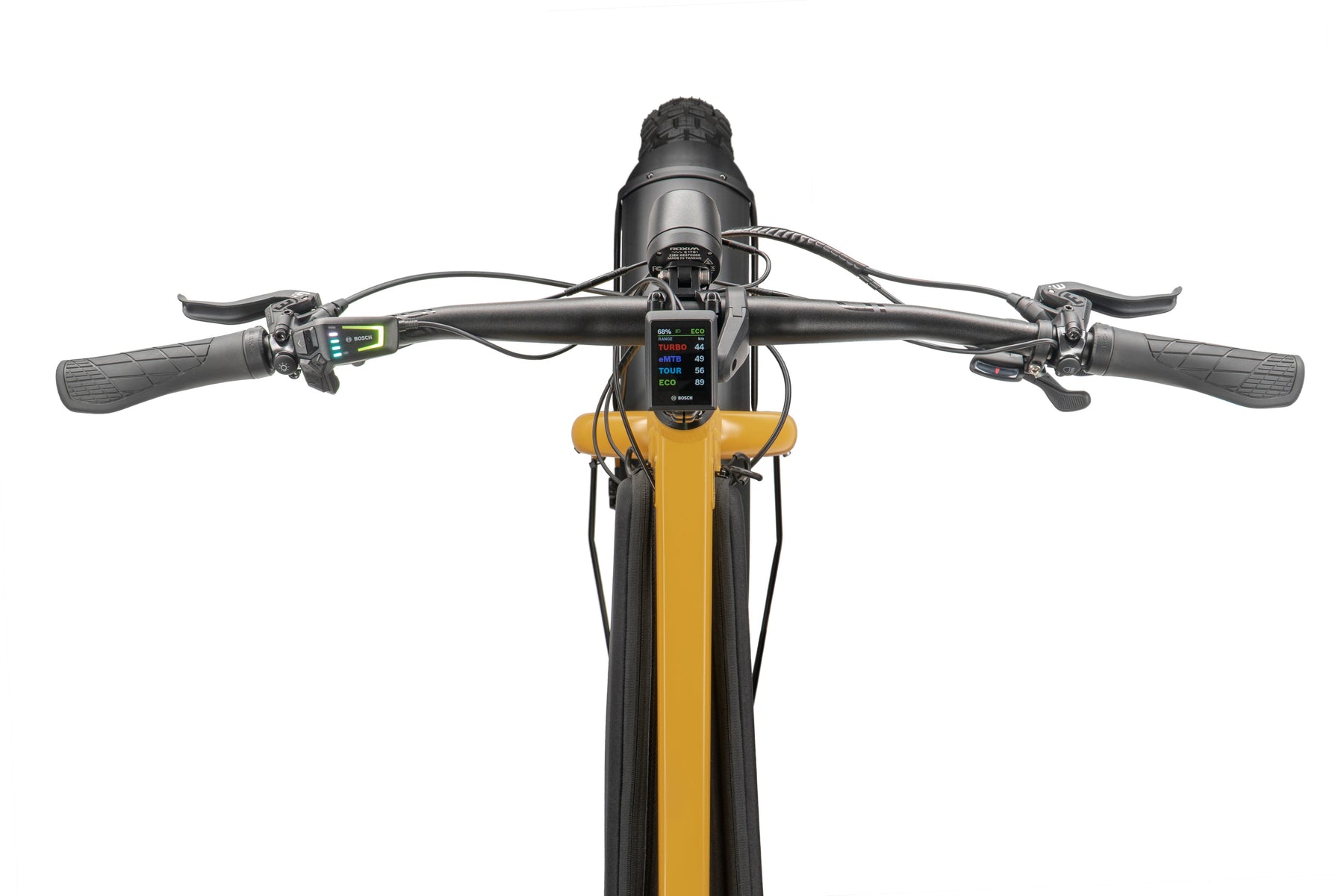

- Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
- Powerful and responsive Magura 4-piston hydraulic brakes
- EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
- Two frame sizes to fit riders 155 - 195 cm (5'1" - 6'5") tall, weighing up to 130 kg (286 lb)
- UL 2849 certified Bosch e-bike system & EN 15194 compliant, European standard for Electrically Power Assisted Cycles (EPACs)
Component Specifications
Frame & Build
| Frame | Tern Orox, 6061-AL, patented design, EFBE tested and approved |
| Fork | Atlas X, butted chromoly steel |
| Cockpit | Level Nine stem (45 mm M / 65 mm L), Level Nine AL-7050 800 mm riser bar, Syntace P6 AL7050 seatpost |
Drivetrain & Motor
| Motor | Bosch Performance Line CX, 85 Nm torque, 340% support |
| Battery | 725/800 Wh single, or 1450/1600 Wh dual |
| Display | Bosch Kiox 300 with LED remote |
| Range | Up to 84-322 km depending on battery configuration |
| Shifter & Derailleur | Shimano Deore, 1 x 12-speed, Shimano Deore XT Shadow+ |
| Cassette | Shimano 10-51T, 12-speed |
| Chain | KMC 12-speed, EPT corrosion resistant |
| Gear Range | 18"-95" (1.48-7.54 m) |
Brakes
| Front & Rear | Magura MT5, 4-piston hydraulic disc, 203 mm rotor |
Wheels & Tires
| Wheels | Tern Atlas X, 27.5", ultra-heavy-duty cargo |
| Tires | Schwalbe Johnny Watts 27.5" x 4" or Vee Snowball 27.5" x 4" (stud-compatible) |
Capacity & Weight
| Bike Weight (Medium) | 37.1 kg (81.8 lb) |
| Max Gross Vehicle Weight | 210 kg (463 lb) on pavement; 180 kg (397 lb) off-road |
| Max Rider Weight | 130 kg (286.6 lb) |

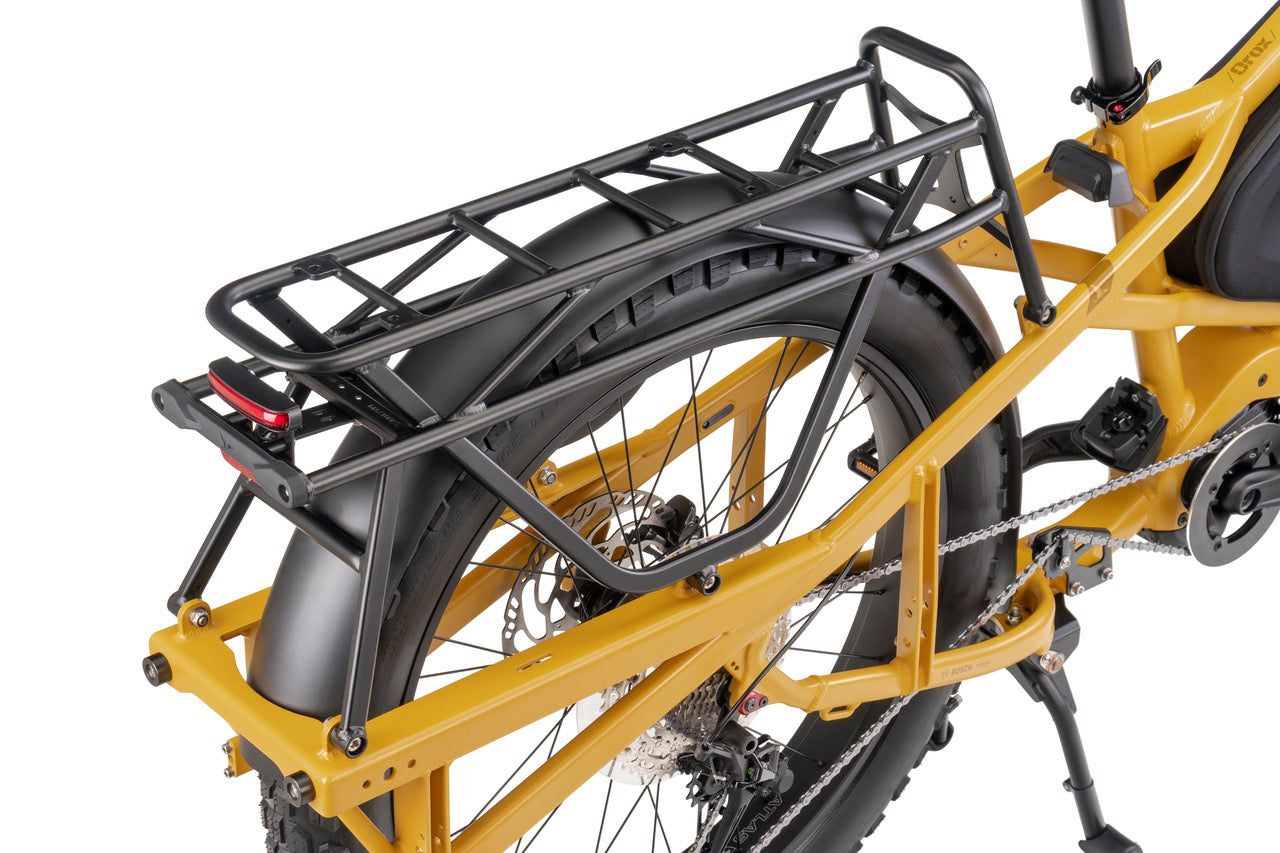

| Rack Capacity | 100 kg (220 lb) |
Geometry
| Dimension | Medium | Large |
|---|---|---|
| Seat Tube | 46 cm (18.1 in) | 50.5 cm (19.9 in) |
| Top Tube | 61 cm (24 in) | 64.5 cm (25.4 in) |
| Stack Height | 62.5 cm (24.6 in) | 65 cm (25.6 in) |
| Wheelbase | 134 cm (52.8 in) | 137 cm (53.9 in) |
| Standover Height | 70 cm (27.6 in) | 70 cm (27.6 in) |
| Seatpost to Handlebar | 61-66 cm (24-26 in) | 67-73 cm (26.4-28.7 in) |
| Saddle to Pedal | 71-99 cm (28-39 in) | 76.5-104.5 cm (30.1-41.1 in) |
| Overall Size | 214 x 82 x 107.5 cm | 218 x 82 x 109.5 cm |
| Suggested Rider Height | 155-185 cm (5'1"-6'1") | 165-195 cm (5'5"-6'5") |
Figures via ternbicycles.com/en/bikes/471/orox-s12-275 (27.5" model).
