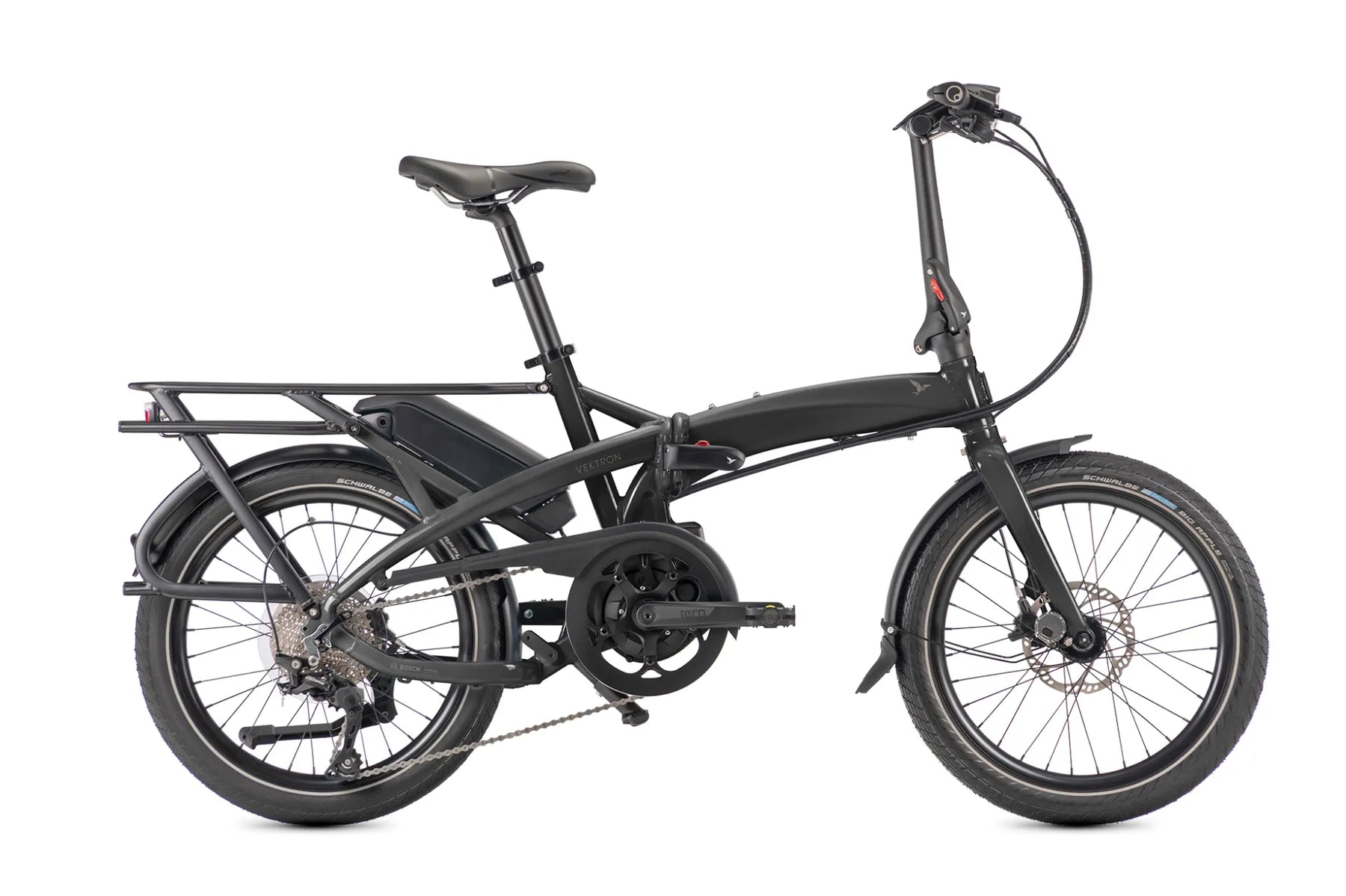

Name: Tern Vektron P10 (Gen 4) Folding E-Bike
Brand: Tern
SKU: 12-9-19
Price: 3699.0 USD
Availability: InStock

$3,699.00

Shipping calculated at checkout.

In stock, ready to ship
Backordered, shipping soon

What makes it a Vektron P10?

Powerful Bosch BES2 Performance motor provides up to 65 Nm of torque and 300% support
Compact & concise Purion display keeps your handlebars sleek and offers easy thumb control
PowerPack 400 battery lets you ride up to 112 km (70 mi) on a single charge
Shimano Deore 1 x 10-speed hub for smooth, efficient shifting across changing terrain

Vektron highlights

Best-in-class Bosch drivetrain ensures efficient, comfortable, and natural-feeling pedal assist
Stiff frame & dialed-in geometry guarantees a ride that outshines many full-sized bikes

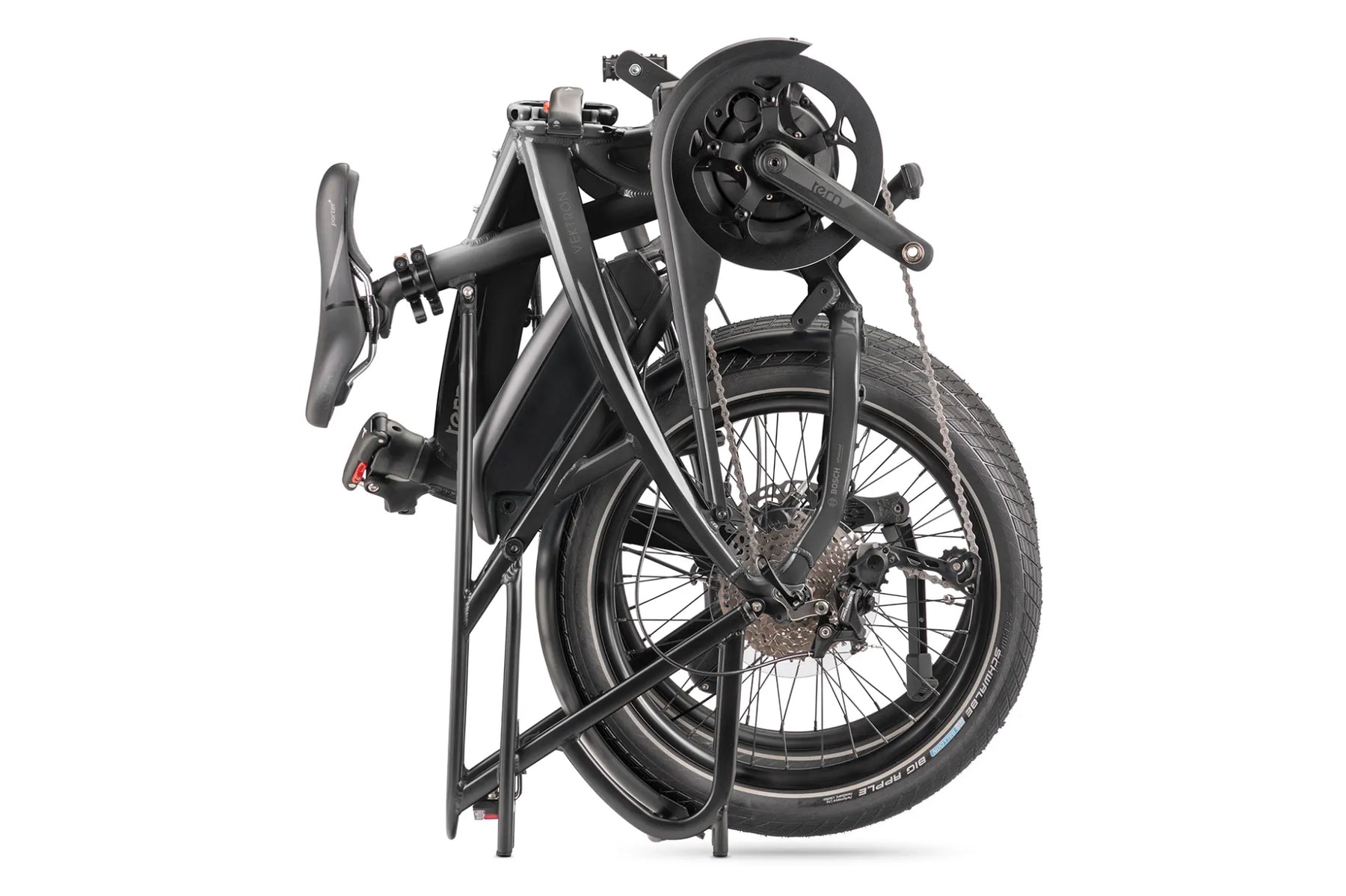

Folds down compact in 10 seconds to fit in cars, trains, and closets
Stands upright and rolls when folded—easy to move, easy to store
Adjustable cockpit resizes in seconds to comfortably fit riders 147 - 195 cm (4’10” - 6’5”)
Hydraulic disc brakes for all-weather stopping power
Atlas V Rear Rack with 27 kg load capacity, compatible with KLICKfix, Racktime SNAPIT 2.0, and Ortlieb Quick-Lock 2.1 & 2.2 systems
UL 2849-certified Bosch battery/motor system & third-party tested in compliance with EN 15194, meeting strict eBike safety standards

Component Specifications

Sourced from Tern's published specifications for the Vektron P10 (Gen 4). Tern builds the Vektron in one universal frame size.

Frame & Build

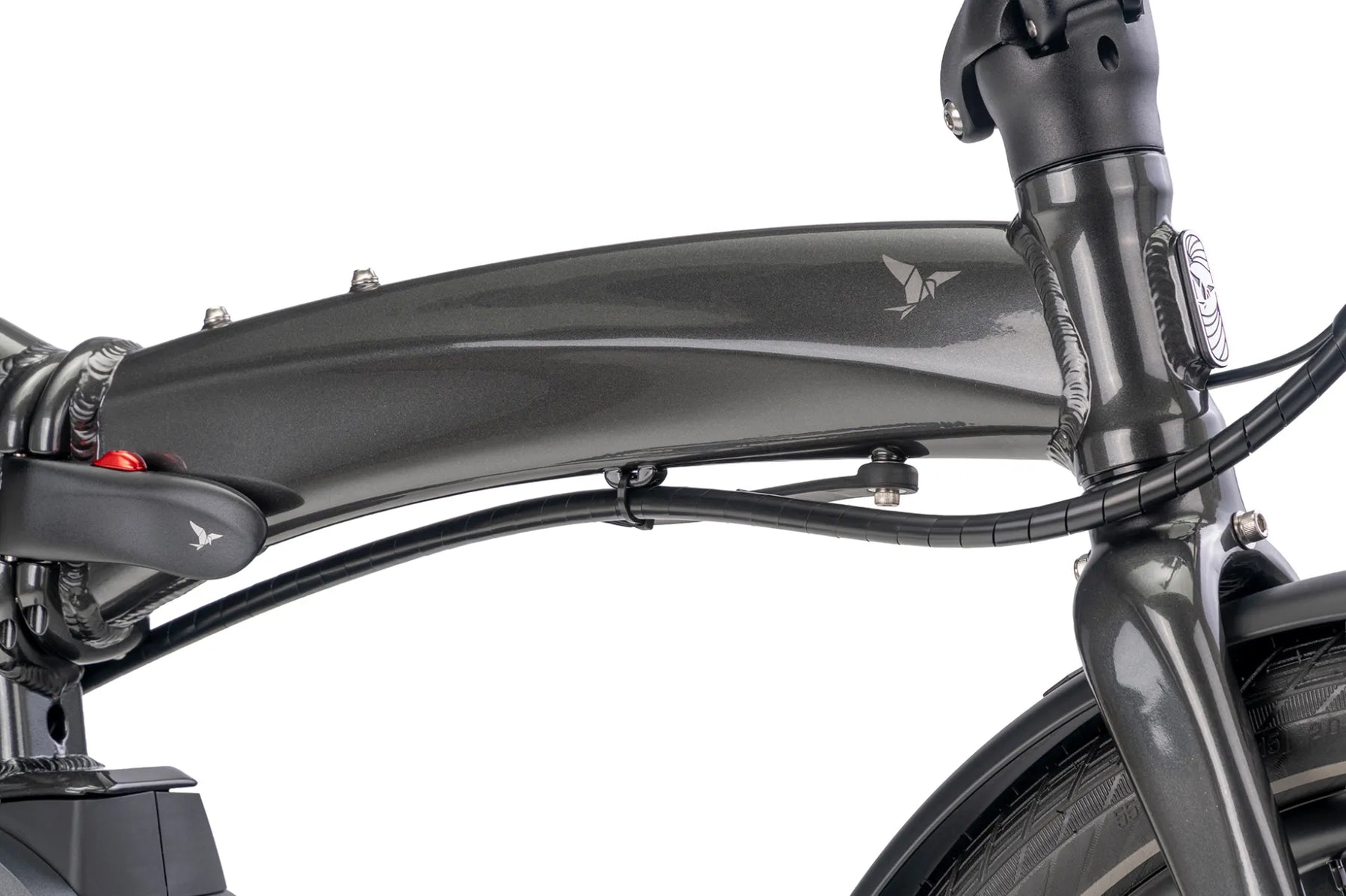

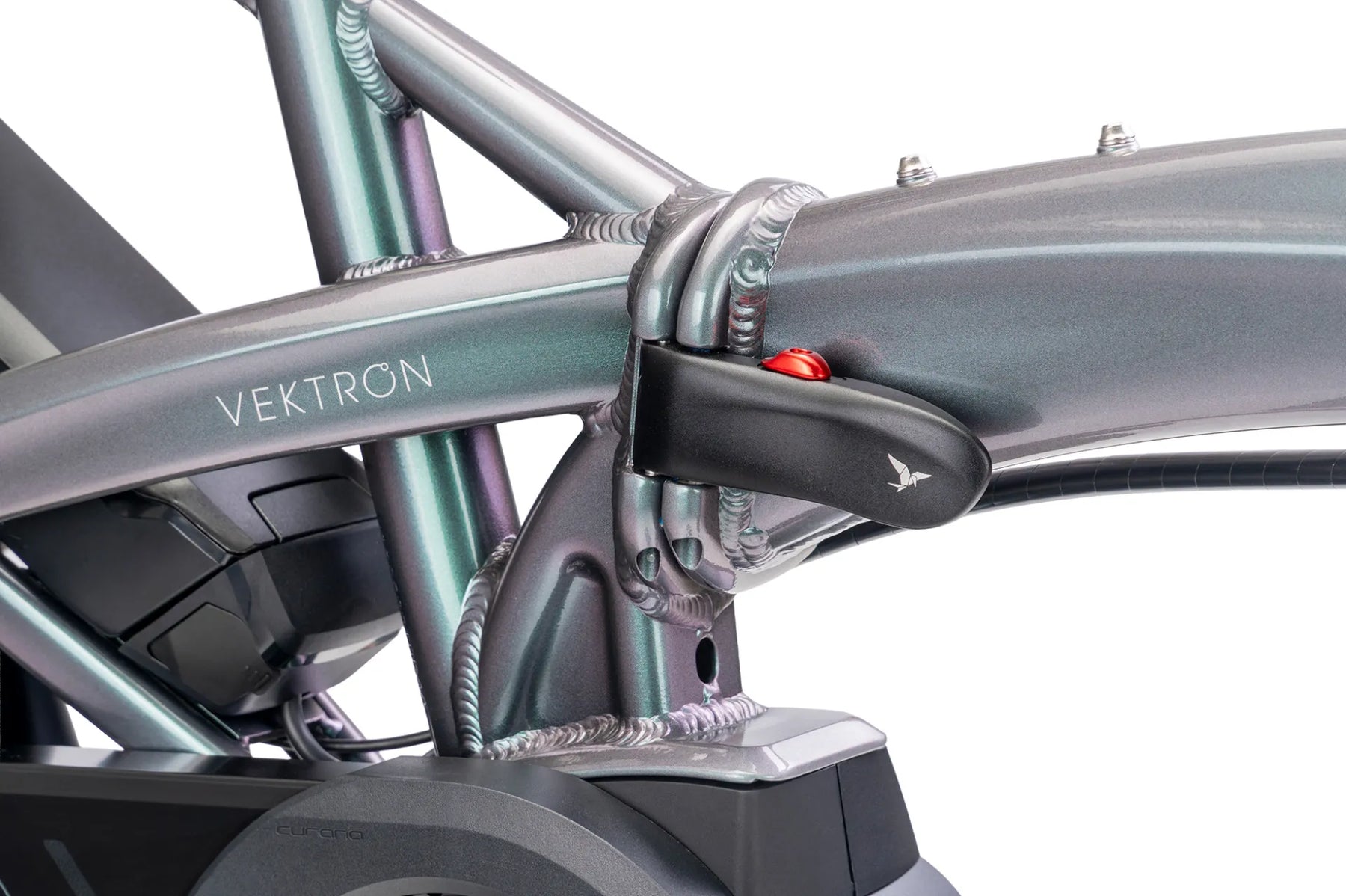

Frame	Tern Vektron, 6061-AL hydroformed aluminum, OCL+ joint (3 patented technologies)
Fork	Tern Tarsus, 6061-AL, hydroformed
Frame Size	One size, fits riders 147–195 cm (4′10″–6′5″)
Weight	22.5 kg (49.6 lb)
Max Gross Vehicle Weight	125 kg (275.6 lb)
Max Rider Weight	105 kg (231.5 lb)

Motor & Battery

Motor	Bosch BES2 Performance — 65 Nm torque, 300% support, max assisted speed 20 mph (28 km/h)
Battery	Bosch PowerPack, 400 Wh
Range	45–112 km (28–70 mi)
Display	Bosch Purion
Charger	100–120V, 4A

Drivetrain

Shifter	Shimano Deore, 1 x 10-speed

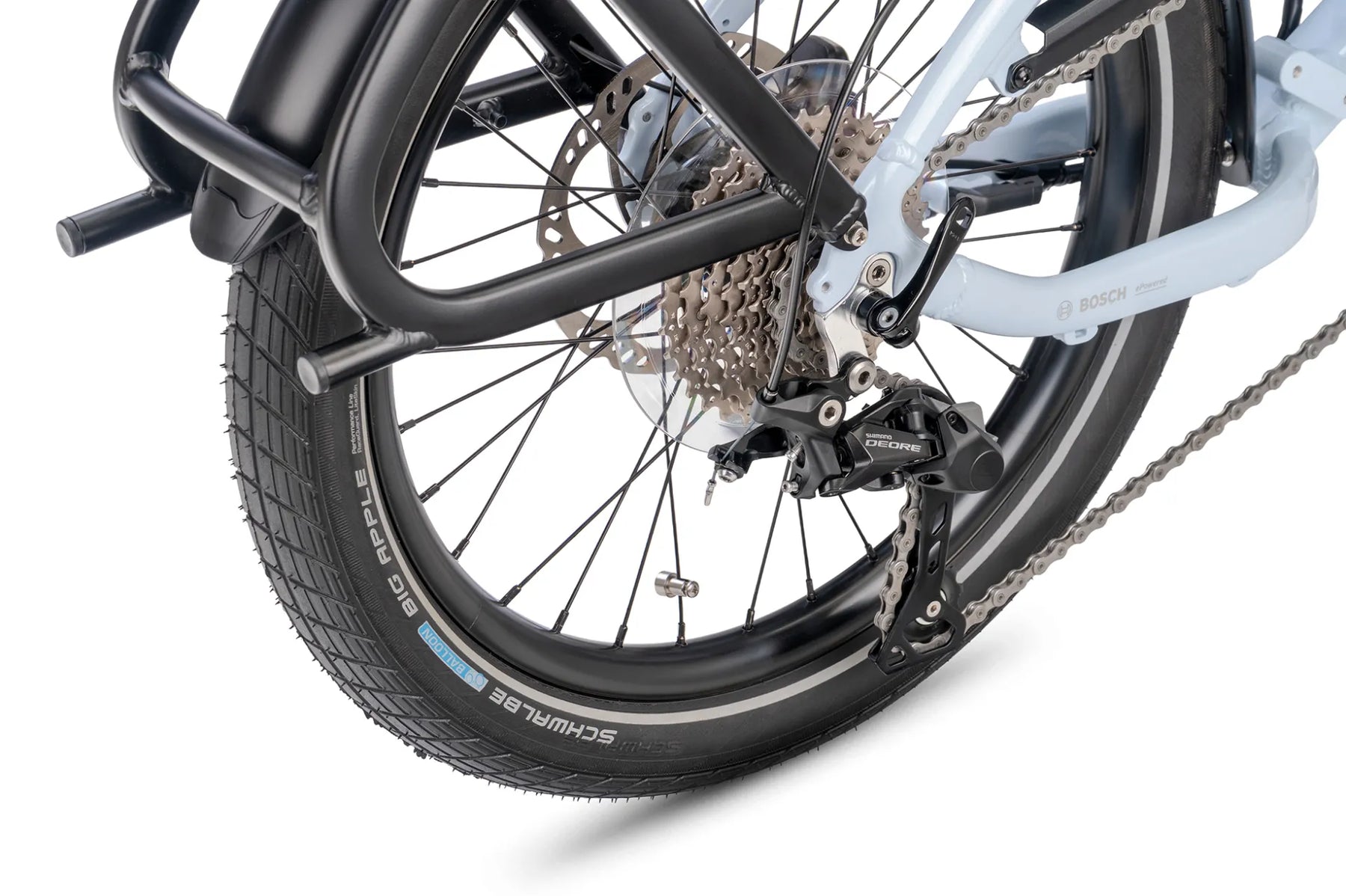

Rear Derailleur	Shimano Deore Shadow+
Cassette	Shimano, 11–36T, 10-speed
Crankset	Tern custom, forged 6061-AL crankarm
Chain	10-speed, DHT for eBike, GST corrosion-resistant coating
Gear Range	30″ – 97″ (2.36 – 7.72 m)

Brakes

Front Brake	Magura MT4, hydraulic disc
Rear Brake	Magura MT4, hydraulic disc

Wheels & Tires

Wheel Size	20-inch (406 mm)
Hubs	Novatec, sealed cartridge bearing, disc
Rims	Kinetix Comp, for disc

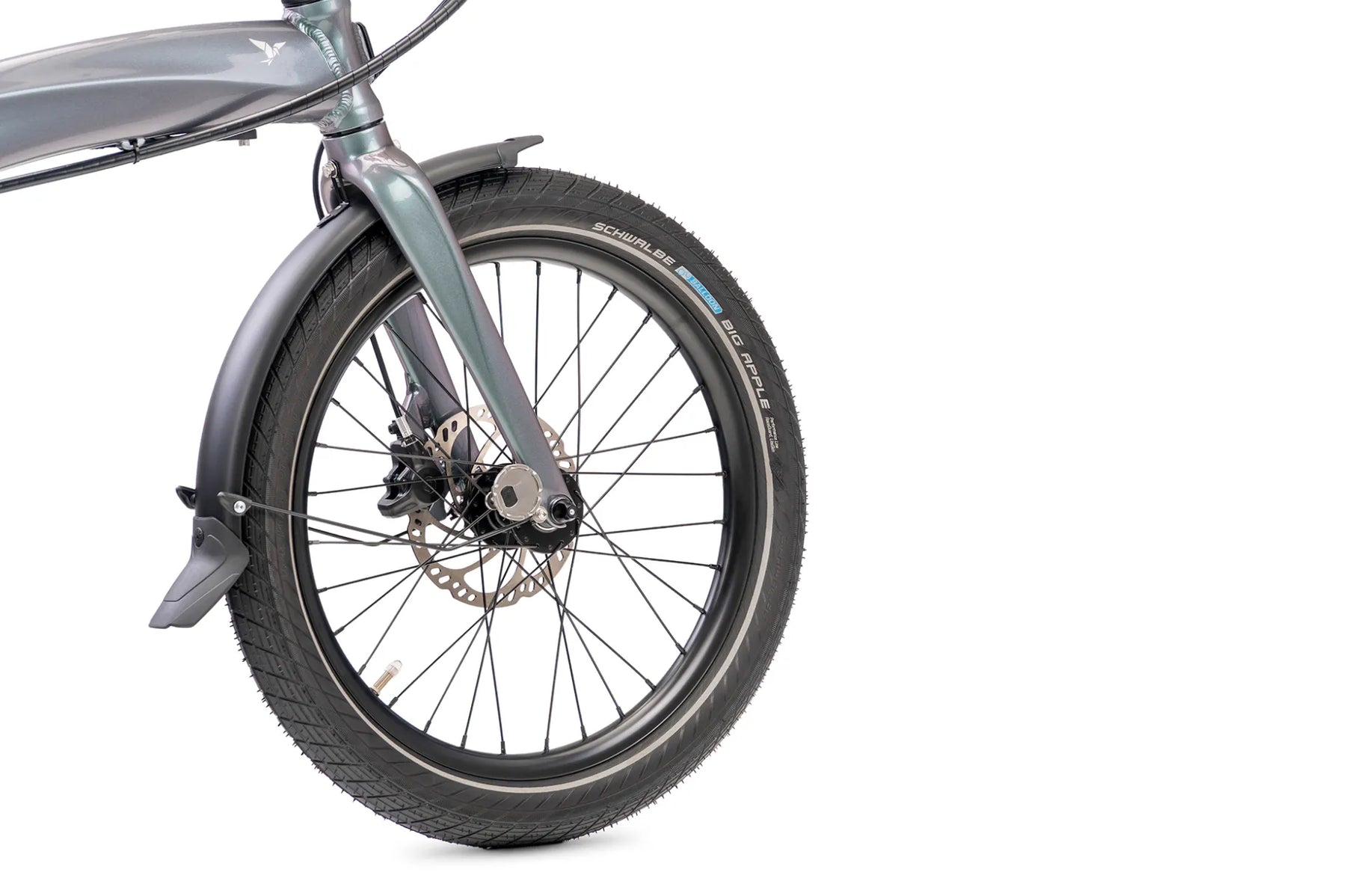

Tires	Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex

Cockpit

Handlepost	Tern Physis 3D, 3D forged, 12°, 320 mm
Stem	Tern Andros, adjustable, forged construction
Saddle	Tern Porter+ by Velo, patented GripPad design, PrimeGel padding
Seatpost	Tern Telescope, 34.9/30.9 mm

Folded Dimensions

Folded Size (L x W x H)	41 x 86 x 68 cm (16.1 x 33.9 x 26.8 in)
Folding Time	10 seconds

Geometry

The Vektron P10 is built in a single universal frame size with an adjustable cockpit rather than multiple frame sizes. Tern does not publish a stack/reach/tube-angle geometry chart for this model — folded dimensions and rider height range above are the published fit data.
